Waterproof Panel Mount Connector

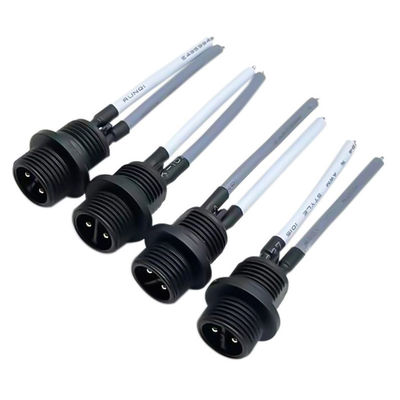

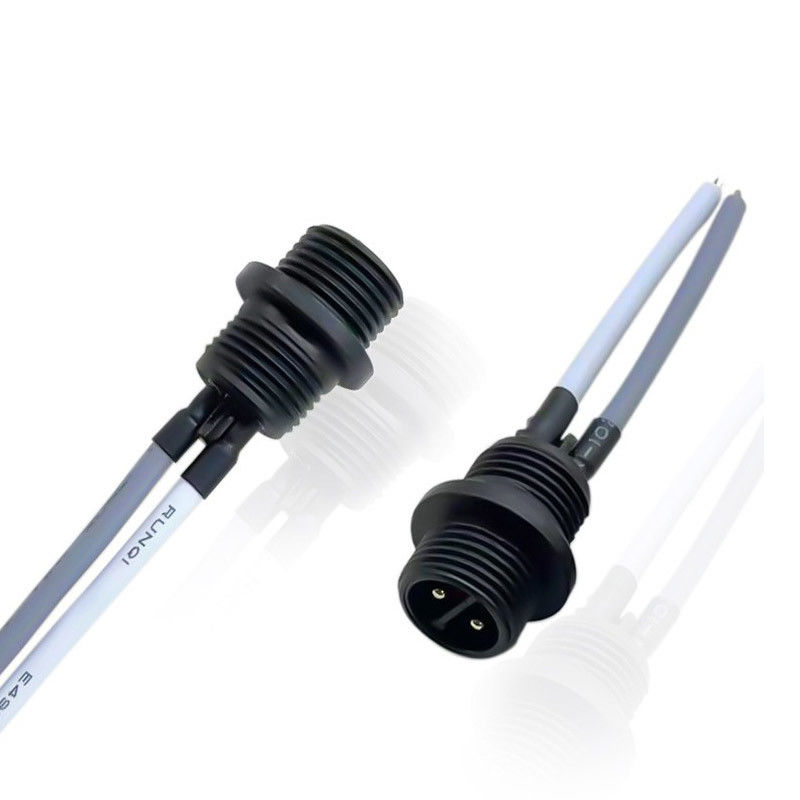

Push Locking M12 Panel Mount Connector 400V Waterproof Rear Panel Connector with Screw Threaded Locking

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

Push Locking M12 Panel Mount Connector 400V Waterproof Rear Panel Connector with Screw Threaded Locking

Brand Name:	Cablein
Model Number:	CB-M12-2P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Connector Size:

M12 Rear Panel Waterproof Panel Mount Connector Welds Electronic Wire Traffic Track Light

Connector Style:

Panel Type

Connection Mode:

Screw Threaded

Connector Locking System:

Screw

Durability:

≥1000 Times

Industrial Electronics:

Accessories

Cable Range:

Connector Type:

Push Locking

Supply Ability:

50000pcs per day

Highlight:

Push Locking M12 Panel Mount Connector

Waterproof M12 Panel Mount Connector

400V Rear Panel Connector

Product Description

Push Locking Waterproof M12 Panel Mount Connector 400V

Professional M12 rear panel waterproof panel mount connector designed for electronic wire and traffic track light applications with superior weather resistance and reliable performance.

Pin Options: 2/3/4/5/7/9/12 Male/Female

Current Rating: 10A Max

Material: PA66 Nylon

Connection Type: Screw-less waterproof connector

Operating Voltage: 400V

Assembly Method: Soldering or screw fitting

UV Resistance: Pass outdoor rating

Cable Jacket OD: 4-9mm

Technical Specifications

Part No.	CB-M12-2P	CB-M12-3P	CB-M12-4P	CB-M12-5P	CB-M12-7P	CB-M12-9P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*
Contact Member - Bonding Wire	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9
Contact Member - Locking Wire	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*
Applicable Wire Gauge	1.5mm² / 16AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	-
Rated Current	15A	5A	5A	-
Rated Voltage	400V AC	250V AC	250V AC	-
Insulation Voltage	2000V AC	1500V AC	1500V AC	-
Contact Impedance	< 3 mΩ	< 5 mΩ	< 5 mΩ	-

Additional Specifications:
Temperature Rise: Varies by model and current load
Insulation Resistance: ≥ 1000 MΩ
Mechanical Life: ≥ 1900 Cycles
Ambient Temperature: -40°C to +85°C
High Temperature Aging: 85°C / 168 hours

Product Advantages

The M12 Rear Panel Waterproof Panel Mount Connector delivers exceptional performance for electronic wire and traffic track light systems. Key advantages include:

Waterproof design ensures reliable operation in harsh weather conditions
Precision welds provide secure connections and prevent wire disconnections
Enhanced stability and longevity for traffic track lighting systems
Easy installation saves time and effort during setup
Excellent signal transmission for smooth electronic wire operation
Durable construction with superior functionality for industrial applications

Applications

Ideal for traffic track lighting systems, outdoor electronic wiring, industrial control systems, and applications requiring reliable waterproof connections in challenging environments.
