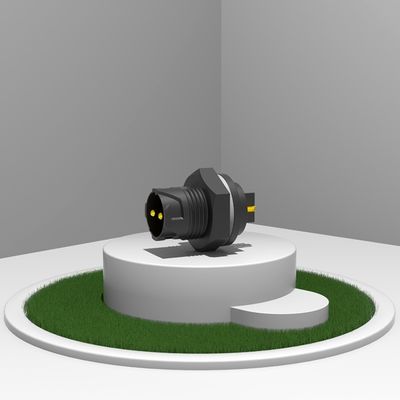

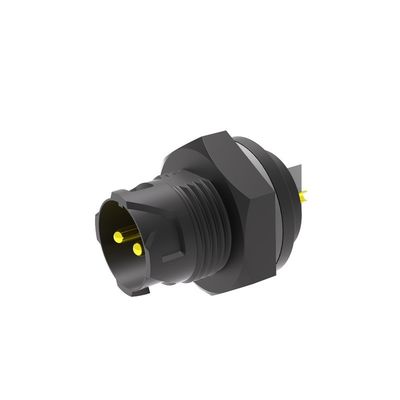

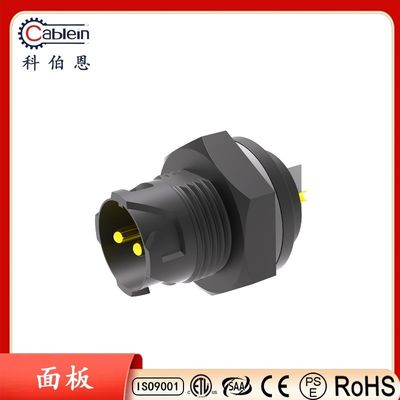

P12 Rear Male Pin IP67 Waterproof Panel Mount Connector Threaded Welded 3 4-Core Socket for Power and Automotive
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now
P12 Rear Male Pin IP67 Waterproof Panel Mount Connector Threaded Welded 3 4-Core Socket for Power and Automotive
  • name
  • name
  • name
  • name

P12 Rear Male Pin IP67 Waterproof Panel Mount Connector Threaded Welded 3 4-Core Socket for Power and Automotive

Brand Name: Cablein
Model Number: CB-P12-FFM01-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
P12 Rear Male Pin Waterproof Panel Mount Connector Threaded Welded 3 4-Core Socket
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
250V
Waterproof:
IP67
Color:
Black
Application:
Power, Automotive, Solar System, PV
Supply Ability:
50000pcs per day
Highlight:

P12 Waterproof Panel Mount Connector

,

Waterproof Panel Mount Connector Threaded

Product Description
P12 Rear Male Pin Waterproof Panel Mount Connector
Product Overview
Threaded welded 3-4 core socket with waterproof panel mount design for reliable electrical connections in demanding environments.
Technical Specifications

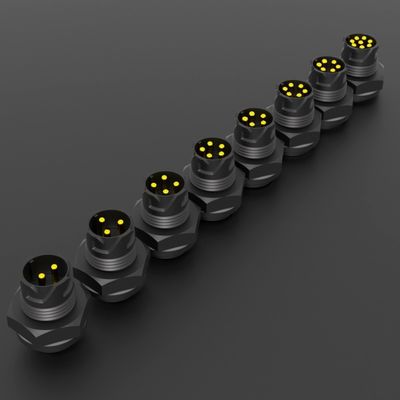

Pin Configuration: 2/3/4/5/2+4/6/8 Pin Male/Female Connector
Current Rating: 8A Maximum
Material: PA6 Nylon
Connection Method: Threaded Panel Type
Operating Voltage: 100V
Assembly Wire: Screw folding or Self Locking
Cable Jacket OD: 4-8 mm²
UV Resistance: Outdoor Rated
Performance Data Sheet
Pins Number 2Pins 3Pins 4Pins 2+3Pins 5Pins 6Pins 8Pins
Rated Voltage 100V 100V 80V 80V 220V 80V 80V
Rated Current 8A 8A 8A 8A+3A 5A 3A 3A
Insulation Voltage 3KV 3KV 1KV 1KV 1KV 1KV 1KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ
IP CODE IP67 IP67 IP67 IP67 IP67 IP67 IP67
Cable Specifications ≤1mm² ≤1mm² ≤1mm² ≤1+0.3mm² 0.5mm² ≤0.2mm² ≤0.2mm²
P12 Rear Male Pin IP67 Waterproof Panel Mount Connector Threaded Welded 3 4-Core Socket for Power and Automotive 0
Key Advantages
  • Waterproof IP67 design ensures reliable performance in harsh and wet environments
  • Threaded and welded mounting provides secure, stable fit resistant to loosening
  • Available in 3 and 4-core options for flexible wiring requirements
  • Rear male pin configuration simplifies installation and enables efficient connections
  • Engineered for durability and superior connectivity in industrial and automotive applications
Technical Drawing
P12 Rear Male Pin IP67 Waterproof Panel Mount Connector Threaded Welded 3 4-Core Socket for Power and Automotive 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer comprehensive waterproof connector series including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T connectors, Y customized connectors, livestock industry connectors, poultry industry connectors, new energy waterproof connectors, and solar system waterproof connectors. Many feature our private molds and custom designs.
How to buy your products?
Contact our sales team online or by email. Please confirm: current rating and number of contacts, assembly style, cable wire gauge, cable length, and shipping method.
How to contact with you?
Provide us with your email, phone number, Skype or WhatsApp ID. Our professional sales and R&D team with over 8 years of industry experience can quickly understand and solve your technical requirements.
Can I get samples?
Yes, we provide samples with freight cost coverage. Please provide your courier number and detailed address for immediate sample dispatch.
