Waterproof Panel Mount Connector

Self-Locking P20-2/3 Front Core Waterproof Panel Mount Connector for Outdoor LED Lighting

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

Self-Locking P20-2/3 Front Core Waterproof Panel Mount Connector for Outdoor LED Lighting

Brand Name:	Cablein
Model Number:	CB-P20-3P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Connector Size:

Self-Locking P20-2/3 Front Core Waterproof Panel Mount Connector Of LED Outdoor Lighting

Connector Style:

Straight

Connection Mode:

Screw Threaded

Application:

Power,Solar System, Outdoor Led Lighting

Durability:

≥1000 Times

Industrial Electronics:

Accessories

Cable Range:

6-10mm

Connector Type:

Push Locking

Supply Ability:

50000pcs per day

Highlight:

P20 Waterproof Panel Mount Connector

Outdoor Waterproof Panel Mount Connector

Self Locking Outdoor LED Light Connectors

Product Description

P20 2/3 Front Core Waterproof Panel Mount Connector

Self-locking outdoor LED light connectors designed for reliable performance in harsh environmental conditions.

Product Specifications

Pin Configuration: 2/3/4/5/7/9/12 Male/Female Connector

Current Rating: 25A Max

Material: PA66 Nylon

Connection Type: Screw-less waterproof connector

Operating Voltage: 380V

Assembly Method: Soldering or screw fitting

Outdoor UV Resistance: Certified

Cable Jacket OD: 4-9mm

Technical Datasheet

Part No.	CB-LP20-2P	CB-LP20-3P	CB-LP20-4P	CB-LP20-5P	CB-LP20-7P	CB-LP20-9P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*
Contact Member - Bonding Wire	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9
Contact Member - Locking Wire	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*
Applicable Wire Gauge	1.5mm² / 16AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG
Rated Current	15A	5A	5A	5A	5A	5A
Rated Voltage	400V AC	250V AC	250V AC	250V AC	250V AC	250V AC
Insulation Voltage	2000V AC	1500V AC	1500V AC	1500V AC	1500V AC	1500V AC
Contact Impedance	< 3 mΩ	< 5 mΩ	< 5 mΩ	< 5 mΩ	< 5 mΩ	< 5 mΩ

Temperature Rise: 20A 30℃↓; 25A 40℃↓; 30A 50℃↓

Insulation Resistance: ≥ 1000 MΩ

Mechanical Life: ≥ 1900 Times

Ambient Temperature: -40℃ to +85℃

High Temperature Aging: 85℃ / 168h

Key Advantages

Excellent waterproofing ensures reliable performance in harsh outdoor conditions
Self-locking mechanism provides secure and stable connections
Durable PA66 Nylon construction guarantees long-term usage
Easy installation process saves time and effort
Ideal for street lights, landscape lighting, and garden lighting applications
Minimizes maintenance and replacement costs

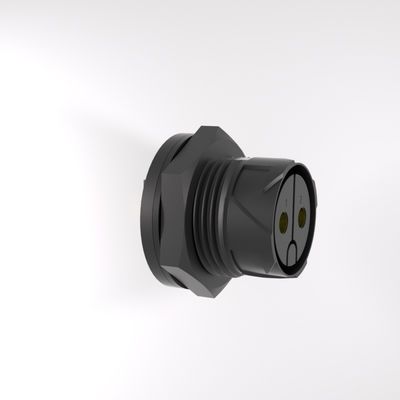

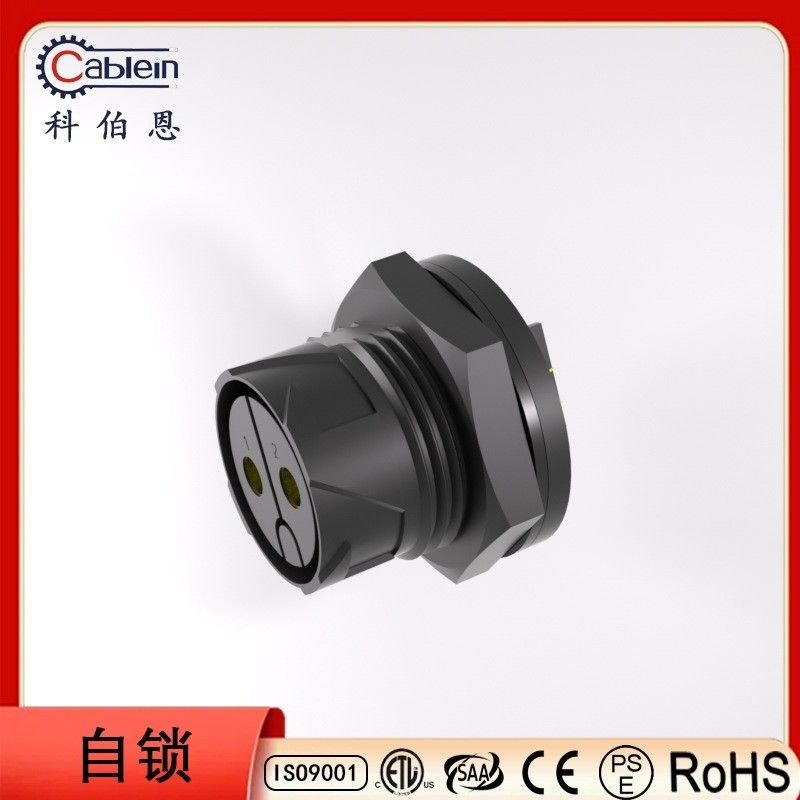

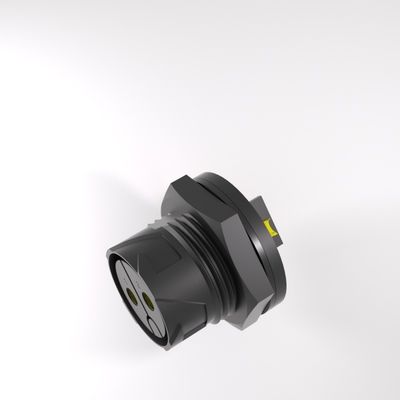

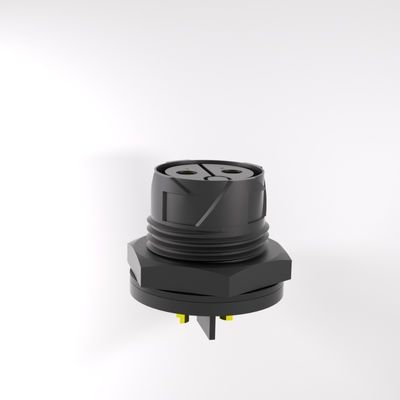

Product Images

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, assembly waterproof connectors, over-mold connectors, T-connectors, Y-customized connectors, and specialized connectors for livestock/poultry industries and new energy applications including solar systems.

How to buy your products?

Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.

How to contact with you?

Please provide your email, phone number, Skype or WhatsApp ID. Our professional sales and R&D team with over 8 years of industry experience is ready to assist with any questions or technical requirements.

Can I get samples?

Yes, we provide samples. You only need to pay the freight cost. Please provide your courier number and detailed address for immediate sample shipment.
