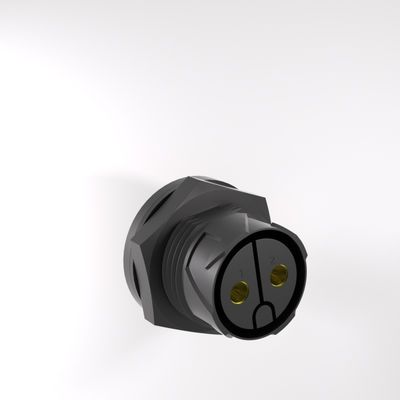

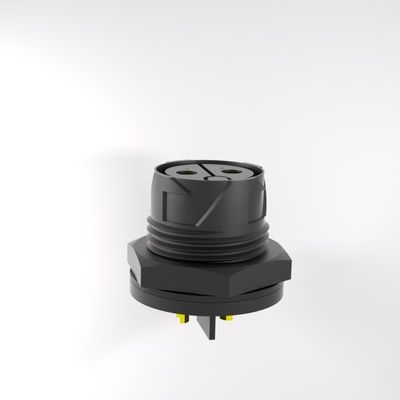

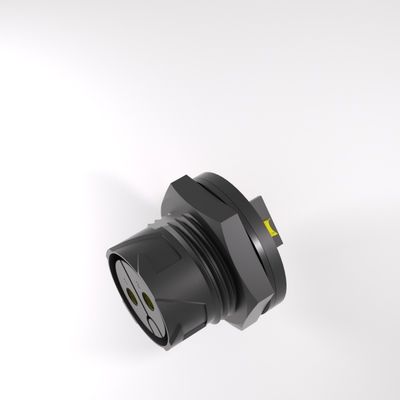

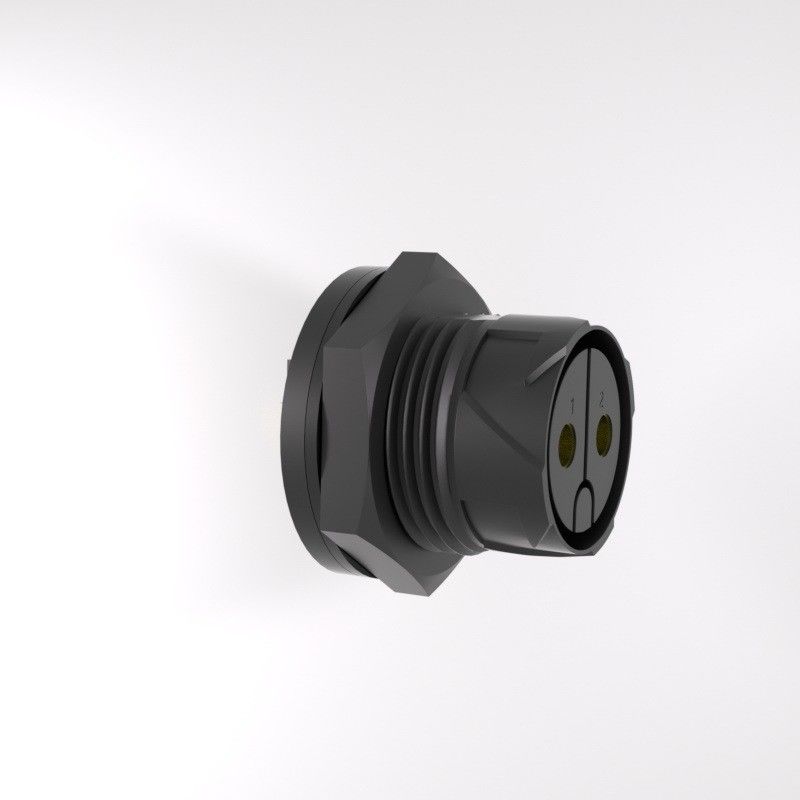

Waterproof Panel Mount Connector

Self Locking 400V Waterproof Panel Connector with Front Mounted Female Pin for Secure Electrical Connections

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

Self Locking 400V Waterproof Panel Connector with Front Mounted Female Pin for Secure Electrical Connections

Brand Name:	Cablein
Model Number:	CB-P20-2P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Connector Size:

Self Locking Waterproof Panel Connector P20-2/3 Core Front Mounted Female Pin

Connector Style:

Panel Type

Connection Mode:

Screw Threaded

Contact Material:

Brass Plated Metal

Durability:

≥1000 Times

Industrial Electronics:

Accessories

Operating Temperature:

-40°C To 105°C

Connector Type:

Push Locking

Supply Ability:

50000pcs per day

Highlight:

Self Locking Waterproof Panel Connector

400V Waterproof Panel Connector

Product Description

Self Locking 400V Waterproof Panel Connector P20-2/3 Core Front Mounted Female Pin

Product Overview

High-performance waterproof panel connector with self-locking mechanism, designed for industrial applications requiring reliable electrical connections in challenging environments.

Key Specifications

Pin Configuration: 2/3/4/5/7/9/12 Male/Female

Current Rating: 10A Max

Material: PA66 Nylon

Connection Type: Screw-less waterproof

Operating Voltage: 400V

UV Resistance: Outdoor rated

Wire Assembly: Soldering or screw fitting

Cable OD Range: 4-9mm

Technical Datasheet

Part No.	CB-P20-2P	CB-P20-3P	CB-P20-4P	CB-P20-5P	CB-P20-7P	CB-P20-9P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin
Bonding Wire	√	√	√	√	√	√
Locking Wire	√	√	√	√	*	*
Bonding Contact	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9
Locking Contact	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*

Performance Specifications

Parameter	1.5mm² / 16AWG	0.5mm² / 20AWG	0.5mm² / 20AWG
Rated Current	15A	5A	5A
Rated Voltage	400V AC	250V AC	250V AC
Insulation Voltage	2000V AC	1500V AC	1500V AC
Contact Impedance	< 3 mΩ	< 5 mΩ	< 5 mΩ
Temperature Rise	20A 30℃↓;25A 40℃↓;30A 50℃↓	10A 30℃↓;15A 40℃↓;20A 50℃↓	5A 30℃↓;7A 40℃↓;10A 50℃↓

Insulation Resistance: ≥ 1000 MΩ

Mechanical Life: ≥ 1900 Cycles

Ambient Temperature: -40℃ to +85℃

High Temp Aging: 85℃ / 168 hours

Product Features

The Self Locking Waterproof Panel Connector P20 series offers exceptional reliability for demanding industrial applications with its innovative design features.

Self-Locking Mechanism: Ensures secure connections that resist vibration and accidental disconnection
Waterproof Design: IP67 rated protection against moisture, dust, and environmental contaminants
Durable Construction: PA66 nylon material provides excellent mechanical strength and UV resistance
Versatile Installation: Front-mounted design with multiple wiring options for flexible integration

Applications

Ideal for various industrial and outdoor applications requiring reliable waterproof electrical connections:

Industrial control panels and automation systems
Outdoor lighting and electrical equipment
Solar energy systems and micro inverters
Agricultural and livestock equipment
Marine and automotive applications
HVAC and building automation systems

Frequently Asked Questions

What types of waterproof connectors do you offer?

We provide a comprehensive range of waterproof connectors including P16 Self-Locking Injection types, assembly connectors, over-mold connectors, T-connectors, Y-connectors, and specialized solutions for livestock, poultry, and new energy applications. Many feature custom molds and tailored designs.

How do I purchase your products?

Contact our sales team with the following specifications:

Current rating and number of contacts required
Preferred assembly style
Cable wire gauge specifications
Cable length and shipping preferences

How can I contact your team?

Reach us via email, phone, Skype, or WhatsApp. Our experienced team with over 8 years in the industry provides professional sales and R&D support to quickly address your technical requirements and application challenges.

Are samples available?

Yes, we provide samples with freight costs covered by the customer. Please provide your courier account details and shipping address for prompt sample delivery.
