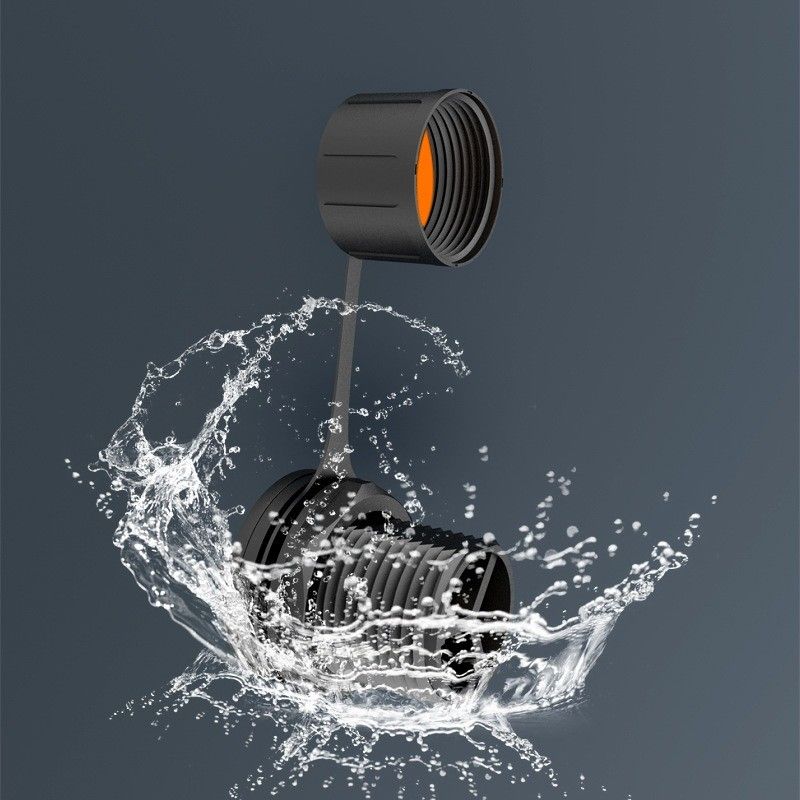

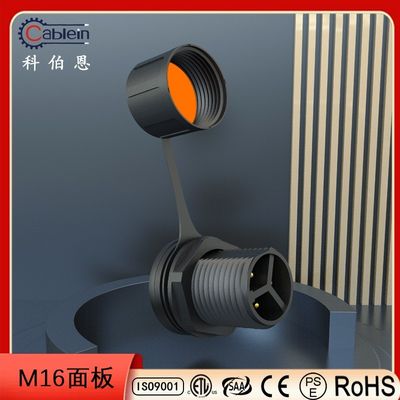

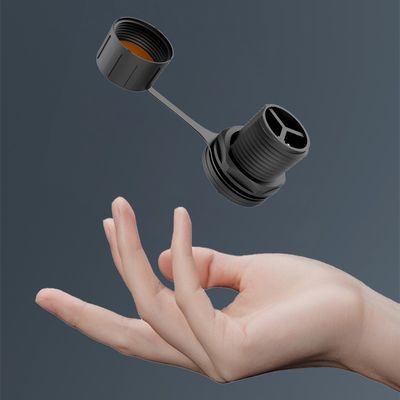

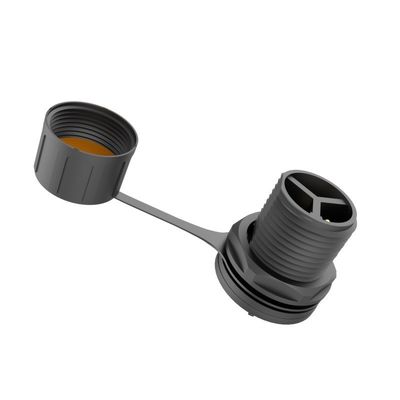

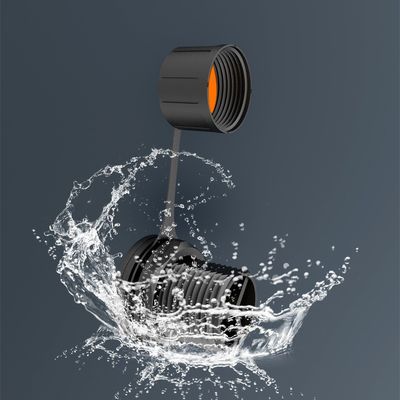

M16 3-Core Waterproof Panel Mount Connector IP67 Rated with PA66 Nylon Material for Industrial Electronics

Brand Name:	Cablein
Model Number:	CB-M16-3P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Connector Size:

M16 3-Core Male Pin Waterproof Panel Mount Connector IP67 Nylon Material Controller

Coupling:

Threaded Coupling

Connection Mode:

Screw Threaded

Material Of Housing:

PA66+30%GF V0 / Platsic

Durability:

≥1000 Times

Industrial Electronics:

Accessories

Cable Range:

6-10mm

Connector Type:

Push Locking

Supply Ability:

50000pcs per day

Highlight:

M16 Waterproof Panel Mount Connector

Waterproof Panel Mount Connector IP67

Nylon Male Pin Connector

Product Description

M16 3-Core Waterproof Panel Mount Connector

IP67 Rated Nylon Male Pin Connector for Industrial Applications

Product Specifications

Pin Configuration: 2/3/4/5/7/9/12 Male/Female

Current Rating: 12A Maximum

Material: PA66 Nylon

Connection Type: Screw-less Waterproof

Operating Voltage: 500V

Wire Assembly: Soldering or Screw Fitting

UV Resistance: Outdoor Rated

Cable Jacket OD: 4-9mm

Technical Datasheet

Part No.	CB-M16-2P	CB-M16-3P	CB-M16-4P	CB-M16-5P	CB-M16-7P	CB-M16-9P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin
Bonding Wire	✓	✓	✓	✓	✓	✓
Locking Wire	✓	✓	✓	✓	*	*
Contact Member (Bonding)	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9
Contact Member (Locking)	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*
Applicable Wire Gauge	1.5mm² / 16AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG
Rated Current	15A	5A	5A	5A	5A	5A
Rated Voltage	400V AC	250V AC	250V AC	250V AC	250V AC	250V AC

Additional Specifications:

Insulation Voltage: 2000V AC / 1500V AC

Contact Impedance: < 3 mΩ / < 5 mΩ

Insulation Resistance: ≥ 1000 MΩ

Mechanical Life: ≥ 1900 Cycles

Ambient Temperature: -40°C to +85°C

High Temperature Aging: 85°C / 168 hours

Product Advantages

In solar system technology where reliability and durability are paramount, the M16 3-Core Male Pin Waterproof Panel Mount Connector stands out as an essential component. Engineered from high-quality nylon material with an IP67 waterproof rating, this connector meets the demanding requirements of solar energy applications.

Solar systems operate in diverse and challenging environmental conditions, from intense sunlight and temperature variations to exposure to moisture and dust. The IP67 rating ensures protection against immersion in water, making it highly resistant to environmental elements. This waterproofing is crucial for preventing electrical faults and damage from moisture ingress, safeguarding system integrity and performance.

Nylon construction provides excellent mechanical strength to withstand physical stress and wear, along with superior insulation properties that reduce electrical leakage risks. The material's chemical and corrosion resistance ensures long-term reliability in harsh outdoor environments.

Applications

Ideal for solar energy systems, outdoor electrical equipment, industrial controls, and applications requiring reliable waterproof connections in challenging environments.

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer comprehensive waterproof connector series including private mold designs and custom solutions. Our product range includes P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold connectors, T-connectors, Y-custom connectors, and specialized solutions for livestock/poultry industries, new energy applications, and solar systems.

How to buy your products?

Contact our sales team online or by email with the following details:

Current rating and number of contacts required
Preferred assembly style
Cable wire gauge specifications
Cable length and shipping preferences

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand and resolve your technical requirements. Feel free to reach out with any questions.

Can I get samples?

Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we'll dispatch samples immediately.
