M20 Front Female Waterproof Panel Mount Connector with PA66+30%GF V0 Material and Threaded Coupling for Electrical Case Box and Energy Plug

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

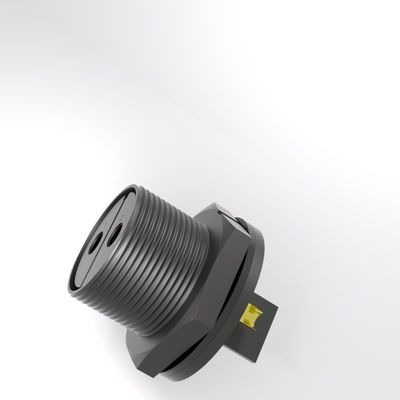

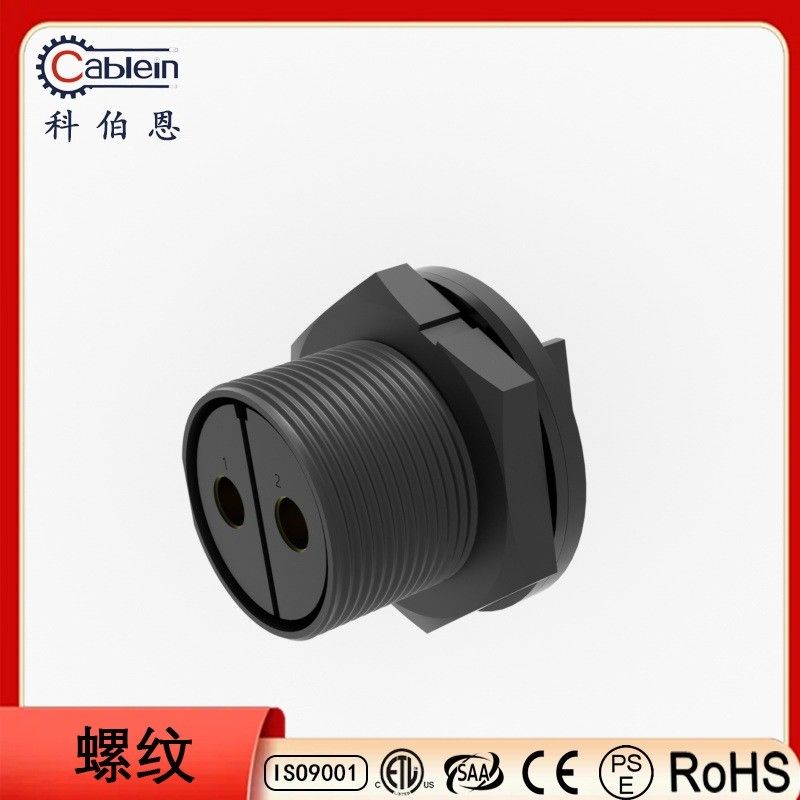

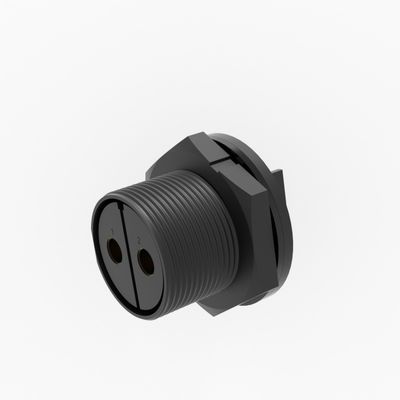

M20 Front Female Waterproof Panel Mount Connector with PA66+30%GF V0 Material and Threaded Coupling for Electrical Case Box and Energy Plug

Brand Name:	Cablein
Model Number:	CB-M20-2P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Connector Size:

M20 Front Female Waterproof Panel Mount Connector Electrical Case Box Energy Plug

Coupling:

Threaded Coupling

Connection Mode:

Screw Threaded

Material Of Housing:

PA66+30%GF V0 / Platsic

Durability:

≥1000 Times

Industrial Electronics:

Accessories

Cable Range:

6-10mm

Connector Type:

Push Locking

Supply Ability:

50000pcs per day

Highlight:

M20 Waterproof Panel Mount Connector

Front Female Waterproof Panel Mount Connector

Product Description

M20 Front Female Waterproof Panel Mount Connector

Product Specifications

Pin Options: 2/3/4/5/7/9/12 Male Female Connector
Current Rating: 12A Max
Material: PA66 Nylon
Connection Method: Screw-less type waterproof connector
Operating Voltage: 500V
Assembly Wire: Soldering or screw fitting
Outdoor UV Resistance: Pass
Cable Jacket OD: 4-9mm

Technical Datasheet

Part No.	CB-M20-2P	CB-M20-3P	CB-M20-4P	CB-M20-5P	CB-M20-7P	CB-M20-9P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*
Contact Member - Bonding Wire	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9
Contact Member - Locking Wire	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*
Applicable Wire Gauge	1.5mm² / 16AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG	0.5mm² / 20AWG
Rated Current	15A	5A	5A	5A	5A	5A
Rated Voltage	400V AC	250V AC	250V AC	250V AC	250V AC	250V AC
Insulation Voltage	2000V AC	1500V AC	1500V AC	1500V AC	1500V AC	1500V AC
Contact Impedance	< 3 mΩ	< 5 mΩ	< 5 mΩ	< 5 mΩ	< 5 mΩ	< 5 mΩ

Additional Specifications:
Insulation Resistance: ≥ 1000 MΩ
Mechanical Life: ≥ 1900 Times
Ambient Temperature: -40℃ to +85℃
High Temperature Aging: 85℃ / 168h

Key Advantages

The M20 Front Female Waterproof Panel Mount Connector provides exceptional performance in electrical case box and energy plug applications. Its waterproof design ensures reliable operation in harsh and humid environments, protecting electrical connections from moisture damage and making it ideal for outdoor or industrial settings.

The panel mount configuration delivers secure and stable connections, minimizing the risk of loose contacts while enhancing system durability and longevity. Compatibility with various energy plugs streamlines installation and maintenance processes. With superior protection and user-friendly design, the M20 connector ensures smooth and safe electrical system operation.

Applications

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer a comprehensive range of waterproof connectors, including many proprietary designs and custom solutions. Our product line includes P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold waterproof connectors, T-connectors, Y-customized connectors, and specialized solutions for livestock/poultry industries, new energy applications, and solar systems.

How to buy your products?

Contact our sales team online or by email. Please provide:
• Current rating and number of contacts required
• Preferred assembly style
• Cable wire gauge specifications
• Cable length requirements and shipping preferences

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions. Feel free to reach out with any questions.

Can I get samples?

Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we'll dispatch samples immediately.
