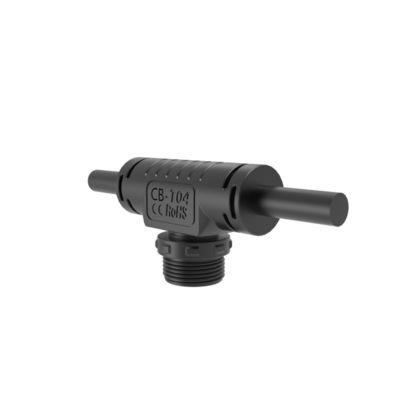

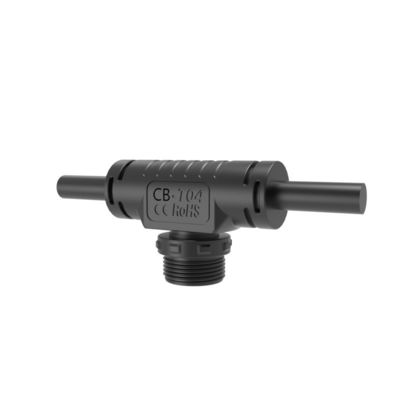

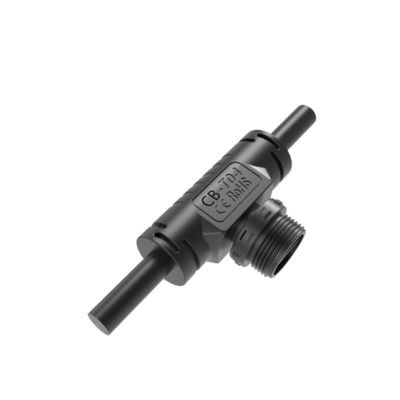

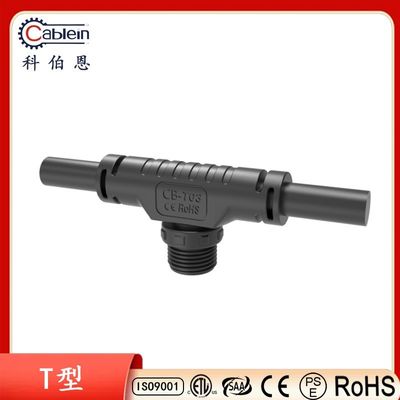

M16 Rubber Coated T Tee Waterproof LED Connector with IP68 Rating and 15A Current for Street Lamp Modules

Brand Name: Cablein
Model Number: CB-M16-MDM11-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Cable Od:
M16 Rubber Coated T Tee Waterproof LED Connector 15A Street Lamp Module Court Light
Cable Diameter:
12mm Max
Waterproof Level:
IP68
Rated Current:
10A Max
Item:
Waterproof Underground Cable Connector
Cable Length:
Per Your Requirement
Lead Time:
10-15 Days
Material Of Contact:
Copper Alloy
Supply Ability:
50000pcs per day
Highlight:

M16 LED Waterproof Connector

,

LED Waterproof Connector 15A

Product Description
M16 Rubber Coated T Tee LED Waterproof Connector 15A
Product Specifications
Pin Configuration: 2/3/4/2+2/5/2+3/7 Pins Male Female Connector
Current Rating: 15A Max
Material: PA66 Nylon
Connection Type: Screw-less waterproof connector
Operating Voltage: 500V
Assembly Method: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Jacket OD: 4.5-9.2mm
Technical Datasheet
Specification 2 Pins 3 Pins 4 Pins
Rated Voltage 500V 500V 500V
Rated Current 15A 15A 15A
Insulation Resistance 500MΩ 500MΩ 500MΩ
IP Rating IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.5mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Product Advantages
M16 Rubber Coated T Tee Waterproof LED Connector with IP68 Rating and 15A Current for Street Lamp Modules 0
The M16 Rubber Coated T Tee Waterproof LED Connector 15A is engineered for street lamp modules and court lighting applications. Its rubber coating provides superior waterproof protection, making it ideal for diverse outdoor environments.
With a 15A current capacity, this connector meets the power requirements of various lighting configurations. The durable construction ensures reliable performance and long service life in demanding conditions.
This connector delivers efficient, long-lasting performance for street lighting, court illumination, and other outdoor lighting installations.
Technical Drawing
M16 Rubber Coated T Tee Waterproof LED Connector with IP68 Rating and 15A Current for Street Lamp Modules 1
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide comprehensive waterproof connector solutions including P16 Self-Locking Injection Waterproof Connectors, assembly waterproof connectors, over-mold connectors, T-type connectors, Y-type custom connectors, and specialized connectors for livestock/poultry industries, new energy applications, and solar systems. Many feature proprietary molds and custom designs.
How do I purchase your products?
Contact our sales team online or via email. Please specify: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
How can I contact you?
Please provide your email, phone number, Skype, or WhatsApp ID. Our experienced team with over 8 years in the industry can quickly address your technical requirements and provide professional support.
Can I request samples?
Yes, we provide samples with freight costs covered by the customer. Please share your courier account details and delivery address for prompt sample shipment.
