IP68 Waterproof LED Connector with 15A Rated Current and PA66 Nylon Material for Underground Cable Connections

Brand Name: Cablein
Model Number: CB-Y65-1P2-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Cable Od:
Y65 One To Two Waterproof LED Connectors Cable Nylon Plant Light Solar Panel
Cable Diameter:
6-10mm Max
Waterproof Level:
IP68
Rated Current:
10A Max
Item:
Waterproof Underground Cable Connector
Cable Length:
Per Your Requirement
Lead Time:
10-15 Days
Material Of Contact:
Copper Alloy
Supply Ability:
50000pcs per day
Highlight:

Plant Light Waterproof LED Connectors

,

Solar Panel Waterproof LED Connectors

,

Waterproof Underground Cable Connector

Product Description

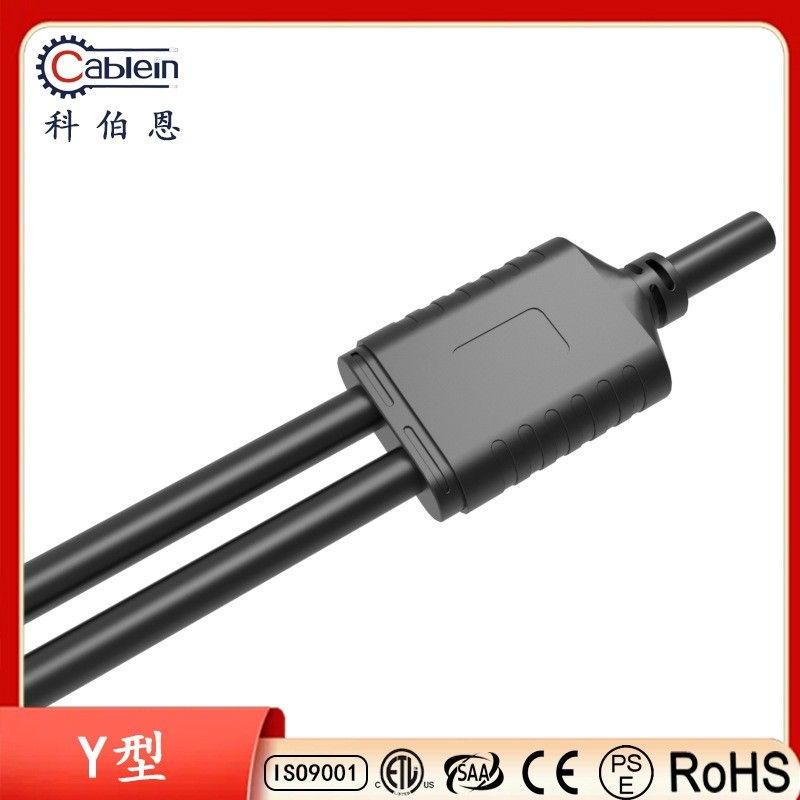

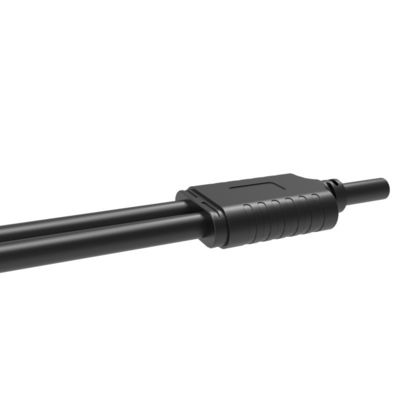

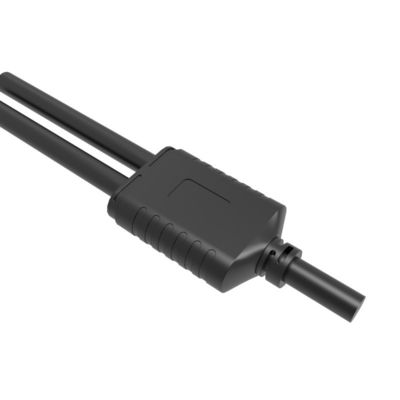

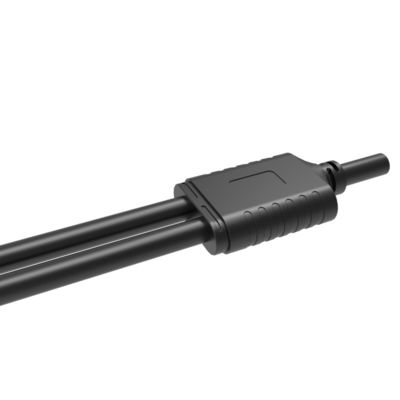

Y65 Waterproof LED Connectors for Plant Lights & Solar Panels
Pin Options: 2/3/4/2+2/5/2+3/7 Pins Male Female Connector
Current Rating: 15A Maximum
Material: PA66 Nylon
Connection Type: Screw-less waterproof connector
Operating Voltage: 500V
Wire Assembly: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Jacket OD: 6-14mm
Technical Specifications
Specification 2 Pins 3 Pins 4 Pins
Rated Voltage 200V 200V 200V
Rated Current 15A 15A 15A
Insulation Voltage 200MΩ 200MΩ 200MΩ
IP Code IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.5mm²
Assembly Cable Diameter 3-12mm 3-12mm 3-12mm
Product Advantages
IP68 Waterproof LED Connector with 15A Rated Current and PA66 Nylon Material for Underground Cable Connections 0
The Y65 One To Two Waterproof LED Connectors offer exceptional performance for plant light and solar panel applications. Engineered with IP68 waterproof rating, these connectors ensure reliable operation in demanding outdoor environments.
  • Constructed from durable PA66 nylon material for long-lasting performance
  • Specifically designed for plant growth lighting and solar panel systems
  • One-to-two connector design enables flexible multi-light configurations
  • Enhances energy conversion efficiency in solar applications
  • Simplified installation process with reduced maintenance requirements
  • UV resistant for extended outdoor durability
Product Dimensions
IP68 Waterproof LED Connector with 15A Rated Current and PA66 Nylon Material for Underground Cable Connections 1
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, assembly waterproof connectors, over-mold connectors, T-connectors, Y-customized connectors, and specialized connectors for livestock, poultry, new energy, and solar system applications. Many feature proprietary molds and custom designs.
How do I purchase your products?
Contact our sales team online or via email. Please provide: current rating and number of contacts required, assembly style preference, cable wire gauge specifications, cable length requirements, and preferred shipping method.
How can I contact you?
Reach us via email, phone, Skype, or WhatsApp. With over 8 years of industry experience, our professional sales and R&D teams can quickly address your technical requirements and provide timely solutions.
Can I request samples?
Yes, we provide samples upon request. Customers are responsible for freight costs. Please provide your courier account number and detailed shipping address for sample dispatch.
