IP68 Waterproof M12 LED Connector with 8A Rated Current and Copper Alloy Contact for Street Lamps

Brand Name: Cablein
Model Number: Y01-3P
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Cable Od:
Y-Type M12 Waterproof LED Connector Street Lamp Module Plant Light Connector
Cable Diameter:
6-10mm Max
Waterproof Level:
IP68
Rated Current:
8A Max
Item:
Waterproof Underground Cable Connector
Cable Length:
Per Your Requirement
Lead Time:
10-15 Days
Material Of Contact:
Copper Alloy
Supply Ability:
50000pcs per day
Highlight:

M12 Waterproof LED Light Connectors

,

Waterproof LED Light Connectors IP68

Product Description
M12 Waterproof LED Light Connectors IP68 Street Lamp Module Plant Light Connector
Product Specifications
Pin Options: 2/3/4/2+2/5/2+3/7 Pins Male Female Connector
Current Rating: 8A Max
Material: PA66 Nylon
Connection Type: Screw-less waterproof connector
Operating Voltage: 220V
Wire Assembly: Soldering or screw fitting
UV Resistance: Pass
Cable Jacket OD: 6-14mm
Technical Datasheet
Specification 2 Pins 3 Pins 4 Pins
Rated Voltage 220V 220V 220V
Rated Current 15A 15A 15A
Insulation Voltage 200MΩ 200MΩ 200MΩ
IP Code IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.5mm²
Assembly Cable Diameter 3-12mm 3-12mm 3-12mm
Product Advantages

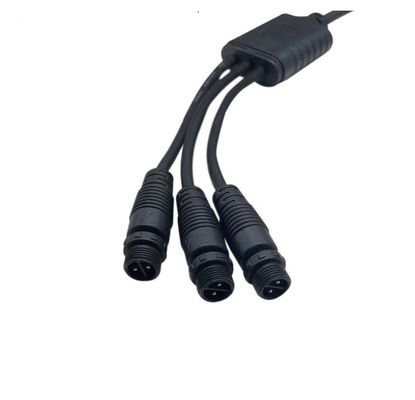

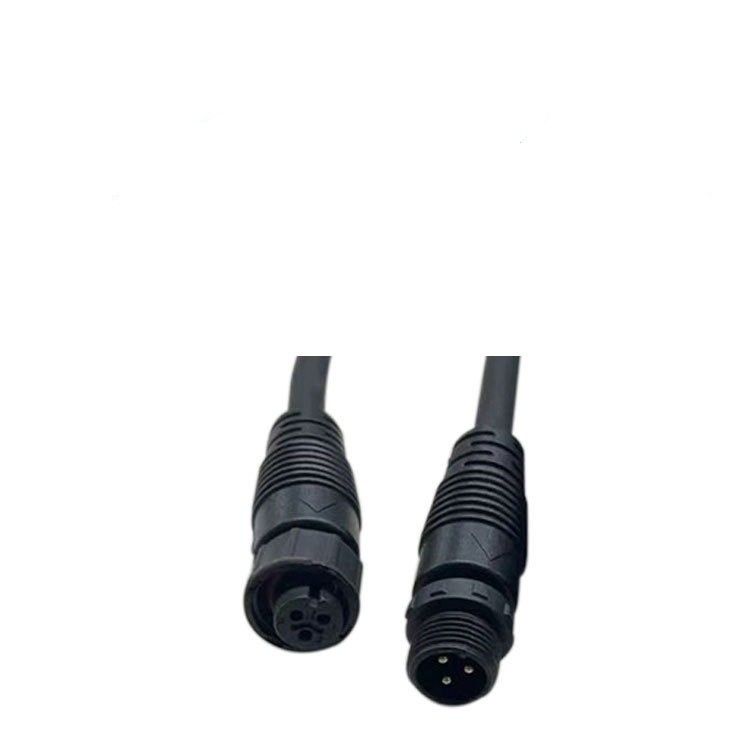

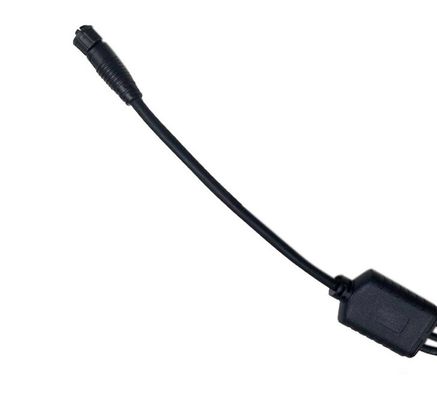

IP68 Waterproof M12 LED Connector with 8A Rated Current and Copper Alloy Contact for Street Lamps 0
The Y-Type M12 Waterproof LED Connector delivers exceptional performance for street lamp and plant light modules with these key benefits:
  • Superior Waterproof Protection: IP68 rating ensures reliable operation in harsh weather conditions
  • Easy Installation: Screw-less design saves time and effort during setup
  • Long Lifespan: Durable construction reduces maintenance costs over time
  • Excellent Stability & Conductivity: Guarantees efficient power transmission for optimal lighting
  • High-Quality Build: Trusted choice for both street lamp and plant light installations
Technical Drawing
IP68 Waterproof M12 LED Connector with 8A Rated Current and Copper Alloy Contact for Street Lamps 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold waterproof connectors, T and Y customized waterproof connectors, Livestock industry connectors, New Energy Waterproof Connectors, and Solar System waterproof connectors. Many feature our private molds and custom designs.
How to buy your products?
Contact our sales team online or by email. Please provide: Current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
How to contact with you?
Please provide your email, phone number, Skype or WhatsApp ID. Our professional sales and R&D team with over 8 years of industry experience is ready to address your requirements and solve problems efficiently.
Can I get samples?
Yes, we provide samples with freight cost coverage. Please share your courier account number and detailed address for immediate sample dispatch.
