Waterproof LED Connectors
>
4 Pin IP68 Waterproof LED Connectors with 500V Rated Voltage for Secure Outdoor Lighting

4 Pin IP68 Waterproof LED Connectors with 500V Rated Voltage for Secure Outdoor Lighting

Brand Name: Cablein
Model Number: CB-M15-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Assembly Wire:
Soldering Or Screw Fitting
Cable Diameter:
6-10mm Max
Out Door UV Resistance:
Pass
Rated Voltage:
500V
Pins Number:
4Pins
Advantages:
Waterproof, Reliable And Seamless Connectivity, Secure And Stable Connection, Easy To Install And Long-lasting
Item:
Waterproof Underground Cable Connector
Material:
PA66 Nylon
Supply Ability:
50000pcs per day
Highlight:

4 Pin Waterproof LED Connectors

,

Waterproof LED Connectors 500V

Product Description

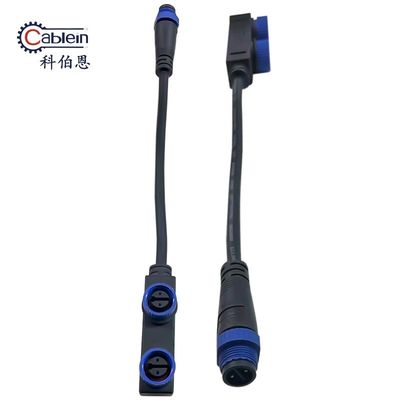

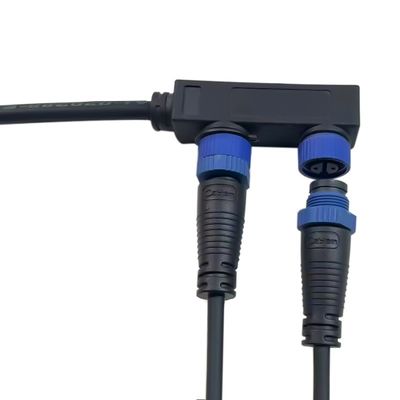

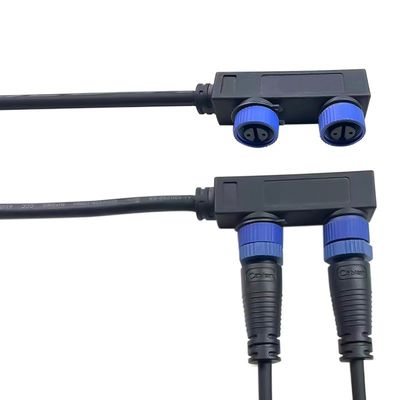

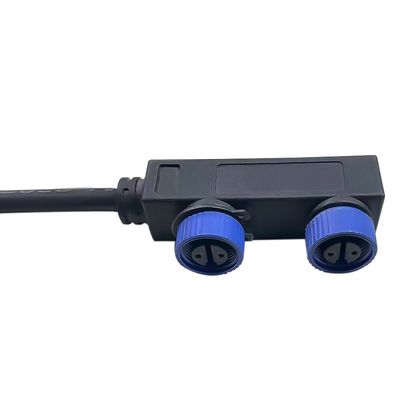

4 Pin IP68 Waterproof LED Connectors
Rated for 500V operation, these waterproof LED connectors provide durable and reliable connectivity for outdoor lighting applications. Designed for both permanent installations and temporary displays, they ensure secure performance in demanding environments.
Key Features
  • Product Name: Waterproof LED Connectors
  • Cable Diameter: 6-10mm Maximum
  • Operating Voltage: 220V
  • Contact Material: Copper Alloy
  • Outdoor UV Resistance: Certified Pass
  • Insulation Voltage: 200MΩ
  • Ideal for outdoor lighting connectors and LED light strip applications
Technical Specifications
Product Name M15 Strip Waterproof LED Connector Male and Female Docking Outdoor Street Lamp Socket
Current Rating 8A Maximum
Waterproof Level IP68
Assembly Method Soldering or screw fitting
Pins Number 4 Pins
IP Code IP67
Rated Current 15A
Cable Specifications ≤1.5mm²
Cable Diameter 6-10mm Maximum
Material PA66 Nylon
Applications & Certifications
Cablein Waterproof LED Connectors (Model: CB-M15-X) are CE, ROHS, TUV, and ETL certified. Manufactured in Shenzhen, China, these connectors are designed for LED strip light connections and outdoor lighting sockets. They withstand harsh weather conditions with complete waterproof protection and handle maximum voltages up to 500V.
Available in multiple pin configurations (2, 3, 4, 2+2, 5, 2+3, and 7 pins) with both male and female versions to suit various project requirements.
Product Support & Services
Our technical support team provides assistance with installation, operation, and maintenance of Waterproof LED Connectors. We offer custom design, manufacturing, prototyping, testing, and certification services to optimize your LED lighting system performance.
Packaging & Shipping
Packaging
  • 100 waterproof LED connectors per package
  • Individual plastic bags for each connector
  • Sturdy cardboard box packaging
Shipping
  • Ships within 1-2 business days
  • Free standard shipping within the United States
  • International shipping available at additional cost
  • Tracking number provided upon shipment
Frequently Asked Questions
What is the brand name of this waterproof LED connector?
The brand name is Cablein.
What is the model number?
The model number is CB-M15-X.
What certifications does this product have?
CE, ROHS, TUV, and ETL certifications.
What is the minimum order quantity?
Minimum order quantity is 1 piece.
What are the payment terms?
T/T and Western Union. Price can be discussed with our sales team.
What is the supply capacity?
50,000 pieces per day.
What is the delivery time?
5-8 working days.
What are the packaging details?
High quality export carton packaging.
