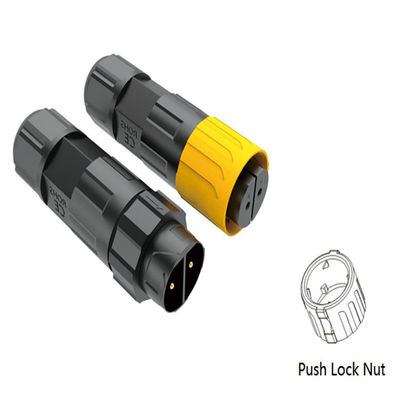

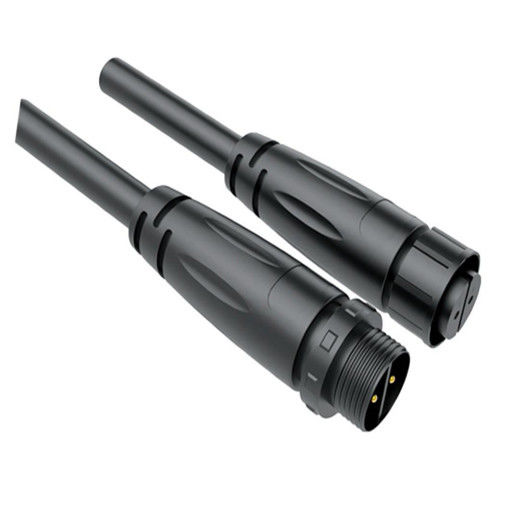

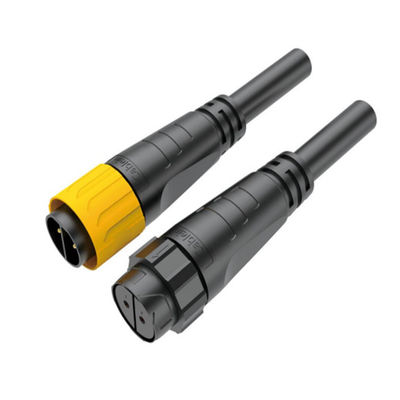

Self-Locking Waterproof Male Female Connector with 3KV Insulation Voltage and IP67 Rating in PA66 Plastic

Brand Name: Cablein
Model Number: CB-P20-MDF11-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Model:
Self-Locking P20 Waterproof Male Female Connector With 3KV Insulation Voltage For LED Plant Light
Sample:
Free
Waterproof Rating:
IP67
Termination:
Crimping Terminals
Cable Length:
Customized
Operating Voltage:
380V
Shell Material:
PA66
Connecting Model:
Push Locking
Supply Ability:
50000pcs per day
Highlight:

Plastic Male Female Connectors Waterproof

,

Self Locking Plastic Male Female Connectors

Product Description
Self-Locking P20 Waterproof Male Female Connector with 3KV Insulation Voltage
Product Specifications
Pin Configurations: 2/3/4/2+2/5/2+3/7 Pins Male Female Connector
Current Rating: 25A Max
Material: PA66 Nylon
Connection Method: Screw-less type waterproof connector
Operating Voltage: 380V
Assembly Wire: Soldering or screw fitting
Outdoor UV Resistance: Pass
Cable Jacket OD: 4-10.5 mm
Technical Datasheet
Specification 2 Pins 3 Pins 4 Pins
Rated Voltage 380V 380V 380V
Rated Current 25A 25A 25A
Insulation Voltage 3KV 3KV 3KV
DC 500V Insulation Resistance 500MΩ 500MΩ 500MΩ
IP CODE IP67 IP67 IP67
Cable Specifications ≤2.5mm² ≤2.5mm² ≤2.0mm²
Assembly Cable Diameter 4-10.5mm 4-10.5mm 4-10.5mm
Product Advantages
Self-Locking Waterproof Male Female Connector with 3KV Insulation Voltage and IP67 Rating in PA66 Plastic 0
In LED plant lighting applications, reliable connectivity is essential for optimal performance. The Self-Locking P20 Waterproof Connector with 3KV insulation voltage provides superior protection and performance for demanding horticultural environments.
  • Exceptional Waterproof Protection: IP67 rating ensures reliable operation in humid greenhouse and indoor cultivation environments, preventing moisture damage and electrical faults
  • High Voltage Insulation: 3KV insulation voltage protects LED plant lights and electrical circuits from voltage surges and interference
  • Enhanced Safety: Reduces electrical hazards and ensures worry-free operation of lighting systems
  • Durable Construction: PA66 Nylon material provides excellent UV resistance and long-term reliability
Product Drawing
Self-Locking Waterproof Male Female Connector with 3KV Insulation Voltage and IP67 Rating in PA66 Plastic 1
Frequently Asked Questions
What type of waterproof connectors do you offer?
We provide comprehensive waterproof connector solutions including P16 Self-Locking Injection Waterproof Connectors, assembly waterproof connectors, over-mold connectors, T-connectors, Y-customized connectors, and specialized connectors for livestock/poultry industries and new energy applications including solar systems.
How do I purchase your products?
Contact our sales team online or by email with the following specifications:
  • Current rating and number of contacts required
  • Preferred assembly style
  • Cable wire gauge specifications
  • Cable length and shipping preferences
How can I contact you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand your requirements and provide effective solutions.
Can I request samples?
Yes, we provide samples upon request. Customers only need to cover freight costs. Please provide your courier account number and detailed shipping address for prompt sample delivery.
Tags:

Male Female Cable Connectors

Male Female Waterproof Connectors

Male Female Power Connector
