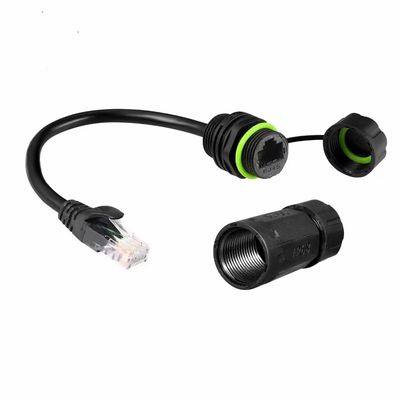

125V 1000MHz UV Resistance RJ45 Waterproof Connector for Outdoor Signal Applications
  • name

125V 1000MHz UV Resistance RJ45 Waterproof Connector for Outdoor Signal Applications

Brand Name: Cablein
Model Number: CB-M23-RJ45-P
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL, CB, SAA
Flame Resistant:
UL94 - V0
Transmission Speed:
RJ45(1000MHz)
Panel Thickness Max:
2.0 Mm
Material:
PA66 Nylon
Product Category:
RJ45 Waterproof Connector
Pin:
RJ45 Connector
Metal:
Gilded Brass
Insertion Life:
1000 Times
Supply Ability:
50000pcs per day
Highlight:

125V RJ45 Waterproof Connector

,

RJ45 Waterproof Connector UV Resistance

,

1000MHz Outdoor RJ45 Connector

Product Description
125V 1000MHz RJ45 Waterproof Connector UV Resistance Outdoor RJ45 Connector
Product Overview

This industrial-grade RJ45 waterproof connector features a weatherproof design that withstands extreme environmental conditions while maintaining secure connections. Constructed with gilded brass contacts and high-quality PA66 nylon housing, it provides excellent protection against moisture, UV radiation, and harsh outdoor elements.

Key Features
  • Product Name: RJ45 Signal Waterproof Connector
  • Maximum Panel Thickness: 2.0 mm
  • Transmission Speed: 1000MHz (Gigabit Ethernet)
  • Operating Voltage: 125V
  • Wire Assembly: Soldering or screw fitting options
  • Protection Level: IP67 rated for complete waterproofing
Technical Specifications
Parameter Specification
Metal Material Gilded Brass
Assembly Method Soldering or screw fitting
Current Rating 1.5A Maximum
Connector Type RJ45 Connector
UV Resistance Outdoor Certified
Application Signal Transmission
Waterproof Rating IP67
Product Category RJ45 Waterproof Connector
Transmission Speed 1000MHz (RJ45)
Maximum Panel Thickness 2.0 mm
Applications

Ideal for outdoor and harsh environment applications including security camera systems, outdoor digital displays, LED lighting installations, industrial Ethernet networks, telephone systems, and any signal application requiring reliable weatherproof connections.

Product Support

This connector supports various Ethernet standards including 10/100/1000 Mbps and PoE (Power over Ethernet). Comprehensive technical support is available for installation, troubleshooting, and maintenance.

Packaging & Shipping

Each RJ45 Waterproof Connector is securely packaged in protective export cartons. Standard delivery within the United States is 5-7 business days with free shipping. International shipping available with variable delivery times and charges.

Frequently Asked Questions
What is the brand name of this product?
The brand name is Cablein.
What is the model number?
Model: CB-M23-RJ45-P
What certifications does this product have?
CE, ROHS, TUV, ETL, CB, and SAA certifications.
What is the minimum order quantity?
Minimum order quantity is 1 piece.
What are the payment terms?
T/T and Western Union. Contact sales for pricing.
What is the production capacity?
Supply ability: 50,000 pieces per day.
What is the delivery time?
Delivery time: 5-8 working days.
125V 1000MHz UV Resistance RJ45 Waterproof Connector for Outdoor Signal Applications 0 125V 1000MHz UV Resistance RJ45 Waterproof Connector for Outdoor Signal Applications 1
