IP67 Rated Waterproof Panel Mount Connector with Threaded Coupling and PA66 Nylon Material

Brand Name:	Cablein
Model Number:	CB-M20-2P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Industrial Electronics:

Accessories

Material:

PA66 Nylon

Coupling:

Threaded Coupling

Durability:

≥1000 Times

Connection Mode:

Screw Threaded

Cable Range:

6-10mm

Conenction Way:

Screw-less Type Waterproof Connector

Product Category:

Waterproof Panel Mount Connector

Supply Ability:

50000pcs per day

Highlight:

Industrial Waterproof Electrical Connector

Panel Mount Waterproof Electrical Connector

Product Description

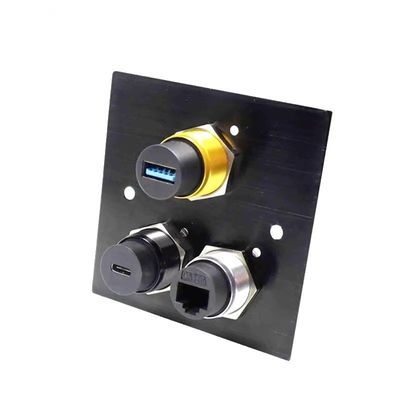

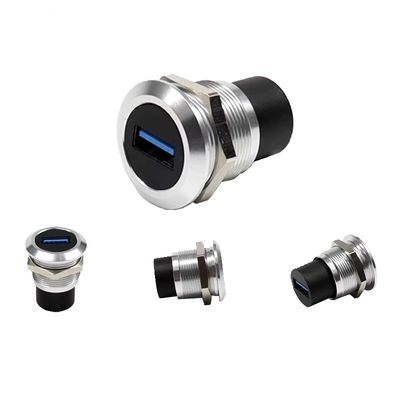

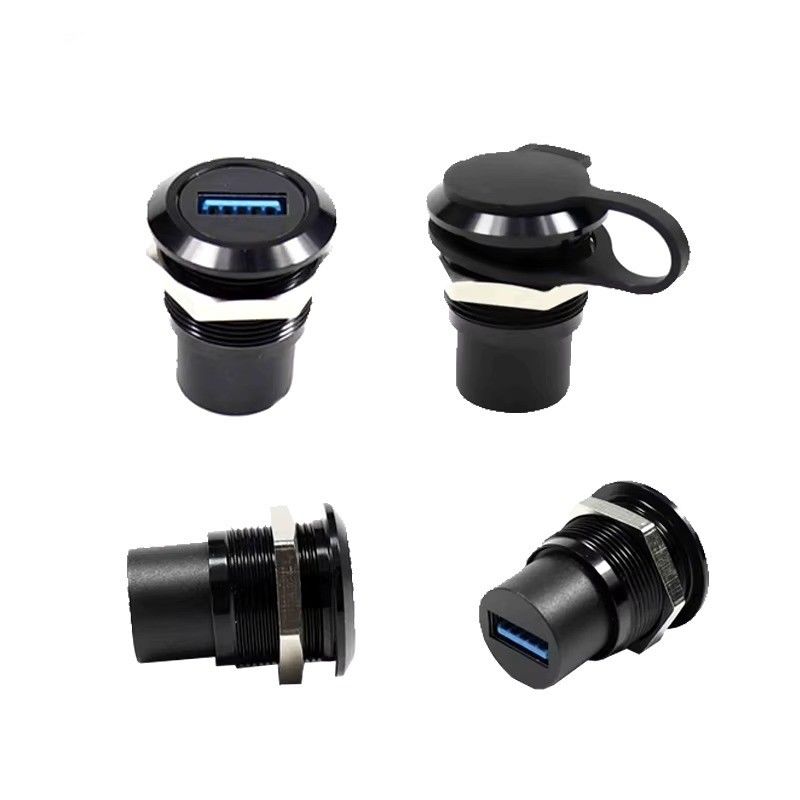

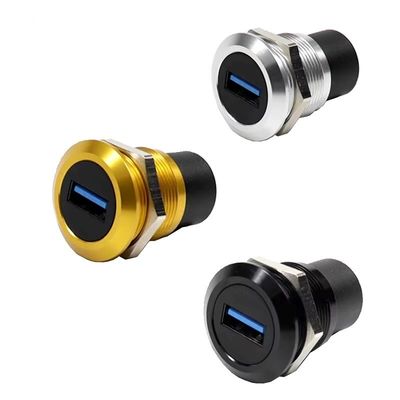

Industrial Panel Mount Waterproof Electrical Connector With Threaded Coupling

The Waterproof Panel Mount Connector is a threaded coupling connector available in USB Type A/B Male/Female PCB panel mount configurations for wire connections. With multiple pin options including 2/3/4/5/7/9/12 Male Female Connector variants, it offers broad compatibility across various devices and applications.

Designed to accommodate cables from 6-10mm in diameter, this connector ensures secure, tight connections. It's specifically engineered for humidity-resistant applications in marine electronics, outdoor lighting, and industrial automation environments.

Product Features

Product Name: Waterproof Panel Mount Connector
Operating Voltage: 500V
Industrial Electronics Accessories
Connector Size: IP67 Waterproof Panel Mount Connector USB Type A B Male Female PCB Panel Mount For Wire
Coupling: Threaded Coupling
Material Of Housing: PA66+30%GF V0 / Plastic

Also known as: Dustproof Panel Connector, Water-resistance Connector, or Panel Mount Waterproof Connector.

Technical Specifications

Product Category	Waterproof Panel Mount Connector
Connector Size	IP67 Waterproof Panel Mount Connector USB Type A B Male Female PCB Panel Mount For Wire
Pin Configuration	2/3/4/5/7/9/12 Male Female Connector
Coupling Type	Threaded Coupling
Current Rating	10A-16A Max
Housing Material	PA66+30%GF V0 / Plastic
Operating Voltage	500V
Material	PA66 Nylon
Durability	≥1000 Cycles
Cable Jacket OD	4-9mm

This watertight connector features corrosion-resistant and dustproof properties, making it ideal for industrial and outdoor applications.

Applications

This durable waterproof electrical connector withstands over 1000 connection cycles. The screw-threaded connection ensures secure, stable fittings, while the PA66+30%GF V0 plastic housing provides excellent protection against heat, moisture, and chemicals.

The CB-M20-2P model is an ideal solution for industrial electronics applications. Its screw-less type waterproof connector design enables quick, easy installation while maintaining strong, reliable connections. Perfect for outdoor environments, marine applications, and any scenario requiring watertight connectivity.

Support and Services

Our technical support team provides comprehensive assistance with installation, troubleshooting, and maintenance. We offer testing, repair, and customization services to ensure optimal connector performance. Backed by comprehensive warranty and satisfaction guarantee.

Packaging and Shipping

Product Packaging

Sturdy cardboard box packaging
Bubble wrap protection during transportation
Includes connector, rubber sealing washer, and lock nut

Shipping

Shipped via trusted carriers
Typically ships within 1-2 business days
Delivery within 5-7 business days
Tracking number provided upon shipment

Frequently Asked Questions

Q1: What is the brand name of this waterproof panel mount connector?

A1: The brand name is Cablein.

Q2: What is the model number of this waterproof panel mount connector?

A2: The model number is CB-M20-2P.

Q3: What certifications does this waterproof panel mount connector have?

A3: Certified by CE, ROHS, TUV, and ETL.

Q4: What is the minimum order quantity for this waterproof panel mount connector?

A4: Minimum order quantity is 1 piece.

Q5: What payment terms are accepted for purchasing this waterproof panel mount connector?

A5: We accept T/T and Western Union. Contact our sales team for details.

Q6: What is the delivery time for this waterproof panel mount connector?

A6: Delivery time is 5-8 working days.

Q7: What are the packaging details for this waterproof panel mount connector?

A7: Packed in high-quality export cartons.

Q8: What is the supply ability of this waterproof panel mount connector?

A8: Supply capacity is 50,000 pieces per day.
