M25 3-Core IP67 Waterproof Circular Connector Female Micro Inverter Connector 500V Rated

Brand Name:	Cablein
Model Number:	CB-M25-FFF01-2P-X
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL, CB, SAA

Name:

M25-3-Core Front Panel Female Chain Dust Cover Waterproof Circular Connector For Micro Inverter

Metal:

Gilded Brass

Material:

PA66 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Highlight:

M25 waterproof circular connector

3 core female micro inverter connector

waterproof circular wire connector

Product Description

M25 3-Core Waterproof Circular Wire Connector Female Micro Inverter Connector

Pin Configuration: 2/3/4/5 Pin Male/Female

Current Rating: 30A Max

Material: PA66 Nylon

Connection Type: Panel Type Docking Butt

Operating Voltage: 500V

Wire Assembly: Soldering or Screw Fitting

UV Resistance: Outdoor Rated

Cable Jacket OD: 4.0 mm²

Technical Specifications

Pins Number	2 Pins	3 Pins	4 Pins	5 Pins
Rated Voltage	500V	300V	500V	500V
Rated Current	30A	30A	30A	30A
Insulation Voltage	3KV	3KV	3KV	2KV
DC 500V Insulation Resistance	500MΩ	500MΩ	500MΩ	200MΩ
IP Code	IP67	IP67	IP67	IP67
Cable Specifications	≤4.0mm²	≤4.0mm²	≤4.0mm²	≤4.0mm²

Product Features

Advanced IP67 self-locking connector structure
Multiple pin configurations available: 2, 3, 4, 5, 6, 7, 8, 9 to 32 pins
Flexible connection methods: soldering or screw terminal
Versatile assembly options: cable-to-cable, male and female without cable
Industry certifications: UL, TUV, CE, ROHS, CQC
Push-pull locking type connection mechanism

Application Industries

Stage Equipment

Smart Grid

LED Lighting

Solar Energy Equipment

Ship Equipment

Agriculture

Electric Power Equipment

Vehicle Equipment

Ebike/Motorcycle

Communications Equipment

Heavy Machinery

Transportation

Product Drawing

Product Overview

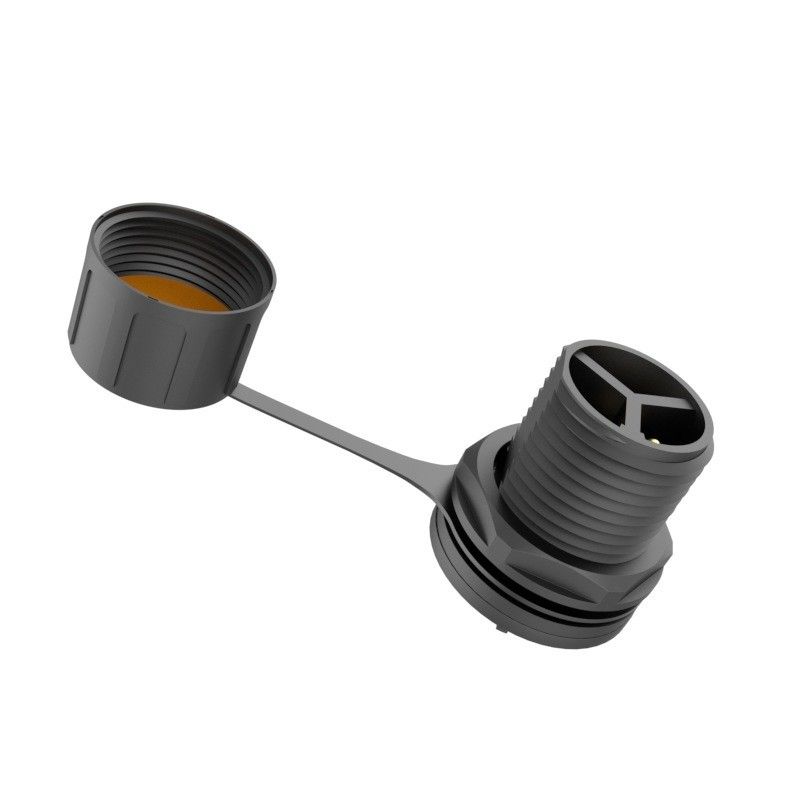

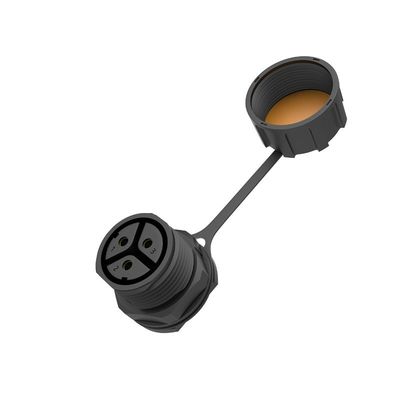

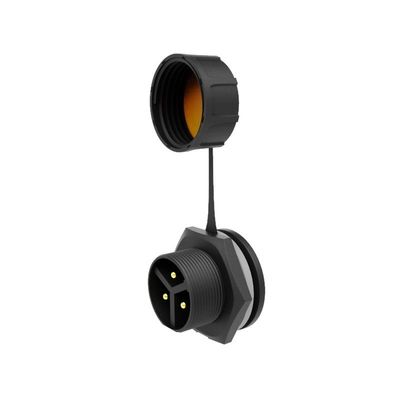

The M25-3-Core Waterproof Circular Connector Female Chain Dust Cover is engineered to enhance the performance and longevity of micro inverter systems. Precision-crafted for durability, this dust cover provides superior waterproof protection, safeguarding connectors from moisture, dust, and other environmental contaminants.

The circular design ensures a secure fit, delivering a reliable seal that prevents unwanted intrusion. Constructed from high-quality materials, it withstands demanding environmental conditions and serves as an essential accessory for maintaining micro inverter efficiency and reliability.

Invest in this premium dust cover to ensure seamless operation and extended service life for your micro inverter system.

Frequently Asked Questions

How to buy your products?

Contact our sales team online or by email. Please provide the following information:

Current rating and number of contacts required
Preferred assembly style
Cable wire gauge specifications
Cable length and shipping method

Can I get samples?

Yes, we are pleased to provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch the sample immediately.
