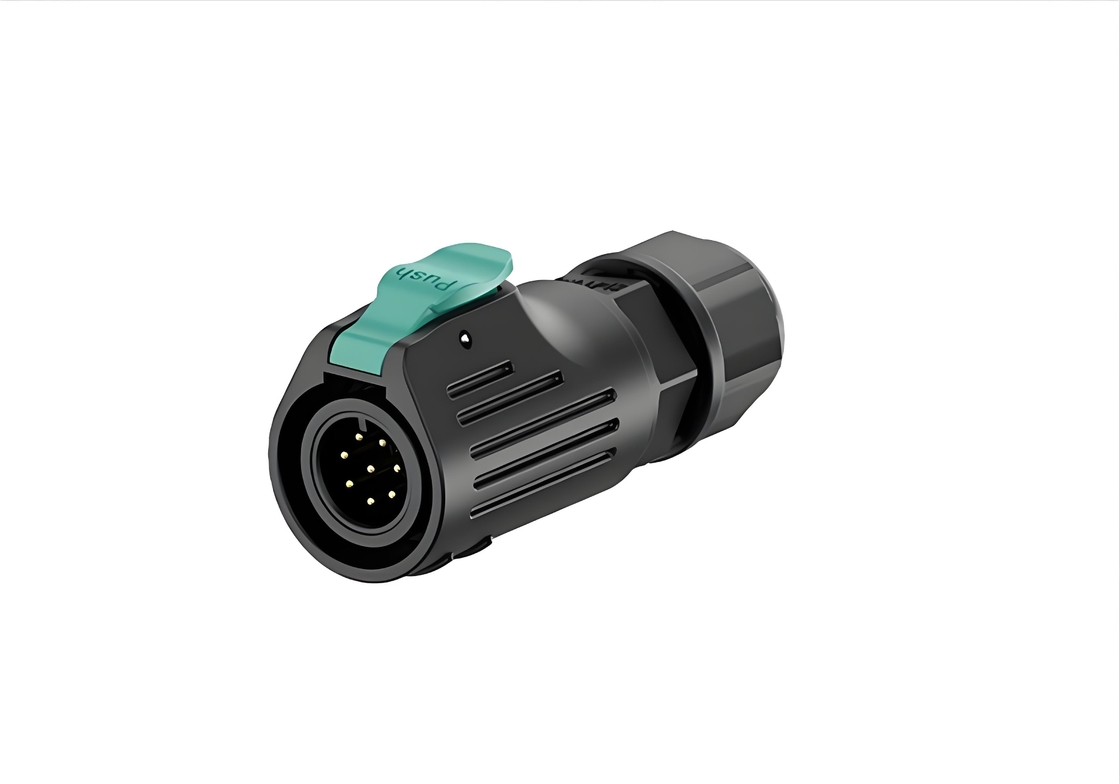

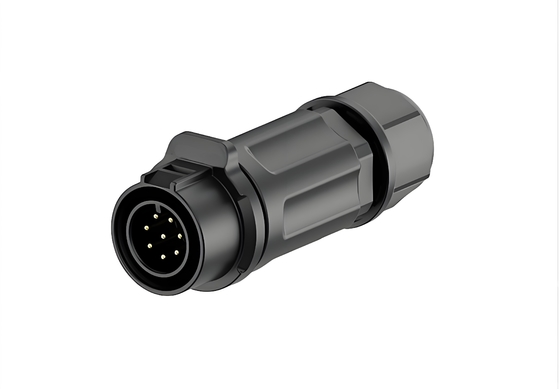

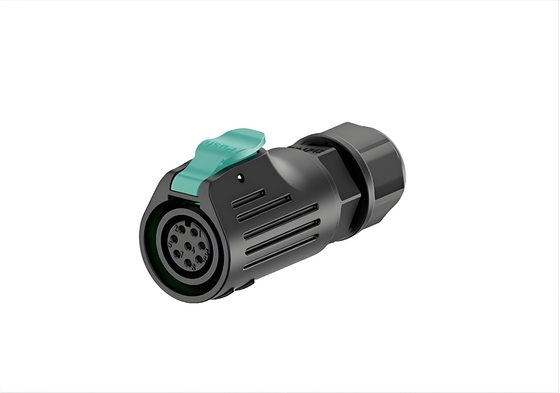

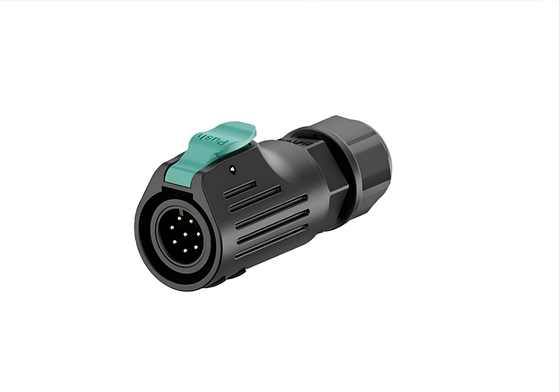

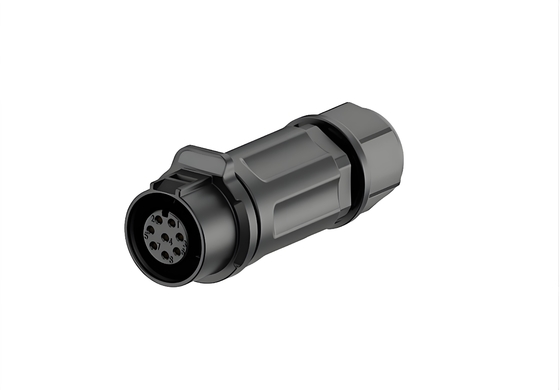

LP12 8-Pin IP68 Waterproof Connector 3A 125V Aviation Plug

Brand Name:	Cablein
Model Number:	CB-LP12S-0825BMB07/CB-LP12L-08251FB07
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Name:

LP12-Type 8-Pin Solderable 3A Power Wire-to-Wire Waterproof Connector Aviation Plug And Socket

Metal:

Gilded Brass

Material:

Plastic

Insertion Life:

1000 Times

Voltage:

Waterproof:

Withstand Temperature:

-40℃~+80℃

Dustproof:

100% Dustproof

Highlight:

8-pin solderable aviation connector

3A waterproof circular connector

waterproof solderable aviation plug

Product Description

LP12 8-Pin IP68 Waterproof Connector 3A 125V Aviation Plug

Product Specifications

Attribute	Value
Name	LP12-Type 8-Pin Solderable 3A Power Wire-to-Wire Waterproof Connector Aviation Plug And Socket
Metal	Gilded brass
Material	Plastic
Insertion life	1000 times
Voltage	125V
Waterproof	IP68
Withstand Temperature	-40℃~+80℃
Dustproof	100% Dustproof

Technical Details

Pins Number	2Pins	3Pins
Rated Voltage	125V	100V
Rated Current	5A	3A
Insulation voltage	1.5KV	1KV
IP CODE	IP68
Cable Jacket OD	⌀5-7mm
Assembly cable diameter	0.75-1mm²	0.34-0.75mm²/22-20AWG
Ambient temperature	-40℃~+80℃

Key Features

Material & Performance: Housing made of high-performance PBT engineering plastic with stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components ensure superior conductivity.
Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.

Application Industries

Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devices

Drawings

Frequently Asked Questions

Q: How to buy your products?

A: Contact With Our Sales Team online or By email

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and shipping way

Q: Can I get samples?

A: We're happy to offer samples; you just need to pay freight cost. Please provide your courier number and detailed address for immediate shipment.

Q: What is the operating temperature range of this device?

A: The device operates reliably within an ambient temperature range of -40°C to +80°C, with a maximum withstand temperature of 85°C for short-term exposure.

Q: Does the product meet industrial waterproof standards?

A: Yes, it carries an IP67 rating with optional IP68 certification available upon request.
