LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now

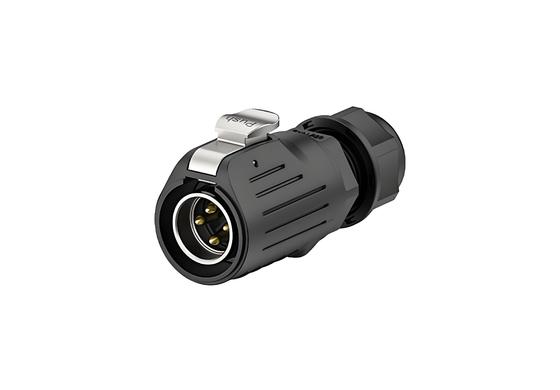

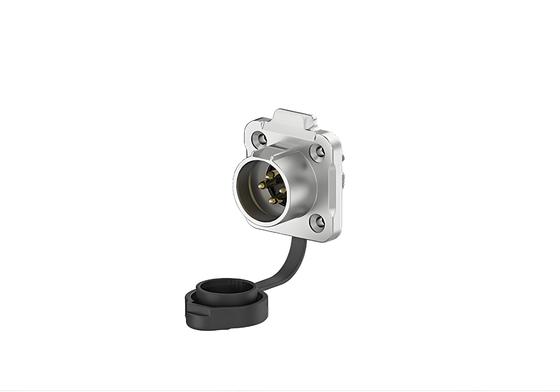

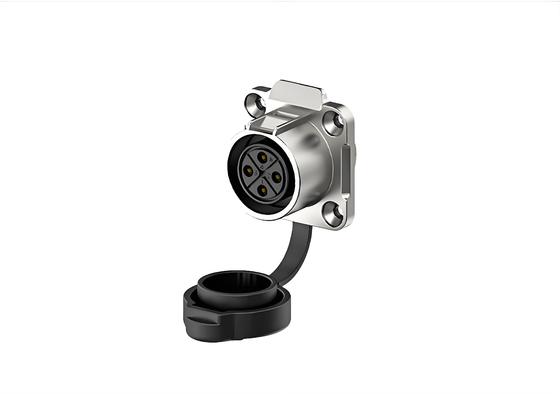

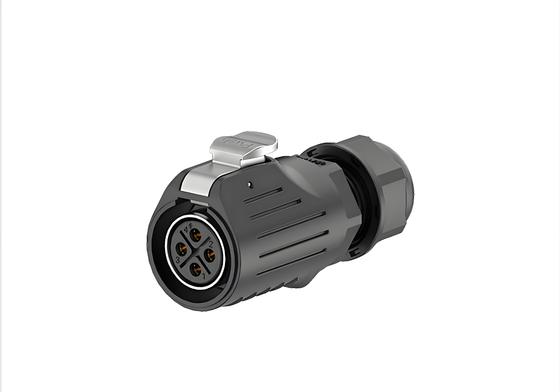

LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector
  • name
  • name
  • name
  • name

LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector
Corrosion Resistance:
High Corrosion Resistance
Flame Resistanc:
UL94 V-0
Waterproof:
IP68/IP67
Dustproof:
100% Dustproof
Withstand Temperature:
-40℃~+80℃
Metal:
Gilded Brass
Material:
Metal + Plastic
Highlight:

4-core waterproof connector IP68

,

20A flange mount connector

,

metal plastic circular connector

Product Description
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector
High-performance 4-core locking connector designed for industrial applications requiring reliable power transmission and environmental protection.
Product Specifications
  • Pin Configuration: 4 Pin
  • Current Rating: 20A Maximum
  • Material Construction: Metal + Plastic
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Maximum
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting
  • Outdoor UV Resistance: Certified
  • Cable Jacket OD: 2.5-4 mm²
Technical Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V | 250V
Rated Current 20A | 10A | 5A
Insulation Voltage 2.5KV | 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power: ⌀8-12mm | Standard Signal: ⌀5-6.5mm | Other: ⌀5-9mm
Assembly Cable Diameter 2.4-4mm²/14-12AWG | 1-1.5mm²/18-16AWG | 0.34-0.75mm²/22-20AWG
Ambient Temperature -40℃ to +80℃
Key Advantages
  • Material & Performance: High-performance PBT engineering plastic housing ensures stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components guarantee superior conductivity.
  • Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  • Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  • Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications.
  • High Current Capacity: Supports 20A power transmission for medium-to-high-power applications.
  • Versatile Compatibility: 4-core design allows multiple signal/power transmissions in a compact connector.
Application Industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devices
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector 0
Technical Drawings
LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector 1 LP20 Type 4-Core Locking Wire 20A Power Flange-Style Metal + Plastic Waterproof Connector 2
Frequently Asked Questions
How does the locking mechanism operate? Does it support quick mating/unmating?
Locking Operation: The cable is secured by rotating or pressing the connector's latch mechanism (specific method varies by model) to prevent loosening in high-vibration environments.
Mating/Unmating Performance: Quick plugging/unplugging is supported, but the locking mechanism must be disengaged first to avoid interface damage.
Can pin assignments or color markings be customized?
Yes, we support the following customizations:
1. Pin assignment modification (e.g., redefining Pin #1 as signal terminal)
2. Housing color options (red/blue/green, etc. for voltage level identification)
3. Cable length adjustments (specific requirements needed)
