Good price online

products details

Home > Products >
Waterproof Circular Connector
>
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing)
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now

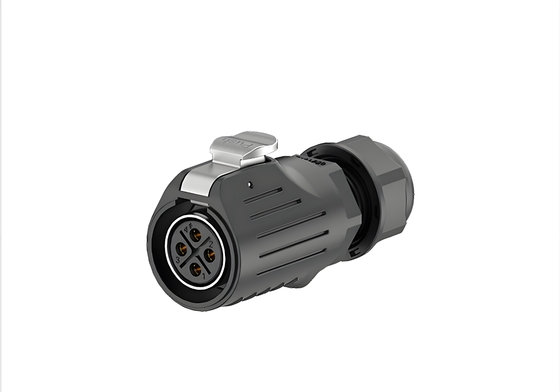

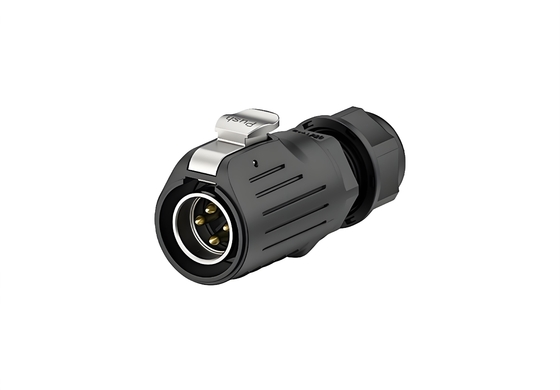

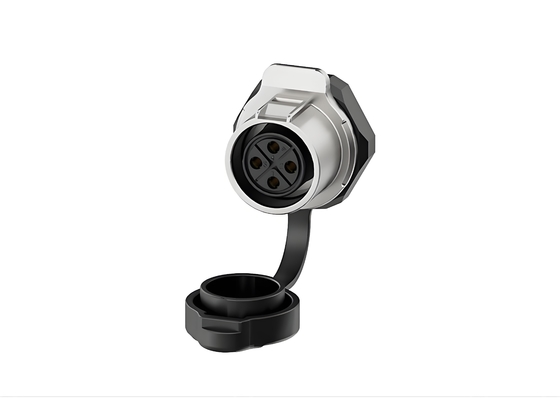

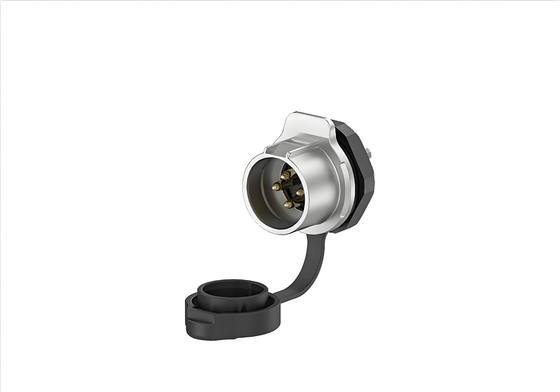

LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing)
  • name
  • name
  • name
  • name

LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing)

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing)
Waterproof Rating:
IP67
Mechnical Life:
1000 Times
Flame Resistance Rating:
UL94 V-0
Material:
Metal + Plastic
Color:
Black White
Current:
20A
Voltage:
100V
Supply Ability:
Sufficient supply capacity
Highlight:

4-core locking wire connector

,

IP67 waterproof panel mount connector

,

20A power metal plastic connector

Product Description
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing)
Specifications
  • Pin: 4 Pin
  • Current Rating(A): 20A Max
  • Material: Metal+plastic
  • Conenction Way: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Panel Mounting Type
  • Out Door UV Resistance: Pass
  • Cable Jacket OD: 2.5-4 mm²
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V
250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power:⌀8-12mm Standard Signal :⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) Advantages:
  1. Material & Performance:
    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
  5. High Current Capacity: Supports 20A power transmission, making it suitable for medium-to-high-power applications.
  6. Versatile Compatibility: The 4-core design allows for multiple signal/power transmissions in a single compact connector.
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) 0
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) 1
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) 2
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) Application industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devies
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) 3
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) DrawingLP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) 4
LP20 4-Core Locking Wire 20A Power IP67 Waterproof Connector Panel Mount (Metal + Plastic Housing) 5
FAQ
Q: What is the IP67 waterproof rating, and where can this connector be used?

The IP67 rating ensures complete protection against dust (IP6X) and temporary immersion in water up to 1 meter for 30 minutes (IPX7). This makes the LP20 connector ideal for harsh environments, including:

1.Outdoor industrial equipment

2.Marine/agricultural machinery

3.Automotive or renewable energy systems

4.Any application requiring resistance to moisture, dust, or vibrations.

Q: How does the locking wire mechanism improve reliability?

The locking wire design secures the connection by mechanically preventing accidental disengagement, even under high vibration or tension. Benefits include:

1.Stable power transmission (critical for 20A high-current applications).

2.Reduced downtime from loose connections.

3.Metal+plastic hybrid housing enhances durability while keeping the unit lightweight.
