LP20 2-Core 20A IP67 Waterproof Power Connector Metal Plastic Panel Mount

Brand Name:	Cablein
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Name:

LP20 2-Core Locking Wire 20A Power Connector – IP67 Waterproof (Metal+Plastic) Panel Mount Cable-to-Cable

Material:

Metal + Plastic

Current:

20A

Voltage:

100V

Waterproof Rating:

IP67

Flame Resistance Rating:

UL94 V-0

Supply Ability:

Sufficient supply capacity

Highlight:

20A waterproof power connector

IP67 panel mount connector

metal plastic circular connector

Product Description

LP20 2-Core 20A IP67 Waterproof Power Connector Metal Plastic Panel Mount

Product Specifications

Attribute	Value
Name	LP20 2-Core Locking Wire 20A Power Connector – IP67 Waterproof (Metal+Plastic) Panel Mount Cable-to-Cable
Material	Metal + Plastic
Current	20A
Voltage	100V
Waterproof Rating	IP67
Flame Resistance Rating	UL94 V-0

Key Features

Pin: 2 Pin
Current Rating: 20A Max
Material: Metal+plastic construction
Connection Method: Push-button snap fastener
Operating Voltage: 500V Max
Assembly Wire: IP-Rated Locking Gland
Mounting Type: Panel Mounting
UV Resistance: Passed outdoor testing
Cable Jacket OD: 2.5-4 mm²

Technical Specifications

Pins Number	2Pins	3Pins	4Pins
Rated Voltage	500V	250V
Rated Current	20A	10A	5A
Insulation voltage	2.5KV	1.5KV
IP CODE	IP68

Product Advantages

Premium Materials: High-performance PBT engineering plastic housing with gold-plated conductive components for stable electrical properties, heat resistance, and corrosion resistance.
Secure Locking: Push-to-lock snap-fit design ensures secure mating and smooth operation.
Waterproof Protection: Standard IP67 rating (IP68 optional) for reliable performance in wet environments.
Certified Quality: Complies with TUV, ISO, CE, and RoHS certifications.
High Current Capacity: Supports 20A power transmission for medium-to-high-power applications.
Versatile Design: Compact connector allows for multiple signal/power transmissions.

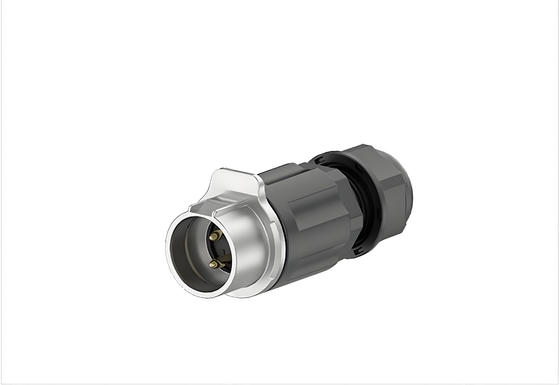

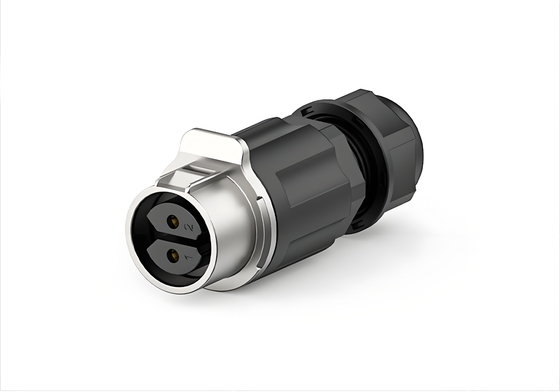

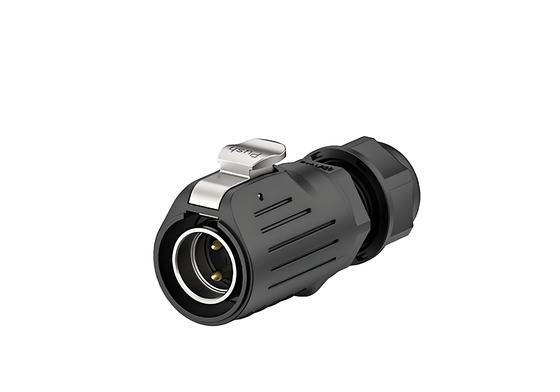

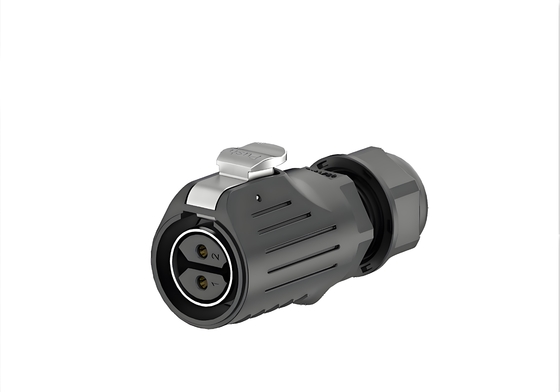

Product Images

Application Industries

Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devices

Technical Drawings

Frequently Asked Questions

How does the IP67 rating benefit my application?

The IP67 waterproof certification ensures:

Complete dust resistance (6) and 30-minute waterproofing in 1m depth (7)
Reliability in harsh environments: outdoor industrial equipment, marine applications, or automated machinery exposed to washdown
Long-term durability with the metal-plastic hybrid housing resisting corrosion (salt/fog) and mechanical stress

Pro Tip: For permanent underwater use (>1m), consider our LP20-IP68 variant with enhanced depth protection.

Why choose a cable-to-cable locking design over standard connectors?

This 2-core locking wire system provides:

Vibration-proof security - Threaded coupling prevents accidental disconnection (critical for 20A high-current applications)
Hybrid material advantages:
- Metal components: EMI shielding & structural integrity
- Plastic elements: 30% weight reduction vs. all-metal designs
Maintenance savings - Field-replaceable contacts without full disassembly
