LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount
  • name
  • name
  • name
  • name

LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
LP20 3-Core Locking Wire 20A Power Connector – IP67 Waterproof (Metal+Plastic) Panel Mount Cable-to-Cable
Waterproof Rating:
IP67
Material:
Metal + Plastic
Flame Resistance Rating:
UL94 V-0
Mechnical Life:
1000 Times
Color:
Black White
Supply Ability:
Sufficient supply capacity
Highlight:

20A waterproof power connector

,

IP67 panel mount connector

,

3-core waterproof circular connector

Product Description
LP20 3-Core 20A IP67 Waterproof Power Connector Metal Plastic Panel Mount
Product Specifications
Attribute Value
Name LP20 3-Core Locking Wire 20A Power Connector – IP67 Waterproof (Metal+Plastic) Panel Mount Cable-to-Cable
Waterproof Rating IP67
Material Metal + Plastic
Flame Resistance Rating UL94 V-0
Mechanical Life 1000 times
Color Black, White
Technical Details
  • Pin Configuration: 3 Pin
  • Current Rating: 20A Max
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Panel Mounting
  • UV Resistance: Pass (suitable for outdoor use)
  • Cable Jacket OD: 2.5-4 mm²
Performance Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V | 250V
Rated Current 20A 20A 10A 5A 5A 5A 5A
Insulation Voltage 2.5KV | 1.5KV
IP Code IP68
Ambient Temperature -40℃ to +80℃
Key Advantages
  • Premium Materials: High-performance PBT engineering plastic housing with gold-plated conductive components for stable electrical properties, heat resistance, and corrosion resistance.
  • Secure Connection: Push-to-lock snap-fit design ensures reliable mating and smooth operation.
  • Waterproof Protection: Standard IP67 rating (IP68 optional) for reliable performance in wet environments.
  • Certified Quality: Complies with TUV, ISO, CE, and RoHS certifications for global market acceptance.
  • High Power Capacity: Supports 20A power transmission for medium-to-high-power applications.
  • Versatile Design: Compact 3-core configuration allows for multiple signal/power transmissions.
Product Images

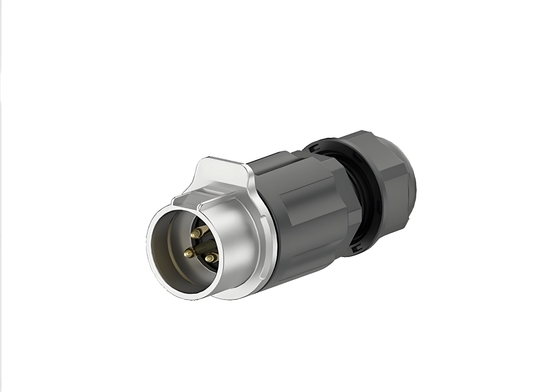

LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount 0

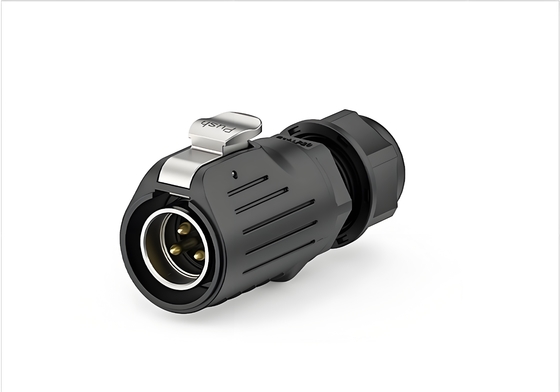

LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount 1

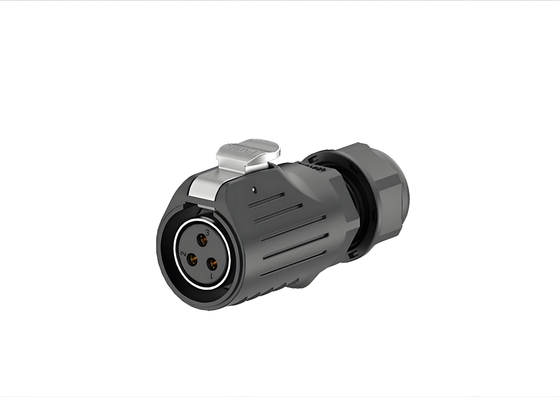

LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount 2

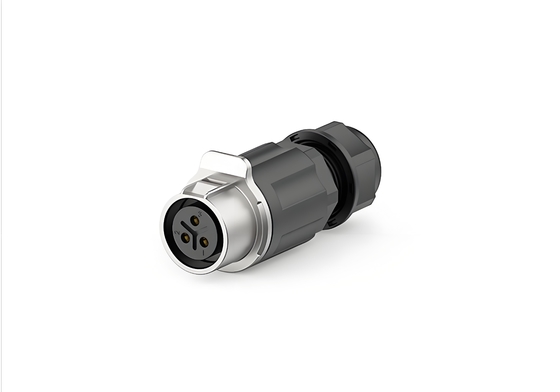

LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount 3
Application Industries
  • Automation Equipment
  • LED Lighting Systems
  • Security Equipment
  • Telecommunication Devices
  • New Energy Applications
  • Electronic Devices
LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount 4
Technical Drawings
LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount 5
LP20 3-Core 20A IP67 Waterproof Power Connector Panel Mount 6
Frequently Asked Questions
What is the maximum current and voltage rating of the LP20 3-Core connector?
The LP20 3-Core connector is rated for a maximum current of 20A and a voltage rating of 250V AC. It is designed for reliable power transmission in demanding environments while maintaining safety and durability.
Is the LP20 connector suitable for outdoor or wet environments?
Yes, the LP20 connector features an IP67 waterproof rating, meaning it is dust-tight and can withstand temporary immersion in water (up to 1 meter for 30 minutes). Its metal-plastic panel mount construction ensures durability in outdoor, industrial, or marine applications.
