LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass
  • name
  • name
  • name
  • name

LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Waterproof Level:
IP67
Contact Pin Material:
Gold-Plated Brass
Number Of Contacts:
2-8
Mating Style:
Male And Female
Voltage:
100V
Installation Style:
AC/DC
Diameter:
23.6mm
Conenction Way:
Self-locking Butt Type
Supply Ability:
Sufficient supply capacity
Highlight:

20A waterproof circular connector

,

IP67 gold-plated brass connector

,

2-pin waterproof electrical connector

Product Description
LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass
Product Specifications
Attribute Value
Waterproof Level IP67
Contact Pin Material Gold-Plated Brass
Number Of Contacts 2-8
Mating Style Male and Female
Voltage 100V
Installation Style AC/DC
Diameter 23.6mm
Connection Way Self-locking butt Type
Detailed Features
  • Pin: 2 Pin
  • Current Rating: 20A Max
  • Material: Metal+plastic construction
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting
  • UV Resistance: Passed outdoor durability tests
  • Cable Jacket OD: 2.5-4 mm²
Technical Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Key Advantages
  • Premium Materials: High-performance PBT housing with gold-plated brass contacts for superior conductivity and heat resistance
  • Secure Locking: Push-to-lock snap-fit design ensures reliable connections
  • Waterproof Protection: IP67 standard rating (IP68 available) for harsh environments
  • Certified Quality: Complies with TUV, ISO, CE, and RoHS standards
Product Images

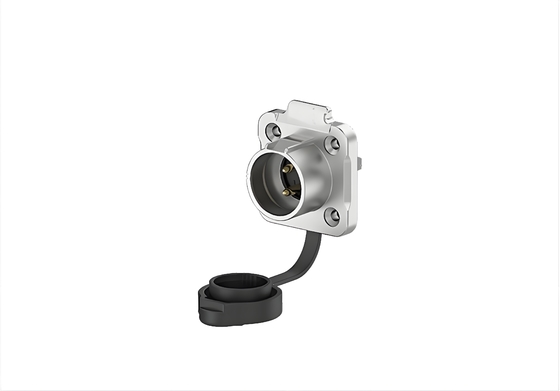

LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 0

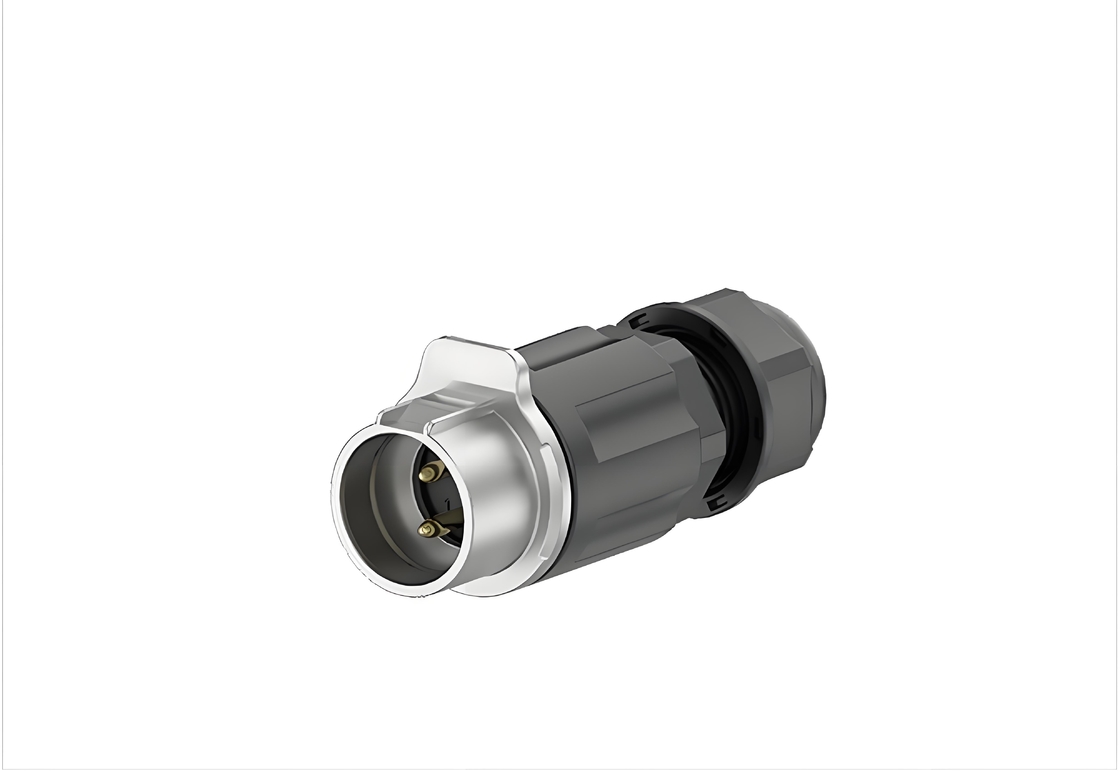

LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 1

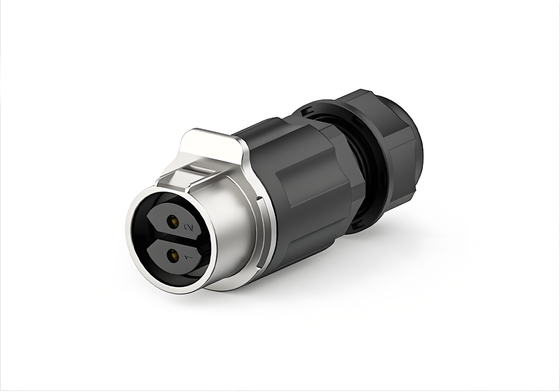

LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 2

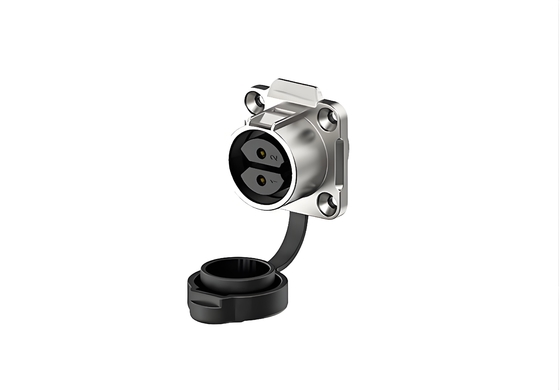

LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 3
LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 4
LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 5
Application Industries
  • Automation Equipment
  • LED Lighting Systems
  • Security Equipment
  • Telecommunication Devices
  • New Energy Applications
  • Electronic Devices
Application Images
LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 6
LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 7
LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 8
Technical Drawings
LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 9
LP20 20A 2-Pin Waterproof Connector IP67 Gold-Plated Brass 10
Frequently Asked Questions
What is the IP (Ingress Protection) rating of this flange connector, and what does it ensure?
This LP20 connector features an IP67 rating when properly mated and installed. This ensures complete protection against dust ingress (6) and protection against the effects of temporary immersion in water up to 1 meter for 30 minutes (7). It is ideal for applications exposed to harsh environments, moisture, dust, or occasional washdowns.
Is the flange designed for easy panel mounting, and what is the recommended panel cutout size?
Yes, the hybrid metal-plastic flange is specifically designed for robust and straightforward panel mounting. The metal provides structural strength for a secure fit, while the plastic ensures electrical insulation. The recommended panel cutout size is a 20mm diameter hole. The included locknut secures the connector firmly to the panel, creating a reliable seal.
What is the maximum voltage and temperature range for this 20A connector, and what wire gauge should I use with the solder cups?
This connector is rated for up to 250V AC/DC and a maximum current of 20A. Its operational temperature range is -25°C to +85°C. The solder termination cups are designed to accommodate a recommended wire gauge of 16 to 12 AWG, providing a secure and permanent connection for high-current applications.
