LP20 5 Pin IP67 Waterproof Connector 10A Flange Mount Metal-Nylon
  • name
  • name
  • name
  • name

LP20 5 Pin IP67 Waterproof Connector 10A Flange Mount Metal-Nylon

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Assembly Wire:
Soldering Or Screw Fitting
Operating Temperature:
-40°C To +85°C
Interface Type:
AC/DC
Contacts Number:
2-12 Pins
Connector Type:
Waterproof Connector
Voltage Rating:
250V
Protection Level:
IP67
Connection:
Terminal Box/compensation Cable/head
Highlight:

IP67 waterproof circular connector

,

5 pin flange mount connector

,

metal-nylon waterproof connector 10A

Product Description
LP20 Series 5 Pin 10A Flange Mount Solderable Waterproof Connector - Metal & Nylon Composite
Product Specifications
Attribute Value
Assembly Wire Soldering Or Screw Fitting
Operating Temperature -40°C to +85°C
Interface Type AC/DC
Contacts Number 2-12 pins
Connector Type Waterproof Connector
Voltage Rating 250V
Protection Level IP67
Connection terminal box/compensation cable/head
Detailed Features
  • Pin: 5 Pin
  • Current Rating: 10A Max
  • Material: Metal + plastic composite
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting
  • Outdoor UV Resistance: Certified
  • Cable Jacket OD: 1-1.5 mm²
Technical Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V | 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power: ⌀8-12mm | Standard Signal: ⌀5-6.5mm | Other: ⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Key Advantages
  • Material & Performance: High-performance PBT engineering plastic housing ensures stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components guarantee superior conductivity.
  • Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  • Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  • Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.

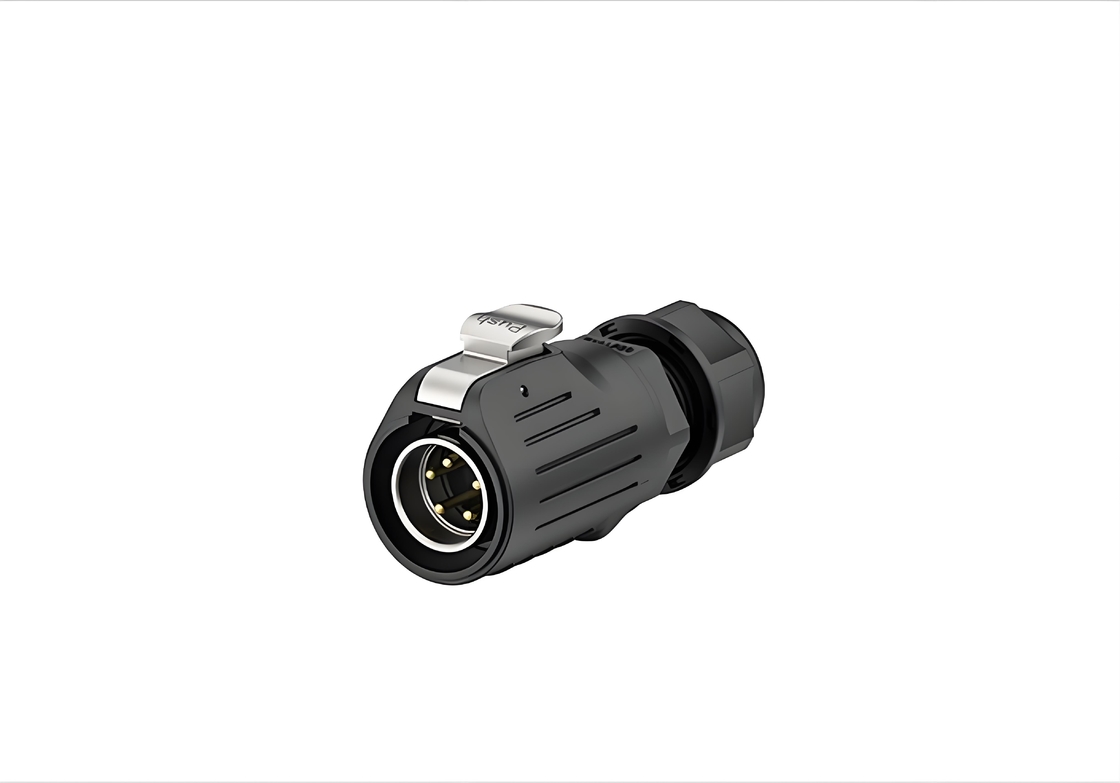

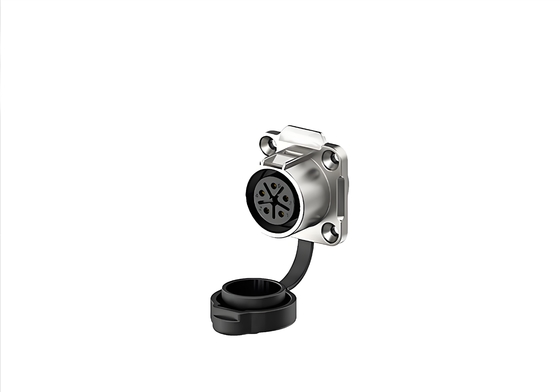

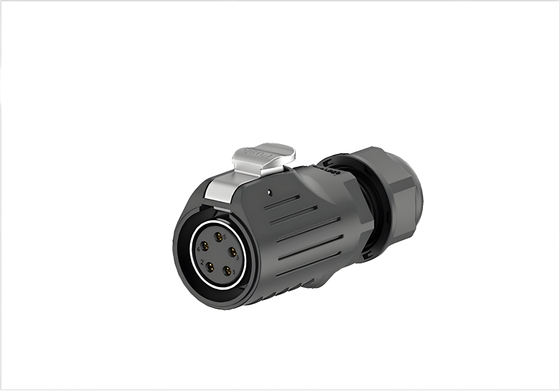

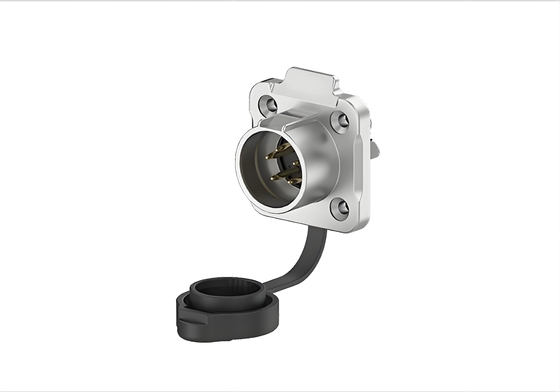

LP20 5 Pin IP67 Waterproof Connector 10A Flange Mount Metal-Nylon 0 LP20 5 Pin IP67 Waterproof Connector 10A Flange Mount Metal-Nylon 1 LP20 5 Pin IP67 Waterproof Connector 10A Flange Mount Metal-Nylon 2
