LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount
  • name
  • name
  • name
  • name

LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Waterproof Level:
IP68
Shell Style:
FGG Straight Plug
Style:
Screw
Contact Pin Material:
Gold-Plated Brass
Related Voltage:
125V-300V
Current Relating:
2A-15A
Shell Material:
PVC/Nylon/PVC+Nylon
Mating Style:
Male And Female
Color:
Black And White
Temperature Range:
-40℃~+105℃
Highlight:

7-pin IP68 waterproof connector

,

flange mount circular connector

,

10A waterproof electrical connector

Product Description
LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount
Product Specifications
Attribute Value
Waterproof Level IP68
Shell Style FGG Straight plug
Style Screw
Contact Pin Material Gold-Plated Brass
Related Voltage 125V-300V
Current Relating 2A-15A
Shell Material PVC/Nylon/PVC+Nylon
Mating Style Male and Female
Color Black and white
Temperature Range -40℃~+105℃
Detailed Features
  • Pin: 7 Pin
  • Current Rating: 10A Max
  • Material: Metal+plastic composite
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting
  • UV Resistance: Pass
  • Cable Jacket OD: 1-1.5 mm²
Technical Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V | 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Key Advantages
  • Material & Performance: High-performance PBT engineering plastic housing with gold-plated conductive components for stable electrical properties, heat resistance, and corrosion resistance.
  • Secure Locking: Push-to-lock snap-fit design ensures secure mating and smooth operation.
  • Waterproof Design: IP67 standard (IP68 optional) for reliable protection in wet environments.
  • Certifications: Complies with TUV, ISO, CE, and RoHS standards.

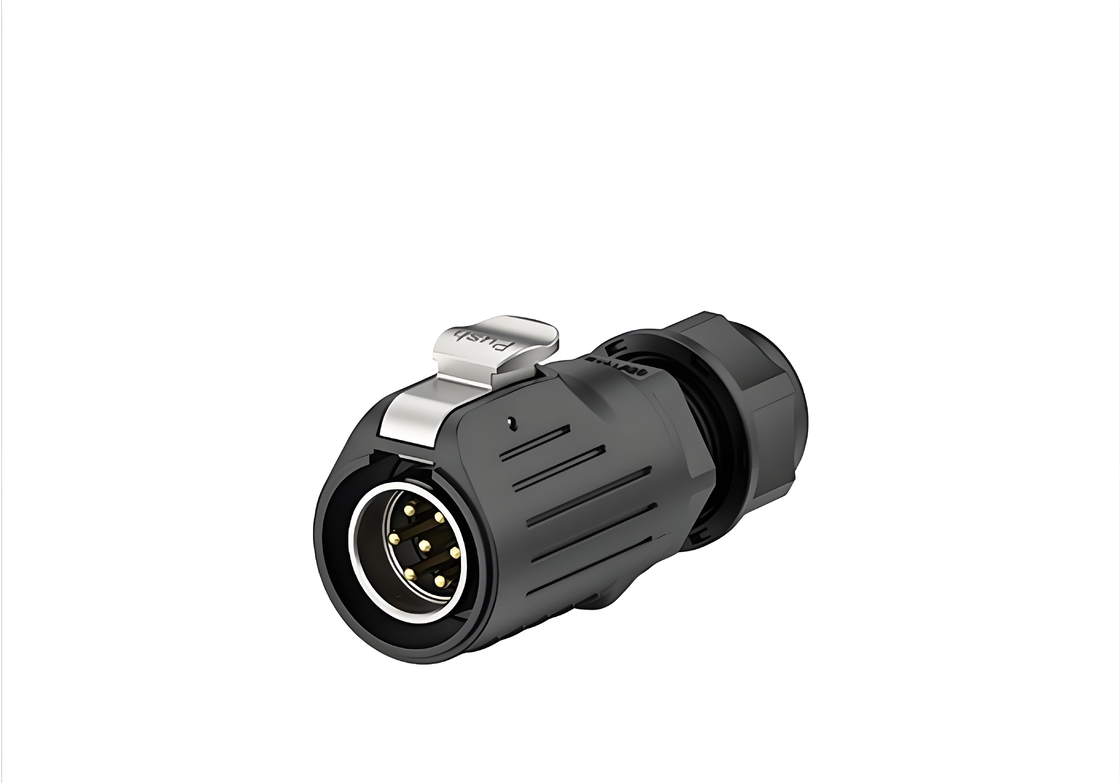

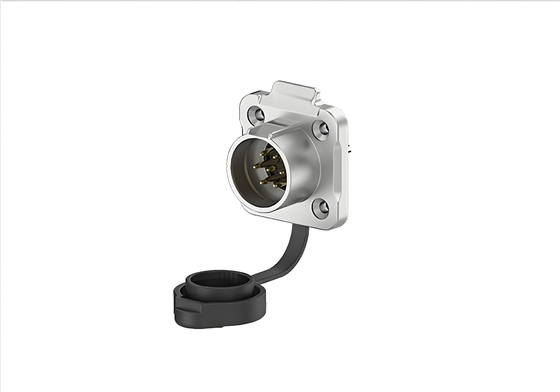

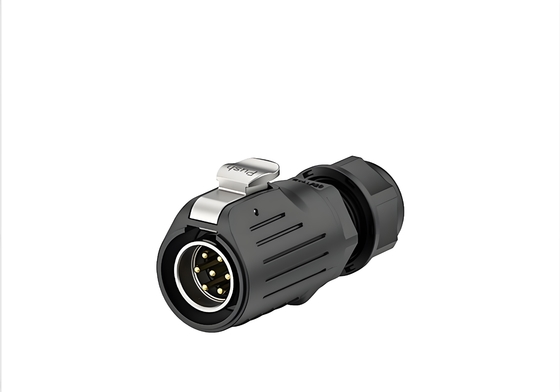

LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount 0 LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount 1 LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount 2
Application Industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devices

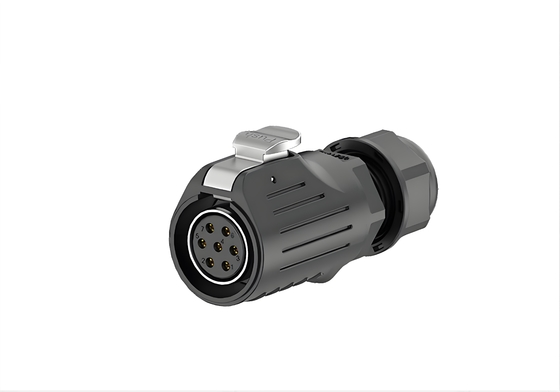

LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount 3
Technical Drawings

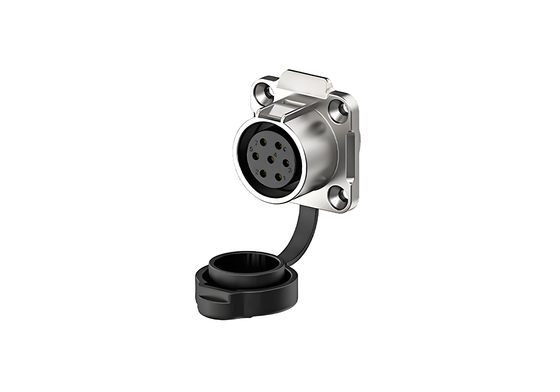

LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount 4 LP20 Series 7-Pin IP68 Waterproof Connector 10A Flange Mount 5
