IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now
IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock
  • name
  • name
  • name
  • name

IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Protection Level:
IP68
Sealing Material:
Silicone, Rubber
Configuration:
Brass (gold Plated)
Mechnical Life:
1000 Times
Cable Guage:
Per Your Requirement
Housing Material:
Nylon, PVC
Lock Style:
Push Pull Self-lock
Mating Style:
Screw
Supply Ability:
Sufficient supply capacity
Highlight:

IP67 waterproof panel mount connector

,

5-pin LP20 series connector

,

waterproof circular electrical connector

Product Description
10A IP67 Panel Mount Power Connector, 5-Pin LP20 Series, Metal-Nylon Housing, Solder Type
Product Specifications
Attribute Value
Protection Level IP68
Sealing Material Silicone, Rubber
Configuration Brass (gold plated)
Mechanical Life 1000 times
Cable Gauge Per your requirement
Housing Material Nylon, PVC
Lock Style Push pull self-lock
Mating Style Screw
Technical Details
  • Pin: 5 Pin
  • Current Rating: 20A Max
  • Material: Metal+plastic construction
  • Connection Method: Push-button snap fastener
  • Operating Voltage: 500V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Panel Mounting
  • Outdoor UV Resistance: Pass
  • Cable Jacket OD: 2.5-4 mm²
Performance Specifications
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V | 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power: ⌀8-12mm Standard Signal: ⌀5-6.5mm Other: ⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Key Advantages
  • Material & Performance: High-performance PBT engineering plastic housing ensures stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components guarantee superior conductivity.
  • Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  • Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  • Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
Product Images

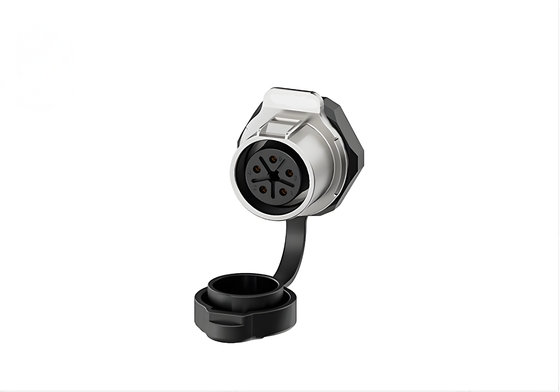

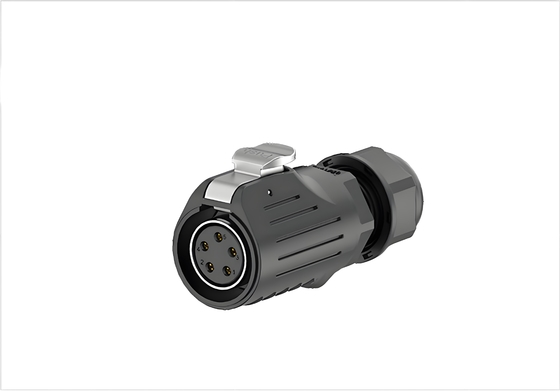

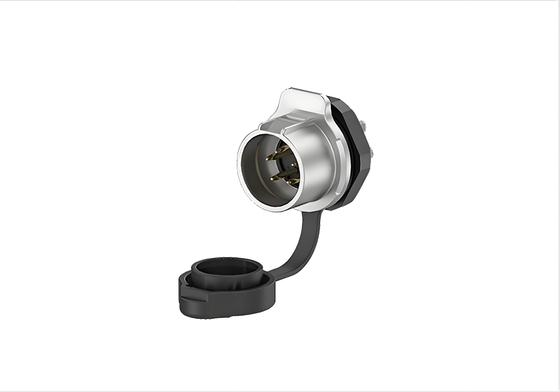

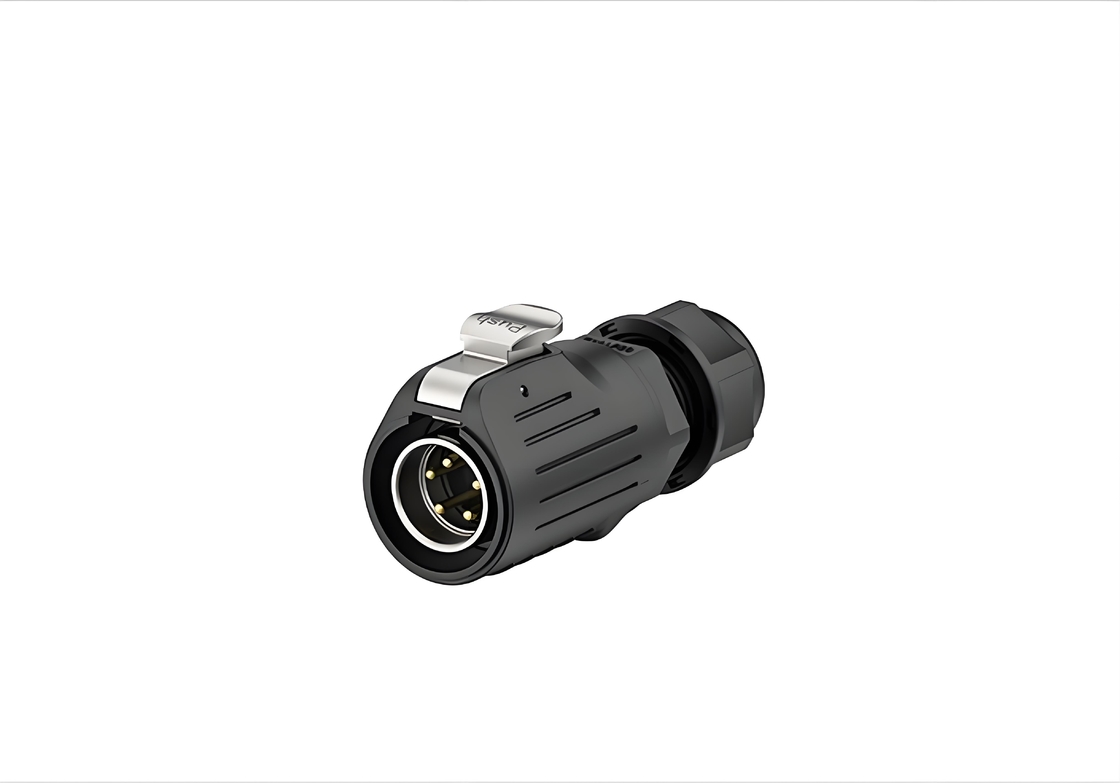

IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock 0 IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock 1 IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock 2
Application Industries
Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devices
IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock 3
Technical Drawings
IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock 4 IP68 Waterproof 5-Pin LP20 Connector, 20A Panel Mount, Push-Pull Lock 5
Frequently Asked Questions
What are the key advantages of the Metal-Nylon Housing design in this LP20 Series connector?

The hybrid Metal-Nylon Housing offers a perfect balance of durability and functionality. The metal shell provides superior mechanical strength, excellent shielding against electromagnetic interference (EMI), and enhanced protection in rugged environments. The nylon base offers high impact resistance, exceptional insulation properties, and corrosion resistance while reducing overall weight. This combination ensures optimal performance in demanding applications.

Is the solder termination type suitable for high-vibration environments, and what are its benefits?

Yes, the solder termination is particularly well-suited for high-vibration applications. It creates a permanent, gas-tight connection that maintains electrical integrity under stress and prevents loosening over time. This termination method ensures superior conductivity and long-term reliability, making it ideal for industrial machinery, transportation equipment, and other applications where mechanical stability is critical.

Tags:
