LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals
  • name
  • name
  • name
  • name

LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Contact Material:
PVC/ TPE
Shock Resistance:
100g.6ms
Cable Type:
Coaxial/Twisted Pair
Cable Length:
Per Your Requirement
Waterproof Rating:
IP67
Conductor Material:
Copper
Operation Temperature:
-20℃-+80℃
Locking Style:
Push Pull Self Locking
Supply Ability:
Sufficient supply capacity
Highlight:

12-pin waterproof signal connector

,

metal-plastic shell circular connector

,

pre-wired solder terminals connector

Product Description
LP20 12-Pin 5A Signal Waterproof Connector
Metal-plastic shell connector with pre-wired solder terminals for reliable industrial applications
Product Specifications
Pin Configuration: 12 Pin
Current Rating: 5A Maximum
Material: Metal and Plastic Composite
Connection Method: Push-button Snap Fastener
Operating Voltage: 250V Maximum
Assembly Wire: IP-Rated Locking Gland
Mounting Type: Wire-to-Wire
Outdoor UV Resistance: Certified Pass
Cable Jacket OD: 0.34-0.75 mm²
Technical Data Sheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation Voltage 2.5KV 1.5KV
IP Code IP68
Cable Jacket OD Standard Power: ⌀8-12mm | Standard Signal: ⌀5-6.5mm | Other: ⌀5-9mm
Assembly Cable Diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient Temperature -40℃ to +80℃
Key Advantages
Material & Performance: Housing constructed from high-performance PBT engineering plastic ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements in high-temperature environments.
Secure Locking Mechanism: Push-to-lock snap-fit design provides secure mating with smooth insertion and removal.
Waterproof Design: Standard IP67 rating (IP68 optional) delivers precise waterproof protection for demanding applications.
Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements and quality standards.
Product Images

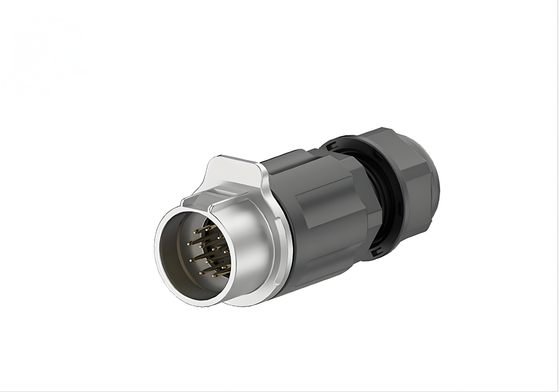

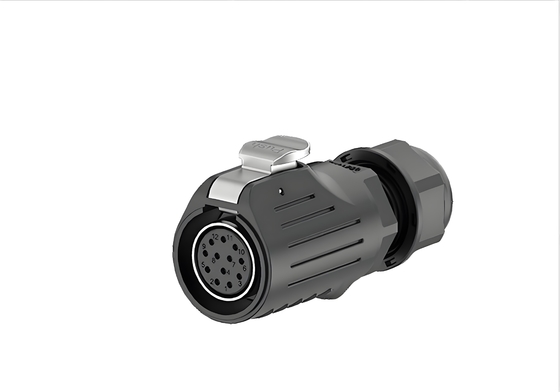

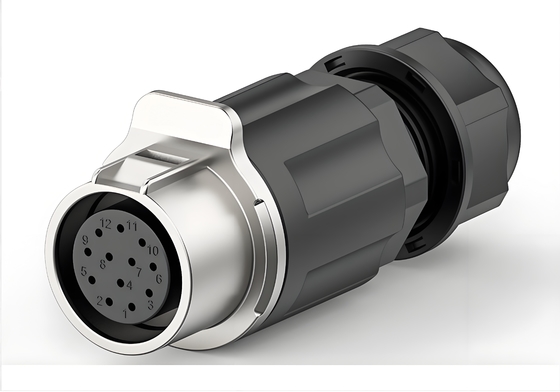

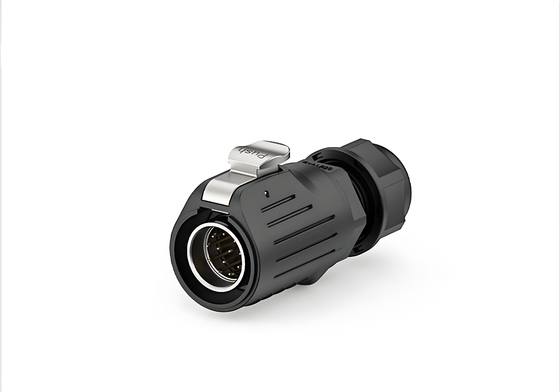

LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 0 LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 1 LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 2 LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 3 LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 4 LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 5 LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 6
Application Industries
Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devices
LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 7
Technical Drawings
LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 8 LP20 12-Pin 5A Signal Waterproof Connector, Metal-Plastic Shell With Pre-wired Solder Terminals 9
Frequently Asked Questions
What is the IP rating of this connector, and what does it guarantee?
This LP20 connector is rated IP67 when properly mated. The "6" indicates complete protection against dust ingress, and the "7" guarantees it can withstand temporary immersion in water up to 1 meter deep for 30 minutes. This makes it an ideal solution for applications exposed to rain, splashing, or harsh, wet environments.
The product mentions "pre-wired solder terminals." What does this include, and how does it simplify installation?
This means one half of the connector pair (often the cable mount side) comes with wires already soldered to the internal pins within the housing. This significantly simplifies installation: saves time by eliminating the need to solder tiny pins in cramped spaces, reduces errors with factory-soldered reliable connections, and enables easy connection by simply soldering external cable wires to the provided pre-wired leads, then insulating joints with heat-shrink tubing for a complete waterproof seal.
What are the primary applications for this 5A, 12-pin connector?
With its 5A current rating per pin, robust metal-plastic shell, and high IP67 waterproof rating, this connector is perfectly suited for transmitting power and signals in demanding industrial and outdoor applications. Common uses include industrial machinery for connecting sensors and control panels, LED lighting systems for outdoor applications, agricultural and automotive equipment in harsh environments, and security systems for outdoor cameras and access control.
