LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell
  • name
  • name
  • name
  • name

LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Corrosion Resistance:
High Corrosion Resistance
Application:
Power, Led Light, Controller，signal
Current Rating:
5A
Connection:
Terminal Box/compensation Cable/head
Ip Level:
Ip67
Withstand Temperature:
-40℃~+80℃
Supply Ability:
Sufficient supply capacity
Highlight:

9-pin waterproof signal connector

,

metal shell waterproof circular connector

,

solder terminal waterproof cable connector

Product Description
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector
Metal Shell, Plastic Interface, Solder Terminals - Designed for reliable signal transmission in demanding industrial environments.
Product Specifications
  • Pin Configuration: 9 Pin
  • Current Rating: 5A Maximum
  • Material: Metal Shell with Plastic Interface
  • Connection Method: Push-button Snap Fastener
  • Operating Voltage: 250V Maximum
  • Wire Assembly: IP-Rated Locking Gland
  • Mounting Type: Wire-to-Wire
  • UV Resistance: Outdoor Rated
  • Cable Jacket OD: 0.34-0.75 mm²
Technical Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation Voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power: ⌀8-12mm Standard Signal: ⌀5-6.5mm Other: ⌀5-9mm
Assembly Cable Diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient Temperature -40℃~+80℃
Key Advantages
  • Material & Performance: Housing made of high-performance PBT engineering plastic ensures stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components guarantee superior conductivity in high-temperature environments.
  • Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  • Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  • Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.

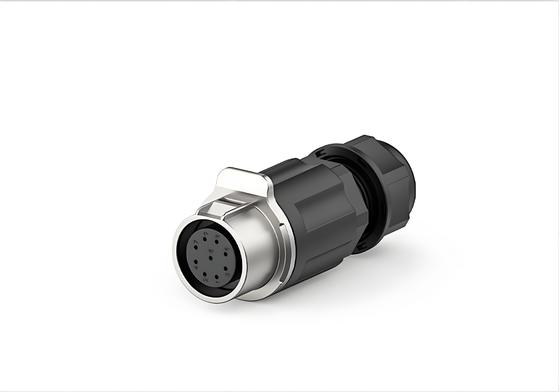

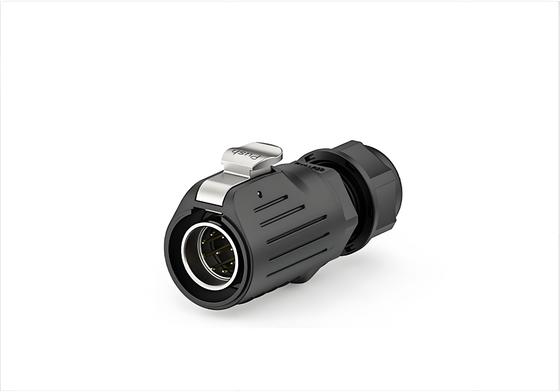

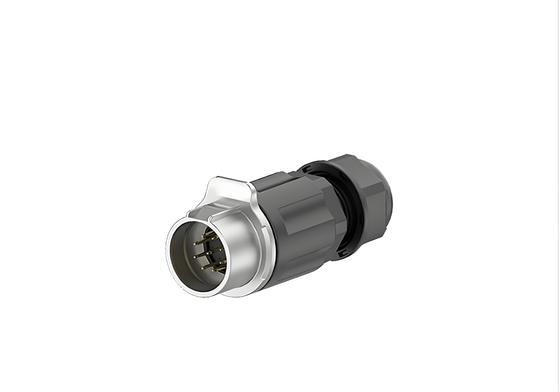

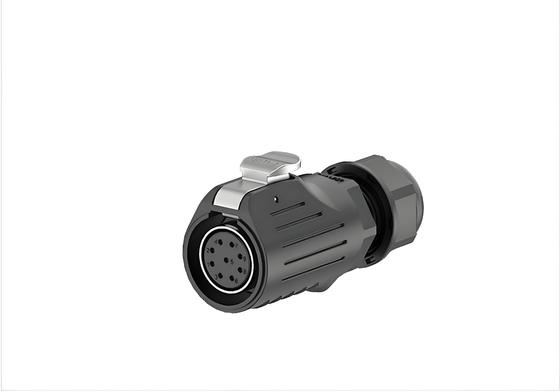

LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell 0 LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell 1 LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell 2 LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell 3
Application Industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devices
LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell 4
Technical Drawings
LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell 5 LP20 9-Pin 5A Signal Waterproof Circular Connector with IP67 Rating and Metal Shell 6
Frequently Asked Questions
What are the key applications of the LP20 9-Pin 5A Waterproof Connector?
This connector is designed for robust signal transmission in demanding environments. It is ideal for industrial automation, outdoor equipment, marine electronics, and any application requiring reliable cable-to-cable connections with waterproof protection. The 5A current rating and 9-pin configuration make it suitable for low-power control systems, sensor networks, and data communication setups.
How does the metal shell and plastic interface enhance performance?
The metal shell provides superior mechanical strength, EMI shielding, and durability against physical impacts and corrosion. The plastic interface ensures lightweight insulation and resistance to environmental factors like moisture, UV exposure, and chemicals. Together, they offer a balanced combination of protection, longevity, and reliable signal integrity.
Is this connector truly waterproof, and what standards does it meet?
Yes, the LP20 connector features a waterproof design with IP67 or higher ratings (depending on configuration), meaning it can withstand temporary submersion in water (up to 1 meter for 30 minutes). The solder terminals ensure a secure, gas-tight connection when properly installed, preventing moisture ingress. For specific certification details, refer to the product datasheet or contact our support team.
