LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
  • name
  • name
  • name
  • name

LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Waterproof:
IP67
Housing Material:
Nylon
Assembly Wire:
Soldering Or Screw Fitting
Flame Resistance Rating:
UL94 V-0
Operating Temperature:
-40°C To 85°C
Colour:
Black
Warranty:
2 Years
Temperature Range:
-40-105℃
Highlight:

12-pin waterproof flange mount connector

,

metal shell waterproof circular connector

,

solder terminal waterproof signal connector

Product Description

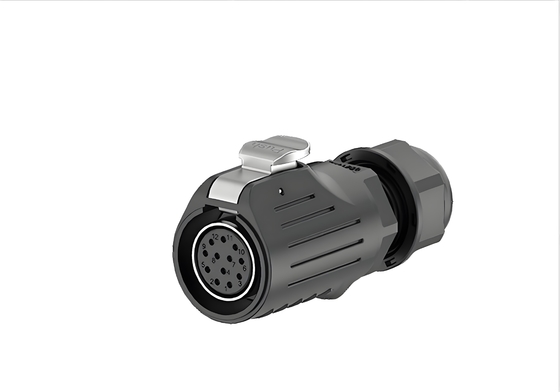

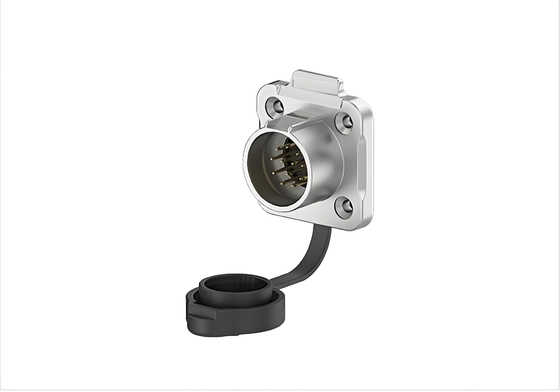

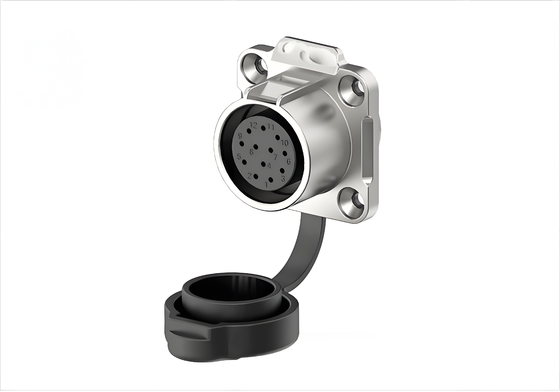

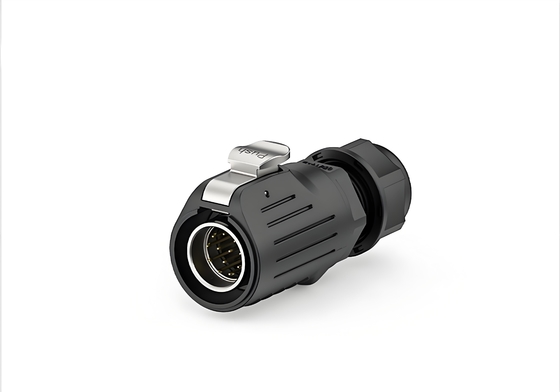

LP20 12-Pin 5A Signal Flange Mount Waterproof Connector
Metal Shell, Plastic Interface, Solder Terminals
Product Specifications
Pin Configuration: 12 Pin
Current Rating: 5A Maximum
Material: Metal Shell with Plastic Interface
Connection Method: Push-button Snap Fastener
Operating Voltage: 250V Maximum
Assembly Wire: IP-Rated Locking Gland
Mounting Type: Flange Mounting
Outdoor UV Resistance: Certified Pass
Cable Jacket OD: 0.34-0.75 mm²
Technical Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation Voltage 2.5KV 1.5KV
IP Code IP68
Cable Jacket OD Standard Power: ⌀8-12mm Standard Signal: ⌀5-6.5mm Other: ⌀5-9mm
Assembly Cable Diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient Temperature -40℃ to +80℃
Key Advantages
Material & Performance
High-performance PBT engineering plastic housing ensures stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements in high-temperature environments.
Secure Locking Mechanism
Push-to-lock snap-fit design provides secure mating and smooth insertion/removal operation.
Waterproof Design
Standard IP67 rating (IP68 optional) provides precise waterproof protection for demanding applications.
Certifications & Compliance
Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements and quality standards.
Application Industries
Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devices
LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 0
Technical Drawings
LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 1 LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 2
Frequently Asked Questions
What are the typical applications for this flange mount connector?
The LP20 flange mount connector is ideal for industrial control systems, outdoor telecommunications equipment, heavy machinery, and marine electronics where secure panel mounting and environmental protection are required. Its 12-pin configuration and 5A rating make it suitable for power distribution and signal transmission in demanding conditions.
How does the metal-plastic hybrid design enhance performance?
The stainless steel metal shell provides electromagnetic shielding (EMI/RFI protection), mechanical robustness, and corrosion resistance, while the plastic interface ensures electrical insulation and weight reduction. This combination delivers optimal protection against both physical stress and environmental factors.
What waterproof rating does this connector achieve?
When properly installed with the included sealing gasket, the connector achieves IP68 rating, meaning it is dust-tight and can withstand continuous submersion in water up to 1.5 meters depth for 30 minutes. The solder terminals further prevent moisture ingress through secure, sealed connections.
