LP20 4-Pin 20A Power Flange Mount Waterproof Circular Connector IP68 Rated
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now

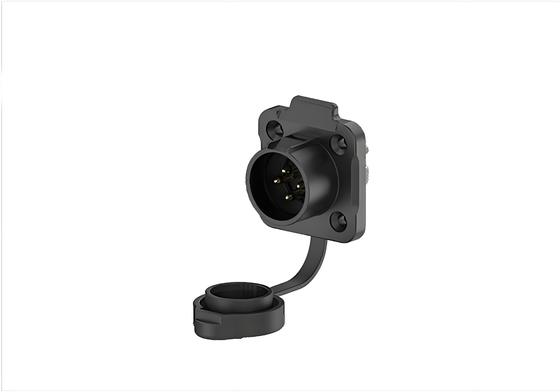

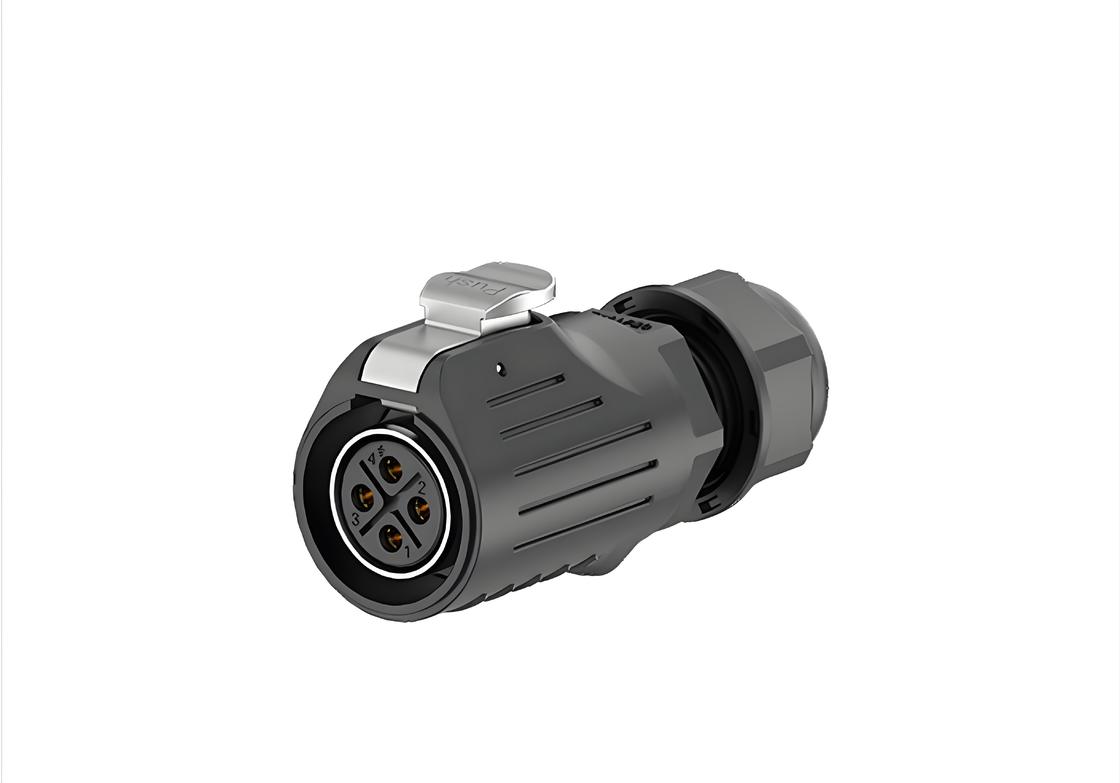

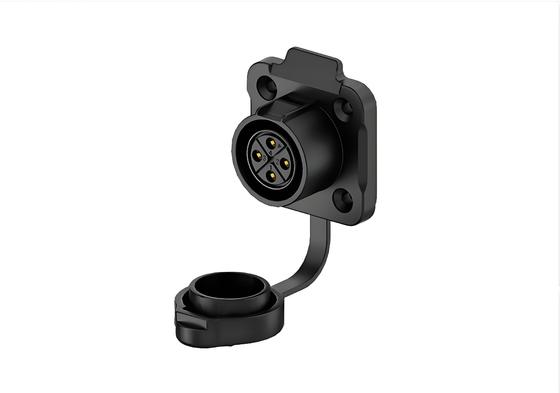

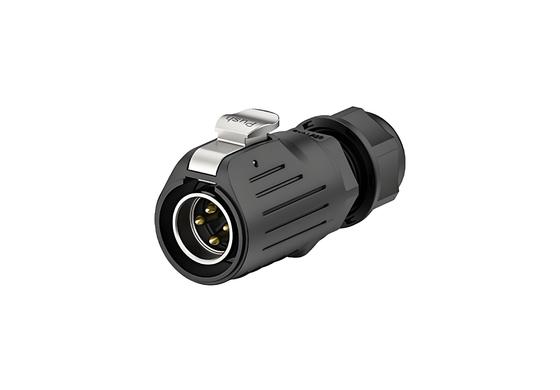

LP20 4-Pin 20A Power Flange Mount Waterproof Circular Connector IP68 Rated
  • name
  • name
  • name
  • name

LP20 4-Pin 20A Power Flange Mount Waterproof Circular Connector IP68 Rated

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Waterproof:
IP67
Flame Resistance Rating:
UL94 V-0
Operating Temperature:
-40°C To 85°C
Feature:
Multi-purpose
Current Rating:
5A
Cable Length:
Per Your Requirement
Application:
Power, Led Light, Controller，signal
Cable Jacket Od:
4.5-9.2 Mm²
Highlight:

4-pin waterproof power connector

,

20A flange mount connector

,

IP68 rated plastic wire connector

Product Description
LP20 4-Pin 20A Power Flange Mount Waterproof Connector
Full Plastic Wire Lock IP68 Rated industrial connector designed for demanding environments
Product Specifications
Pin Configuration: 4 Pin
Current Rating: 20A Maximum
Material: Full Plastic Construction
Connection Method: Push-button Snap Fastener
Operating Voltage: 500V Maximum
Assembly Wire: IP-Rated Locking Gland
Mounting Type: Flange Mounting
UV Resistance: Outdoor Rated
Cable Jacket OD: 2.5-4 mm²
Technical Data Sheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation Voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power: ⌀8-12mm | Standard Signal: ⌀5-6.5mm | Other: ⌀5-9mm
Assembly Cable Diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient Temperature -40℃ to +80℃
Key Advantages
Material & Performance: Housing made of high-performance PBT engineering plastic ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components guarantee superior conductivity.
Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
High Current Capacity: Supports 20A power transmission for medium-to-high-power applications.
Versatile Compatibility: 4-core design allows for multiple signal/power transmissions in a single compact connector.
Application Industries
Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devices
LP20 4-Pin 20A Power Flange Mount Waterproof Circular Connector IP68 Rated 0
Technical Drawings
LP20 4-Pin 20A Power Flange Mount Waterproof Circular Connector IP68 Rated 1 LP20 4-Pin 20A Power Flange Mount Waterproof Circular Connector IP68 Rated 2
Frequently Asked Questions
What are the key advantages of the full plastic construction in this connector?
The all-plastic design provides complete electrical insulation, exceptional corrosion resistance, and lightweight properties. Unlike metal connectors, it will not rust or corrode in humid, salty, or chemical environments. The material also provides excellent impact resistance and thermal stability from -40°C to 120°C.
How does the wire lock mechanism work and what are its benefits?
The integrated wire lock system features a secure snap-lock design that prevents accidental disconnection from vibration or pulling. Simply push the locking tab until it clicks into place - no tools required. This ensures reliable power transmission in high-vibration applications such as industrial machinery, automotive systems, and outdoor equipment.
What makes this connector suitable for 20A power applications?
This connector is engineered with oversized contacts and optimized thermal management to handle 20A continuous current. The full plastic housing provides excellent heat dissipation, while the precision-machined contacts minimize resistance. It meets IP68 standards for complete waterproof protection, making it ideal for high-current applications in demanding environments.
