Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type
  • name

Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Current Relating:
40A
Voltage Rating:
450V
Shell Material:
PA66
Materials:
Plastic
Ip Level:
IP68
Connection Type:
Solder Type
Warranty:
2 Years
Color:
Black
Highlight:

Waterproof junction box IP68

,

Split-type waterproof connector

,

1-in-3-out junction box

Product Description

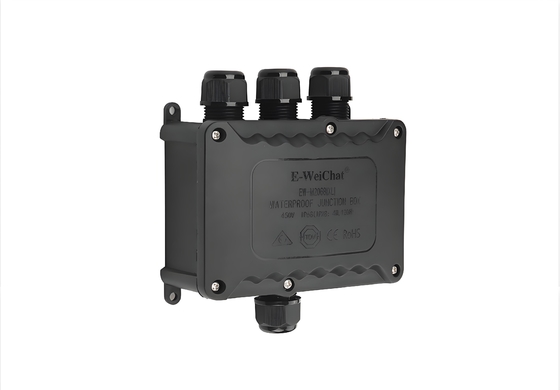

Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type
Specifications

Connection Type:Screw-Type

Type:1-in-3-out

Material:Plastic

Applicable Wire Gauge:0.5mm²-6mm²

Outer Diameter (OD):5-9mm 9-12mm

P/N :CB-2068XL-4T

Datasheet
Parameter Specification
Product Name 4T Junction Box
Wiring Range 0.5 - 6 mm²
Rated Current 40 A
Operating Voltage 450 V
Ingress Protection (IP) Rating IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5 - 9 mm, 9 - 12 mm
Advantages:

  1. Robust IP68 Protection
    Offers complete defense against dust ingress and prolonged submersion in water, ensuring reliability in harsh environments.

  2. Versatile 1-in-3-out Design
    Provides efficient power or signal distribution for multiple devices from a single source, simplifying cable management.

  3. Split-Type Construction
    Features a separate base and cover for effortless installation, maintenance, and wiring access.

  4. Durable & Secure Enclosure
    Constructed from resilient materials to withstand impact, corrosion, and extreme temperatures, guaranteeing long-term safety.

Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type 0 Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type 1 Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type 2 Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type 3 Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type 4 Waterproof Junction Box 1-in-3-out with IP68 Rating Split-Type 5
FAQ
Q1: What does the IP68 rating mean for this junction box?

A: The IP68 rating guarantees complete protection against dust (IP6X) and continuous immersion in water beyond 1 meter depth (IPX8). It is ideal for harsh environments, including outdoor, industrial, or underground applications.

Q2: How does the split-type design benefit installation?

A: The split-type design separates the base and cover, allowing easy access to wiring terminals without disassembling entire components. This simplifies installation, maintenance, and future modifications while saving time and effort.

Q3: What wire sizes and types are compatible with this box?

A: It supports standard wire gauges (e.5-6 mm² or 18-10 AWG) and accommodates both solid and stranded cables. The sealing glands ensure a tight, waterproof seal for cables within 5-12mm diameter ranges.
