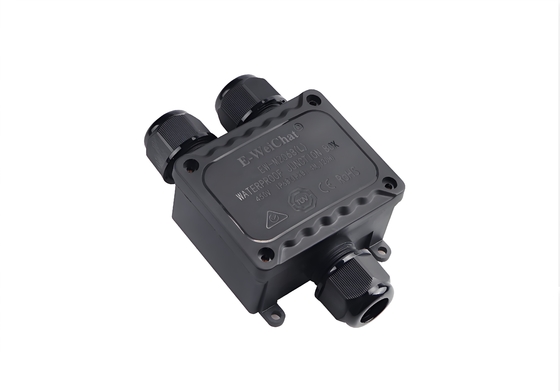

Waterproof Junction Box 1-in-2-out with IP68 Rating Split-Type

Brand Name:	Cablein
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Sealing Material:

Silicone, Rubber

Mating Style:

Screw

Feature:

Multi-purpose

Temperature Range:

-40-105℃

Cable Diameter:

5-14mm

Waterproof Level:

IP 68

Cable Section:

0.5-6 Square (normal)

Type:

1-in-2-out

Highlight:

IP68 waterproof junction box

split-type waterproof connector

1-in-2-out junction box

Product Description

Waterproof Junction Box 1-in-2-out with IP68 Rating Split-Type

Specifications

Connection Type: Screw-Type

Type: 1-in-2-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 5-9mm 9-12mm 10-14mm

P/N :CB-2068L-3Y

Datasheet

Parameter	Specification
Product Name	3T/4T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40 A
Operating Voltage	450 V
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5 - 9 mm, 9 - 12 mm,10-14mm

Advantages:

1. Superior IP68 Protection for Harsh Environments

Engineered with a complete IP68 rating, this junction box offers absolute defense against dust, dirt, and prolonged submersion in water, ensuring reliable performance in outdoor, industrial, or underground applications.
2. Efficient 1-in-2-out Power/Signal Distribution

The versatile design allows one input cable to be efficiently split into two separate outputs, simplifying wiring for multiple devices from a single source and enabling organized, space-saving cable management.
3. Easy Installation & Maintenance with Split-Type Design

The separate base and cover design provides full, hassle-free access to terminal connections, drastically simplifying the initial installation process and any future maintenance or modifications.
4. Robust & Durable Construction for Long-Term Use

Constructed from high-quality, corrosion-resistant materials, the enclosure is built to withstand physical impact, UV exposure, and extreme temperatures (-40°C to +105°C), guaranteeing longevity and operational safety.

FAQ

1. Q: What does the IP68 rating mean?

A: It offers complete protection against dust and continuous submersion in water beyond 1 meter, making it ideal for outdoor and harsh environments.

2. Q: What is the maximum cable size it supports?

A: It accommodates cables with an outer diameter (OD) typically between 5mm and 12mm, perfect for standard industrial wiring.

3. Q: How does the split-type design help?

A: The separate base and cover allow for easy, tool-free access to terminals, simplifying installation and maintenance.

4. Q: What is the 1-in-2-out function for?

A: It allows you to efficiently split one incoming power or signal source into two separate output connections.

5. Q: What temperatures can it handle?

A: It operates reliably in a wide temperature range, from -40°C to +105°C.

6. Q: Is it suitable for outdoor use?

A: Absolutely. Its IP68 rating and durable, UV-resistant material are specifically designed for outdoor applications.
