Waterproof Junction Box with IP68 Rating 1-in-2-out Split-Type Design for Harsh Environments

Brand Name:	Cablein
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Sealing Material:

Silicone, Rubber

Mating Style:

Screw

Feature:

Multi-purpose

Temperature Range:

-40-105℃

Cable Diameter:

5-14mm

Waterproof Level:

IP 68

Cable Section:

0.5-6 Square (normal)

Type:

1-in-2-out

Highlight:

IP68 waterproof junction box

split-type waterproof connector

1-in-2-out junction box

Product Description

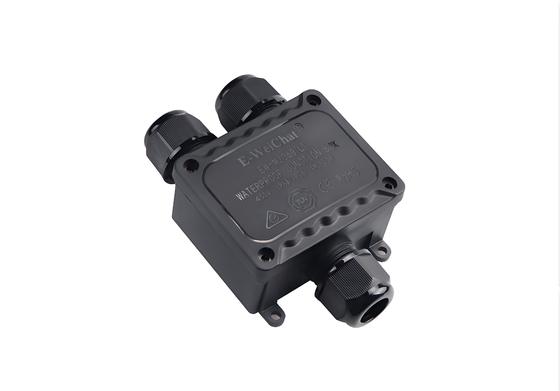

Waterproof Junction Box 1-in-2-out with IP68 Rating Split-Type

This split-type waterproof junction box features a 1-in-2-out configuration with IP68 protection, designed for reliable performance in demanding industrial and outdoor environments.

Product Specifications

Connection Type	Screw-Type
Type	1-in-2-out
Material	Plastic
Applicable Wire Gauge	0.5mm²-6mm²
Outer Diameter (OD)	5-9mm, 9-12mm, 10-14mm
Part Number	CB-2068L-3Y

Technical Parameters

Product Name	3T/4T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40 A
Operating Voltage	450 V
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5 - 9 mm, 9 - 12 mm, 10-14mm

Key Advantages

Superior IP68 Protection for Harsh Environments: Engineered with complete IP68 rating, offering absolute defense against dust, dirt, and prolonged submersion in water, ensuring reliable performance in outdoor, industrial, or underground applications.
Efficient 1-in-2-out Power/Signal Distribution: Versatile design allows one input cable to be efficiently split into two separate outputs, simplifying wiring for multiple devices from a single source and enabling organized, space-saving cable management.
Easy Installation & Maintenance with Split-Type Design: Separate base and cover design provides full, hassle-free access to terminal connections, drastically simplifying initial installation and future maintenance or modifications.
Robust & Durable Construction for Long-Term Use: Constructed from high-quality, corrosion-resistant materials, built to withstand physical impact, UV exposure, and extreme temperatures (-40°C to +105°C), guaranteeing longevity and operational safety.

Product Gallery

Frequently Asked Questions

What does the IP68 rating mean?

It offers complete protection against dust and continuous submersion in water beyond 1 meter, making it ideal for outdoor and harsh environments.

What is the maximum cable size it supports?

It accommodates cables with an outer diameter (OD) typically between 5mm and 12mm, perfect for standard industrial wiring.

How does the split-type design help?

The separate base and cover allow for easy, tool-free access to terminals, simplifying installation and maintenance.

What is the 1-in-2-out function for?

It allows you to efficiently split one incoming power or signal source into two separate output connections.

What temperatures can it handle?

It operates reliably in a wide temperature range, from -40°C to +105°C.

Is it suitable for outdoor use?

Absolutely. Its IP68 rating and durable, UV-resistant material are specifically designed for outdoor applications.

Tags:
