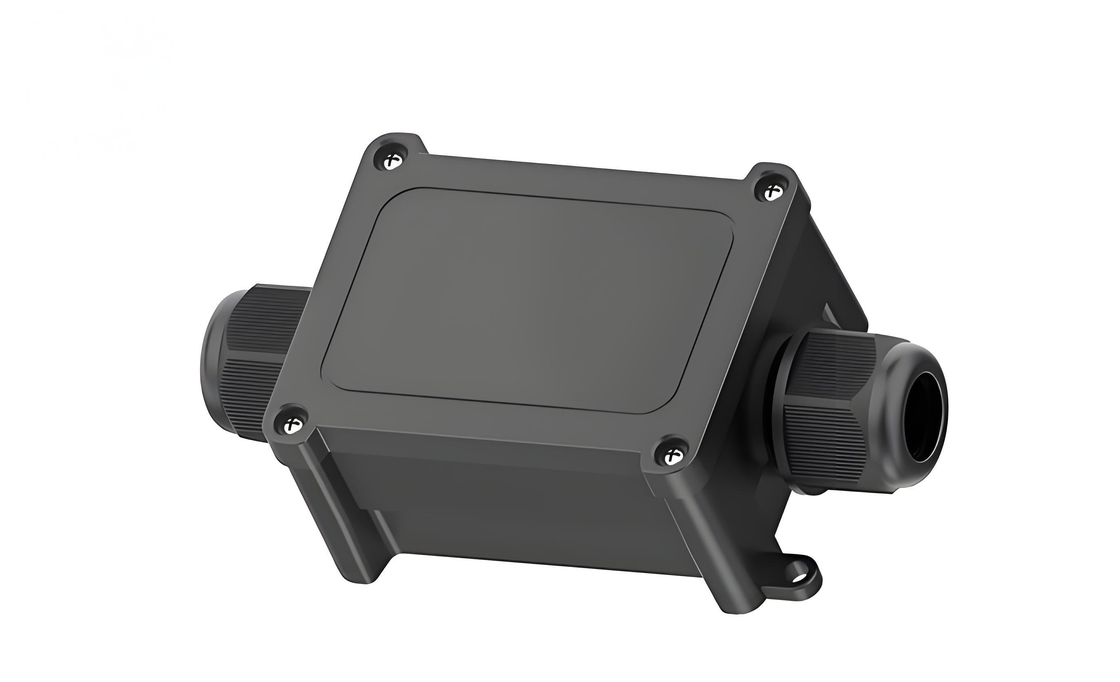

Waterproof Junction Box, 1-in 1-out IP68 with Cable Glands

Brand Name:	Cablein
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Material:

PA66

Ip Level:

Ip68

Current:

4000mA

Operation Temperature:

-40℃-+105℃

Flame Resistance Rating:

UL94 V-0

Standard:

Keywords:

Power Cable Connector

Color:

Black

Highlight:

waterproof junction box IP68

1-in 1-out junction box

waterproof cable glands connector

Product Description

Waterproof Junction Box, 1-in 1-out IP68 with Cable Glands

Specifications

Connection Type: Screw-Type

Type: 1-in-1-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 5-9mm 9-12mm 10-14mm

P/N : CB-2068S-2T

Datasheet

Parameter	Specification
Product Name	2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5 - 9 mm, 9 - 12 mm,10-14mm
Connector Size	2M25/1M20,2M25/2M20,2M25/3M20,2M25/4M20,2*M25

Advantages:

1.IP68 Rated Waterproof & Dustproof Protection

Ensures complete defense against moisture, dust, and temporary submersion, guaranteeing reliable performance in harsh outdoor and industrial environments.
2.Secure Cable Entry with Integrated Glands

Features built-in cable glands that provide a tight, strain-relief seal around cables, preventing pull-outs and protecting connection integrity.
3.Simplified Straight-Through (1-in 1-out) Design

Offers an easy and efficient solution for splicing, extending, or protecting a single cable run, minimizing installation time and complexity.
4.Rugged and Corrosion-Resistant Construction

Built from durable materials like high-grade plastics or composites to withstand impact, UV exposure, and chemical corrosion for long-term use.

Product Images

FAQ

Q1: What does the IP68 rating mean for this junction box?

The "6" means it is completely dust-tight, and the "8" means it can be continuously immersed in water beyond 1 meter deep, making it ideal for harsh environments.

Q2: What is the purpose of the integrated cable glands?

The integrated cable glands are crucial for a watertight seal. They grip the cable securely, providing strain relief to prevent damage from pulling or twisting, and ensure the IP68 rating is maintained at the entry points.

Q3: Is this box suitable for outdoor and underground use?

Absolutely. Thanks to its IP68 rating and corrosion-resistant construction, it is perfectly designed for outdoor, underground, and other applications exposed to moisture, dust, and extreme weather conditions.

Q4: What types of cables can I use with this box?

It is compatible with a wide range of cable types and diameters. You need to ensure the cable's outer diameter matches the specified range of the integrated glands to achieve a proper seal.

Q5: How do I achieve the IP68 waterproof seal during installation?

It's simple. After feeding the cable through the gland, tightly screw the gland's compression nut down. This compresses a rubber seal inside, creating a watertight barrier around the cable.

Q6: Can this box be used for high-voltage electrical connections?

Please always check the product's specifications for its voltage and temperature ratings. While designed for electrical connections, ensuring it meets the requirements for your specific application is essential for safety.
