Waterproof Junction Box IP68 - 1-in-3-Out Cable Gland Through-Type for Data Power Lines
  • name

Waterproof Junction Box IP68 - 1-in-3-Out Cable Gland Through-Type for Data Power Lines

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Keywords:
Power Cable Connector
Related Voltage:
125V-300V
Shell Material:
PVC/Nylon/PVC+Nylon
Type:
Through-type
Ip Rating:
IP68
Contact Pin Material:
Nickel-Plated Brass
Current Rating:
40A
Anti-Corrosion Property:
High
Product Description
Waterproof Junction Box IP68 - 1-in-3-Out Cable Gland Through-Type for Data Power Lines
Specifications

Connection Type: Screw-Type

Type: 1-in-3-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 3*M20:5-9mm 9-12mm,2*M25:5-9mm 9-12mm 10-14mm

P/N : CB-2068S-4TA

Datasheet
Parameter Specification
Product Name 2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range 0.5 - 6 mm²
Rated Current 4000MA
Operating Voltage 0.45KV
Ingress Protection (IP) Rating IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5 - 9 mm, 9 - 12 mm,10-14mm
Connector Size 2*M25/1*M20,2*M25/2*M20,2*M25/3*M20,2*M25/4*M20,2*M25
Advantages:
  • 1. Ultimate IP68 Protection

    Guarantees complete defense against water, dust, and harsh elements for maximum reliability in demanding environments.

  • 2. Efficient 1-in-3-Out Distribution

    Simplifies installation by organizing multiple connections in one compact unit, saving space and time.

  • 3. Universal Data & Power Compatibility

    Designed to handle both electrical power cables and data/communication lines with equal reliability.

  • 4. Robust Through-Type Design

    Provides secure cable entry sealing that maintains protection even under continuous vibration or pressure.

  • Additional optional benefits:

    • Easy Maintenance Access

      Features a user-friendly design that allows for simple inspection and rewiring without compromising the seal.

    • Corrosion-Resistant Construction

      Built with durable materials to withstand outdoor, industrial, and marine applications long-term.

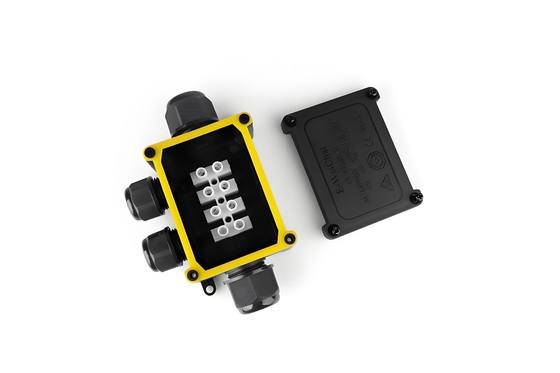

Product Images
Waterproof Junction Box IP68 - 1-in-3-Out Cable Gland Through-Type for Data Power Lines 0 Waterproof Junction Box IP68 - 1-in-3-Out Cable Gland Through-Type for Data Power Lines 1 Waterproof Junction Box IP68 - 1-in-3-Out Cable Gland Through-Type for Data Power Lines 2 Waterproof Junction Box IP68 - 1-in-3-Out Cable Gland Through-Type for Data Power Lines 3 Waterproof Junction Box IP68 - 1-in-3-Out Cable Gland Through-Type for Data Power Lines 4
FAQ
1. Q: What does the IP68 rating mean for this box?

A: The IP68 rating certifies that the box is completely dust-tight (6) and can be continuously submerged in water beyond 1 meter depth (8), ensuring maximum protection.

2. Q: Can it handle both high-voltage power and low-voltage data cables?

A: Yes, its universal design and gland system are engineered to safely and securely manage both standard electrical power lines and sensitive data/communication cables.

3. Q: How does the through-type design benefit installation?

A: The through-type (or feed-through) design allows cables to pass straight through the enclosure, simplifying wiring for in-line applications and creating a neat, organized setup.

4. Q: Are the cable glands included and what sizes are available?

A: Yes, the product comes equipped with glands. The specific size range (e.g., for 3-12mm cables) is provided in the product specifications to ensure a perfect, watertight seal for your cables.

Tags:

Water Resistant Circular Connector

Male And Female Connectors

Circular Cable Connectors
