Waterproof Cable Junction Box IP68 Rated 1-In 1-Out Combination Style
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now
Waterproof Cable Junction Box IP68 Rated 1-In 1-Out Combination Style
  • name

Waterproof Cable Junction Box IP68 Rated 1-In 1-Out Combination Style

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Color:
Black/Silver
Gender:
Male And Female
Mating Style:
Screw
Materials:
Plastic
Wire Od:
3.5-12MM
Current:
40A
Material:
Plastic/Metal
Metal:
Gilded Brass
Supply Ability:
Monthly output: 10,000 sets
Highlight:

Waterproof cable junction box IP68

,

1-in 1-out waterproof connector

,

IP68 rated circular connector

Product Description
Waterproof Cable Junction Box IP68 Rated 1-In 1-Out Combination Style
Professional waterproof junction box with IP68 rating, designed for reliable cable management in demanding indoor and outdoor applications.
Product Specifications
Connection Type Screw-Type
Type 1-in-1-out
Material Plastic
Applicable Wire Gauge 0.5mm²-6mm²
Outer Diameter (OD) 3*M20:5-9mm 9-12mm, 2*M25:5-9mm 9-12mm 10-14mm
Part Number CB-2068-2T
Technical Parameters
Product Name 2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range 0.5 - 6 mm²
Rated Current 40A
Operating Voltage 450V
Ingress Protection (IP) Rating IP67 / IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 2*M20:5-9mm, 9-12mm, M16:3.5-7mm, 7-10mm
Connector Size 2*M25/1*M20, 2*M25/2*M20, 2*M25/3*M20, 2*M25/4*M20, 2*M25
Key Advantages
  • Complete IP68 Water & Dust Protection
  • Easy Installation with Combination Design
  • Reliable Cable Management for 1-In-1-Out Applications
  • Robust Construction for Harsh Indoor/Outdoor Use
Product Images

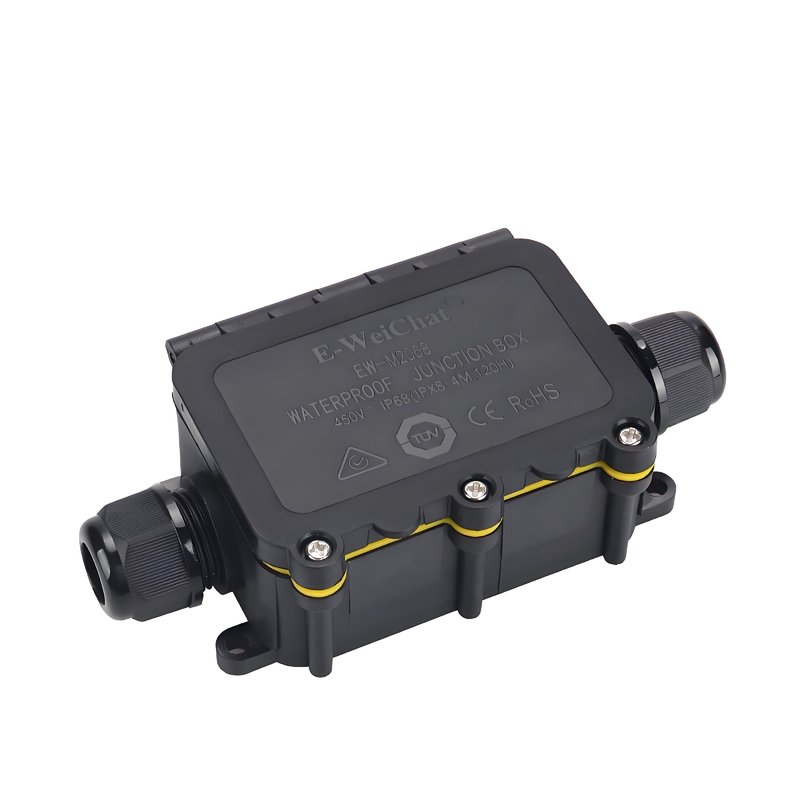

Waterproof Cable Junction Box IP68 Rated 1-In 1-Out Combination Style 0
Waterproof Cable Junction Box IP68 Rated 1-In 1-Out Combination Style 1
Waterproof Cable Junction Box IP68 Rated 1-In 1-Out Combination Style 2
Waterproof Cable Junction Box IP68 Rated 1-In 1-Out Combination Style 3
Frequently Asked Questions
What does the IP68 rating mean for this junction box?
The IP68 rating is the highest level of ingress protection. The "6" means it's completely dust-tight, and the "8" means it can be continuously immersed in water beyond 1 meter deep (specific depth and time should be confirmed by the manufacturer, but it's typically up to 1.5m for 30 minutes). This ensures ultimate protection in wet or dusty environments.
How does the "Combination Style" design benefit installation?
The combination style typically refers to a two-part clam-shell design that snaps or screws together. This makes installation faster and easier than traditional boxes, as you don't need to thread cables through small ports—you simply place the cables in the base and secure the lid.
What types of cables and applications is this box designed for?
This box is versatile and suitable for low-voltage cables like those for landscape lighting, security cameras, sensor connections, irrigation systems, and low-power outdoor equipment. Always check the internal dimensions and cable gland compatibility to ensure your specific cables will fit.
Are the cable glands included, and what size cables do they fit?
This is model-dependent. Most versions include pre-installed waterproof cable glands. The standard glands often fit cable diameters between 3mm to 8mm (approx. 1/8" to 5/16"). For precise sizing, please refer to the product specifications for your model (e.g., CB2068-2T).
Can this junction box be used for underground applications?
While the IP68 rating makes it waterproof for immersion, we recommend placing it in a protective conduit or a larger underground vault if burying it directly. This provides an extra layer of physical protection against soil pressure, rocks, and other potential hazards.
How do I ensure the box remains waterproof after sealing it?
First, ensure the rubber seal inside the lid is clean and properly seated. Second, hand-tighten the cable glands firmly onto your cables—do not over-tighten. Finally, make sure all locking screws on the lid are tightened evenly to apply uniform pressure on the seal.
