Waterproof Splitting Junction Box 1 Input 3 Outputs Integrated IP68

Brand Name:	Cablein
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Flame Resistance Rating:

UL94 V-0

Type:

Waterproof Connector

Cable Type:

Coaxial/Twisted Pair

Ip Rating:

IP67/IP68

Process:

Stamping/welding/injection Molding

Connecting Mode:

Plug/unplug

Mating Style:

Screw

Connection:

Terminal Box/compensation Cable/head

Supply Ability:

Monthly output: 10,000 sets

Product Description

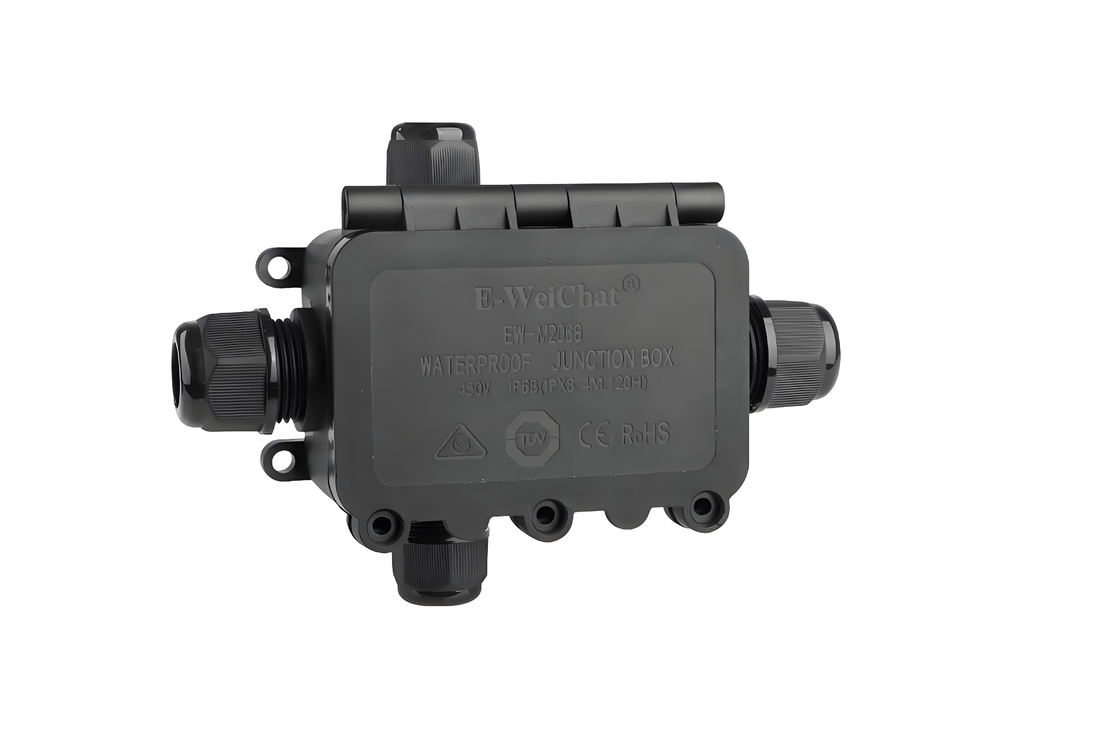

Waterproof Splitting Junction Box 1 Input 3 Outputs Integrated IP68

Specifications

Connection Type: Screw-Type

Type: 1-in-3-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 3*M20:5-9mm 9-12mm,2*M25:5-9mm 9-12mm 10-14mm

P/N : M2068-4TB

Datasheet

Parameter	Specification
Product Name	2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67 IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	2*M20:5 - 9 mm, 9 - 12 mm,M16:3.5-7mm 7-10mm
Connector Size	2M25/1M20,2M25/2M20,2M25/3M20,2M25/4M20,2*M25

Advantages:

IP68 Maximum Protection against dust and water immersion.
Integrated 1-to-3 Power/Signal Splitter in a single rugged unit.
Space-Saving & Streamlined Design for efficient installations.
Durable for Harsh Environments both indoors and outdoors.

Product Images

FAQ

1. Q: What does the IP68 rating mean for this junction box?

A: It guarantees complete protection against dust and continuous immersion in water beyond 1 meter depth, making it ideal for harsh outdoor or industrial environments.

2. Q: Can I use it to split both power and data signals?

A: Yes, the integrated design is versatile and can be used for splitting low-voltage power (like LED lighting) or data/communication signals, depending on the internal wiring and your cables.

3. Q: How does the integrated design benefit installation?

A: It simplifies the process by combining the splitting function and protective enclosure into one pre-assembled unit, saving space, reducing installation time, and ensuring a weatherproof connection.
