Waterproof Circular Connector

Waterproof Electrical Junction Box IP68 1In2Out Outdoor Cable Connector Through-Type

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

Waterproof Electrical Junction Box IP68 1In2Out Outdoor Cable Connector Through-Type

Brand Name:	Cablein
Model Number:	CB-M2068-3T
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Maximum Od:

3.5-12

Current Relating:

Operating Temperature:

-40°C To105°C

Flame Resistance Rating:

UL94 V-0

Voltage Rating:

Waterproof Level:

Sample Availability:

Cable Length:

Per Your Requirement

Supply Ability:

Monthly output: 10,000 sets

Product Description

Waterproof Electrical Junction Box IP68 1In2Out Outdoor Cable Connector Through-Type

Specifications

Connection Type: Screw-Type

Type: 1-in-2-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 2*M20:5-9mm 9-12mm,M16:3.5-7mm 7-10mm

P/N : CB-M2068-3T

Datasheet

Parameter	Specification
Product Name	2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range	0.5 - 6 mm²
Rated Current	40A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67 IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	2*M20:5 - 9 mm, 9 - 12 mm,M16:3.5-7mm 7-10mm
Connector Size	2M25/1M20,2M25/2M20,2M25/3M20,2M25/4M20,2*M25

Advantages:

Unmatched Durability in Harsh Environments

Featuring a robust IP68 waterproof and dustproof rating, this junction box offers complete protection against heavy rain, dust ingress, and even temporary submersion. It is engineered to perform reliably in demanding outdoor and industrial settings, significantly extending the service life of your electrical connections.
Streamlined and Efficient Cable Management

The 1-in-2-out (1In2Out) through-type design allows for a neat, organized, and professional wiring setup. It simplifies the process of splitting a single cable into two branches, reducing installation time and minimizing clutter for safer and more maintainable systems.
Superior Connection Integrity and Safety

Constructed from high-quality, corrosion-resistant materials, the box ensures secure and stable cable connections. It effectively shields splices from moisture, physical damage, and short circuits, providing essential safety protection for both the wiring and end-users.
Versatile and Easy to Install

Its versatile through-type design accommodates various cable diameters and types. Pre-designed entry and exit points with standard seals make installation quick and straightforward, saving on labor costs and making it ideal for a wide range of applications, from landscape lighting to solar panel arrays.

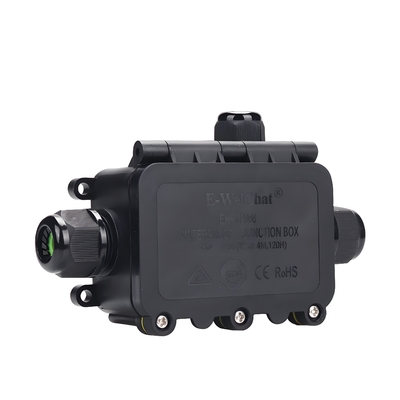

Product Images

1. Q: What does the IP68 rating mean for this junction box?

A: It means the box is completely dust-tight and can withstand continuous submersion in water (beyond 1 meter depth), offering the highest level of protection for outdoor use.

2. Q: How do I use the 1-in-2-out feature?

A: Simply feed your main input cable through one port. Inside the box, split the connection to two output cables, which you then route out through the two separate ports, keeping everything organized and waterproof.

3. Q: Is this box suitable for direct burial underground?

A: Yes, thanks to its IP68 waterproof rating and durable construction, it is an excellent choice for protecting cable splices in direct burial applications.
