Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68
  • name

Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68

Brand Name: Cablein
Model Number: CB-M2068-5T
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Cable Diameter:
6.5-12mm
Connecting Model:
Male And Female Plug
Insulation Resistance:
≥1000MΩ
Ip Rating:
IP68 、IP67
Connection:
Terminal Box/compensation Cable/head
Metal:
Gilded Brass
Supply Ability:
Monthly output: 10,000 sets
Product Description
Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68
Specifications

Connection Type: Screw-Type

Type: 1-in-4-out

Material: Plastic

Applicable Wire Gauge: 0.5mm²-6mm²

Outer Diameter (OD): 2*M20:5-9mm 9-12mm,M16:3.5-7mm 7-10mm

P/N : CB-M2068-5T

Datasheet
Parameter Specification
Product Name 2T/3T/4TA/4TB/5T/6T Junction Box
Wiring Range 0.5 - 6 mm²
Rated Current 4000MA
Operating Voltage 0.45KV
Ingress Protection (IP) Rating IP67 IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 2*M20:5 - 9 mm, 9 - 12 mm,M16:3.5-7mm 7-10mm
Connector Size 2*M25/1*M20,2*M25/2*M20,2*M25/3*M20,2*M25/4*M20,2*M25
Advantages
  1. IP68 Rated for Ultimate Water & Dust Protection.
  2. Integrated 1-in-4-Out Design for Neat & Space-Saving Wiring.
  3. Durable Construction for Reliable Outdoor Use.
  4. Easy Installation and Hassle-Free Maintenance.

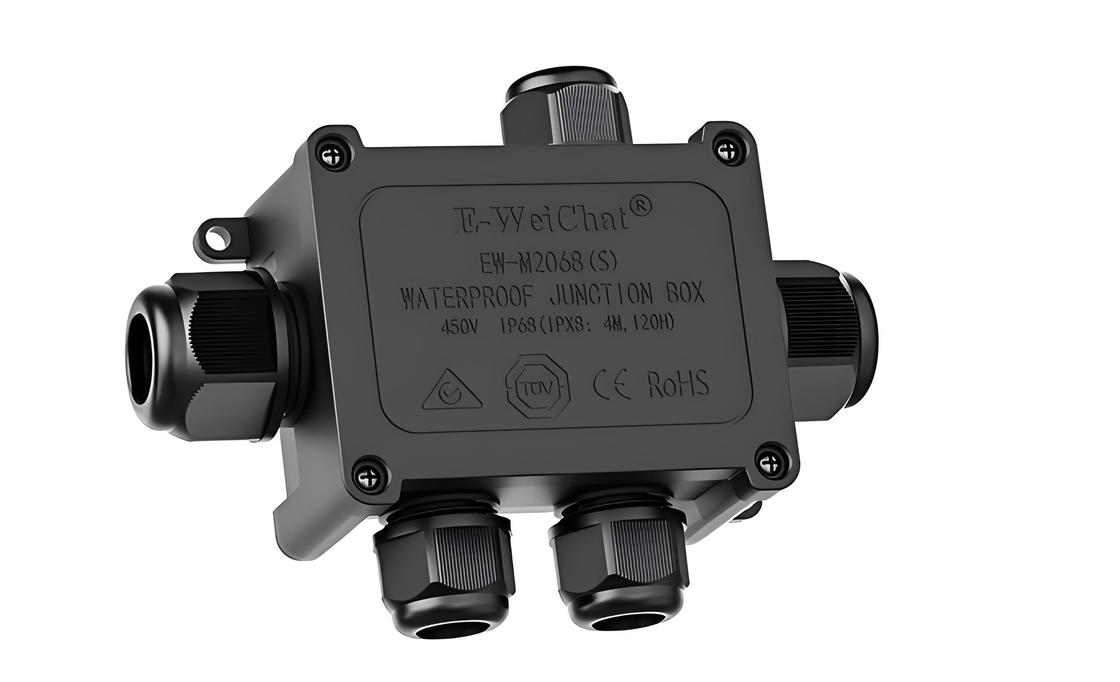

Product Images
Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68 0 Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68 1 Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68 2 Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68 3 Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68 4 Waterproof Junction Box Integrated 1in4Out Splitter Enclosure for Outdoor Wiring IP68 5
FAQ
FAQ 1: Q: What is the level of waterproof protection, and how is it tested?

A: This junction box is rated IP68, the highest common ingress protection rating. It is completely dust-tight (6) and can withstand continuous submersion in water up to 1.5 meters deep for 30 minutes (8). This ensures flawless performance in heavy rain, snow, or even accidental submersion outdoors.

FAQ 2: Q: How many cables can it manage, and what are the cable entry sizes?

A: It features an integrated 1-in-4-out design, meaning it can efficiently organize and split one main cable into four separate outputs. The product includes multiple cable gland entry points with standard sizes (e.g., PG7, PG9, PG11) to accommodate a wide range of cable diameters, ensuring a secure and waterproof seal for each connection.

FAQ 3: Q: Is this enclosure suitable for direct burial underground?

A: While the IP68 rating makes it highly resistant to water and dust, we recommend installing it in a above-ground or partially protected location (e.g., mounted on a wall or post). For direct burial, additional protective measures like a concrete enclosure or conduit may be necessary to prevent physical damage from soil pressure and shifting over time.

Tags:
