P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector
  • name

P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Mechnical Life:
≥1000 Times
Contact Resistance:
≤10mΩ
Pin:
3 Pin Male Femal Connector
Housing Material:
Nylon, PVC
Connector Type:
Waterproof Connector
Mating Style:
Male And Female
Interface Type:
AC/DC
Breakdown Voltage:
1500 V Or Higher
Supply Ability:
Monthly output: 10,000 sets
Highlight:

16A P20 3-Pin Power Connector

,

450V Waterproof Circular Connector

,

Push-Wire P20 3-Pin Power Connector

Product Description
P20 3-Pin Power Connector, Push-Wire IP68 Quick Connect
High-performance 3-pin power connector featuring push-wire termination and IP68-rated waterproof protection for reliable electrical connections in demanding environments.
Key Specifications

Connection Type: Quick Connect

Installation Type: Wire-to-Wire

Pin Configuration: 3

Material: PA66

Applicable Wire Gauge: 0.5mm²-2.5mm²

Waterproof Ring: 5-9mm / 9-12mm

Rating: IP68

Technical Parameters
Parameter Specification
Product Name P20 3-Pin Power Connector, Push-Wire IP68 Quick Connect
Wiring Range 0.5 - 2.5 mm²
Rated Current 16A
Operating Voltage 450V
Ingress Protection (IP) Rating IP67 / IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-12mm
Product Advantages
  • Tool-less, push-wire termination for easy installation
  • IP68 rating provides superior dust and water resistance
  • Secure quick-connect locking mechanism ensures reliable connections
  • Compact P20 size ideal for space-constrained applications
Product Images

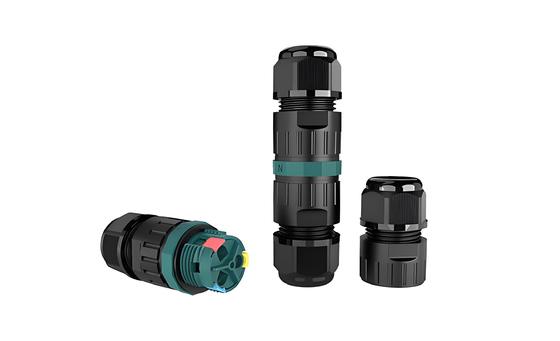

P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector 0 P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector 1 P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector 2 P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector 3 P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector 4 P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector 5 P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector 6 P20 3-Pin Power Connector with 16A 450V Push-Wire Waterproof Circular Connector 7
Frequently Asked Questions
Q: What is the IP rating?
A: It has an IP68 rating, fully waterproof and dustproof.
Q: How to connect wires?
A: Use a simple push-wire design; no tools are required.
Q: What is the operating temperature?
A: It operates within a standard range of -40°C to +105°C.
Tags:

Water Resistant Circular Connector

Male And Female Connectors
