P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage
  • name
  • name

P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Protection Grade:
IP65 - IP68
Connector Type:
Circular
Temperature Range:
-40℃~+105℃
Standard:
UL
Insertion Life:
1000 Times
Samples:
Paid Samples
Supply Ability:
Monthly output: 10,000 sets
Highlight:

0.5mm²-2.5mm² Wire Gauge P25 Connector

,

1600mA Rated Current Waterproof Circular Connector

,

0.45KV Operating Voltage Quick-Connect In-Line Connector

Product Description
Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line
The Waterproof Connector P25 features a 5-pin IP67 quick-connect design for reliable in-line wire-to-wire connections in demanding environments.
Specifications
  • Connection Type: Quick Connect
  • Installation Type: Wire-to-Wire
  • Pin: 5
  • Material: PA66
  • Applicable Wire Gauge: 0.5mm²-2.5mm²
  • Waterproof Ring: 5-9mm 9-12mm 10-14mm
  • Rating: IP68
Technical Parameters
Parameter Specification
Product Name Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line
Wiring Range 0.5 - 2.5 mm²
Rated Current 1600mA
Operating Voltage 0.45KV
Ingress Protection (IP) Rating IP66/IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-14mm
Key Advantages
  • IP68 Rated for Dust & Water Protection: Complete protection against dust ingress and reliable operation when submerged, ideal for harsh environments.
  • Tool-Free Quick-Connect Operation: Simple push-and-lock design enables fast installation without tools.
  • 5-Pin Design for Versatile Applications: Simultaneously transmits power, signals, and data in a single connection for complex systems.
  • Durable In-Line Construction: Robust design ensures long-term reliability in demanding applications.

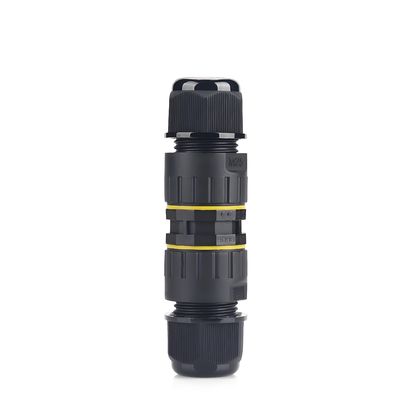

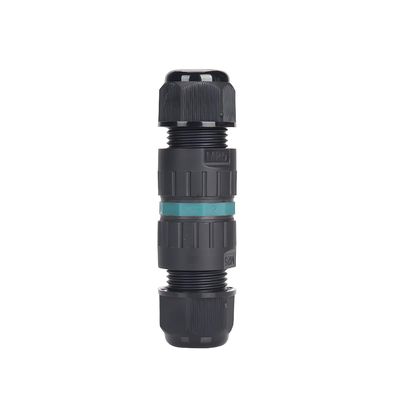

Product Images
P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage 0 P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage 1 P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage 2 P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage 3 P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage 4 P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage 5
Frequently Asked Questions
What is the IP68 rating?
The IP68 certification guarantees the connector is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
How does the quick-connect mechanism work?
It features a simple push-and-lock design that allows for secure mating and disconnection without any tools.
What wire gauges are compatible?
It is designed to accommodate standard wire gauges, with a common range of up to 18 AWG for flexible and reliable wiring.
Tags:

Water Resistant Circular Connector

Male And Female Connectors

Circular Cable Connectors
