P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring
  • name

P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Flame Resistance Rating:
UL94 V-0
Related Voltage:
450V
Conductor Material:
Copper
Waterproof:
IP68
Cable Guage:
Per Your Requirement
Colour:
Black
Withstand Temperature:
-40℃~+105℃
Contact Pin:
2Pin
Supply Ability:
Monthly output: 10,000 sets
Highlight:

1-to-2 Ports Waterproof Through Connector

,

UL94 V-0 Flame Resistance Circular Connector

,

450V Rated P20X Connector

Product Description

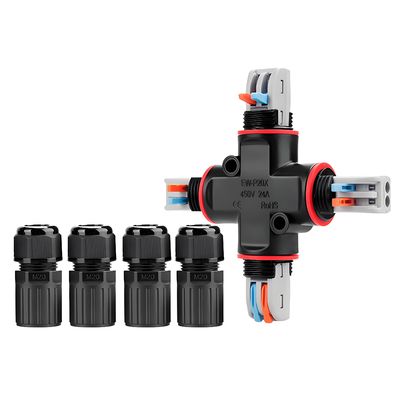

Waterproof Through Connector P20X 2-Pole 1-to-2 Ports Tool-Free Fast Wiring
The Waterproof Through Connector P20X features a 2-pole, 1-to-2 port design with tool-free fast wiring for efficient electrical connections in demanding environments.
Specifications
Installation Type Wire-to-Wire
Connection Type Quick Connect
Rating IP68
Pin 2
Waterproof Ring 5-9mm 9-12mm
Applicable Wire Gauge 0.5mm²-2.5mm²
Material PA66
Technical Parameters
Product Name Waterproof Through Connector P20X 2-Pole 1-to-2 Ports Tool-Free Fast Wiring
Wiring Range 0.5 - 2.5 mm²
Rated Current 16A Max
Operating Voltage 450V Max
Ingress Protection (IP) Rating IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm
Key Advantages
  • Tool-Free Fast Wiring: Enables quick and effortless installation, significantly saving time and labor costs without the need for special tools.
  • IP68 Waterproof & Dustproof: Provides complete protection against dust and long-term water immersion, ensuring reliable performance in harsh outdoor and industrial environments.
  • Stable 1-to-2 Circuit Branching: The through-type design efficiently and securely distributes power or signals from one source to two devices, simplifying system layout.
  • Robust & Corrosion-Resistant: Built with high-quality materials, the connector withstands impact, vibration, and corrosion for long-term durability.
Product Images
P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring 0 P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring 1 P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring 2 P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring 3 P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring 4
Frequently Asked Questions
Q: Is special tooling required for wiring?
A: No. It features a tool-free design for quick and easy installation.
Q: What is the waterproof rating?
A: It is rated IP68, ensuring complete protection against dust and water immersion.
Q: How many devices can this connector power?
A: Its 1-to-2 port design allows you to power or connect two devices from a single source.
