Waterproof T-Tap Connector 1 Male to 2 Female Quick Connect IP68

Brand Name:	Cablein
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Feature:

Multi-purpose

Interface Type:

AC/DC

Keywords:

Power Cable Connector

Waterproof Level:

IP68

Contact Gender:

Male, Female

Materials:

Plastic

Temperature Range:

-40-105℃

Insertion Life:

1000 Times

Supply Ability:

Monthly output: 10,000 sets

Product Description

Waterproof T-Tap Connector 1 Male to 2 Female Quick Connect IP68

Specifications

Installation Type: Wire-to-Wire

Connection Type: Quick Connect

Rating: IP68

Pin: 3

Waterproof Ring: 5-9mm 9-12mm 10-14mm

Applicable Wire Gauge: 0.5mm²-2.5mm²

Material: PA66

Datasheet

Parameter	Specification
Product Name	Waterproof T-Tap Connector 1 Male to 2 Female Quick Connect IP68
Wiring Range	0.5mm² - 2.5 mm²
Rated Current	16A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm 9-12mm 10-14mm

Advantages

Effortless 1-to-2 Circuit Expansion
Enables quick and easy splitting of a single power or signal source into two independent lines, simplifying system setup and modifications without complex rewiring.
Ultimate IP68 Rated Weatherproof Protection
Guarantees complete defense against dust, dirt, and long-term water submersion, ensuring unwavering reliability in the toughest outdoor and industrial environments.
Tool-Free, Quick-Connect Installation
Features a simple plug-and-play design that secures connections in seconds without tools, dramatically saving on installation time and labor costs.
Robust & Vibration-Resistant Design
Engineered with high-grade materials and superior sealing to maintain a secure, stable connection that withstands vibration, corrosion, and mechanical stress.

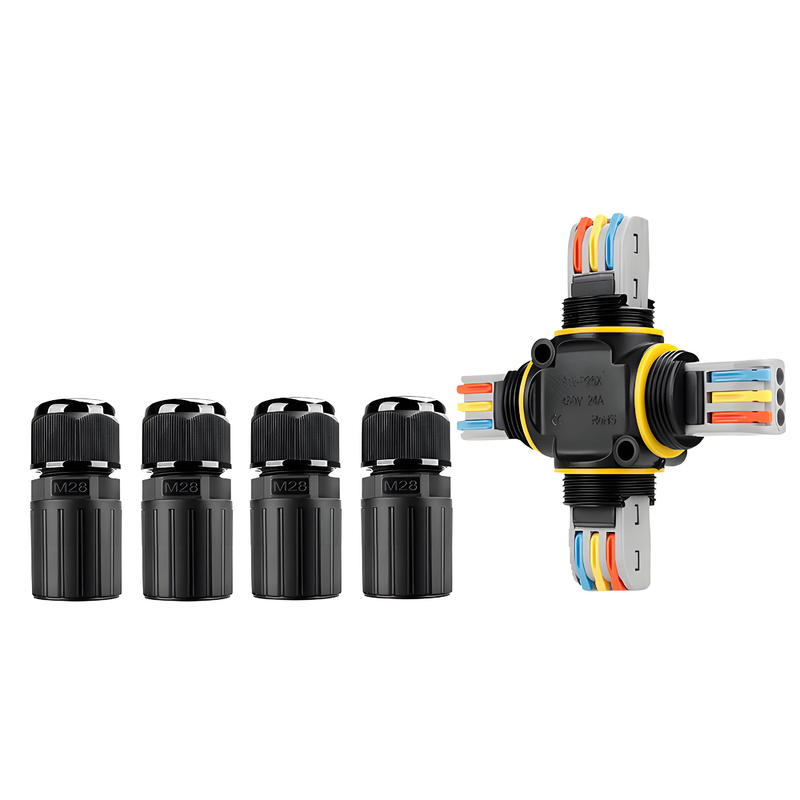

Product Images

FAQ

1. What is the IP68 rating effective for?

It provides complete protection against dust ingress and prolonged immersion in water, making it ideal for outdoor and harsh environments.

2. Is any tool required for installation?

No. The connector features a quick-connect design for simple, tool-free installation.

3. Can it be used for both power and signal?

Yes, it is suitable for splitting both power and data signals in various applications.
