Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

Brand Name:	Cablein
MOQ:	100PCS
Price:	The price ranges from $1 to $4 USD per pieces
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Ip Grade:

IP68

Contact Pin:

2Pin

Product Type:

Circular Connector

Colour:

Black

Keywords:

Power Cable Connector

Mechnical Life:

≥1000 Times

Mating Style:

Screw

Flame Resistanc:

UL94 V-0

Supply Ability:

Monthly output: 10,000 sets

Highlight:

UL94 V-0 Waterproof Circular Connector

M16 Interface Waterproof Circular Connector

0.5mm²-1.5mm² Waterproof Circular Connector

Product Description

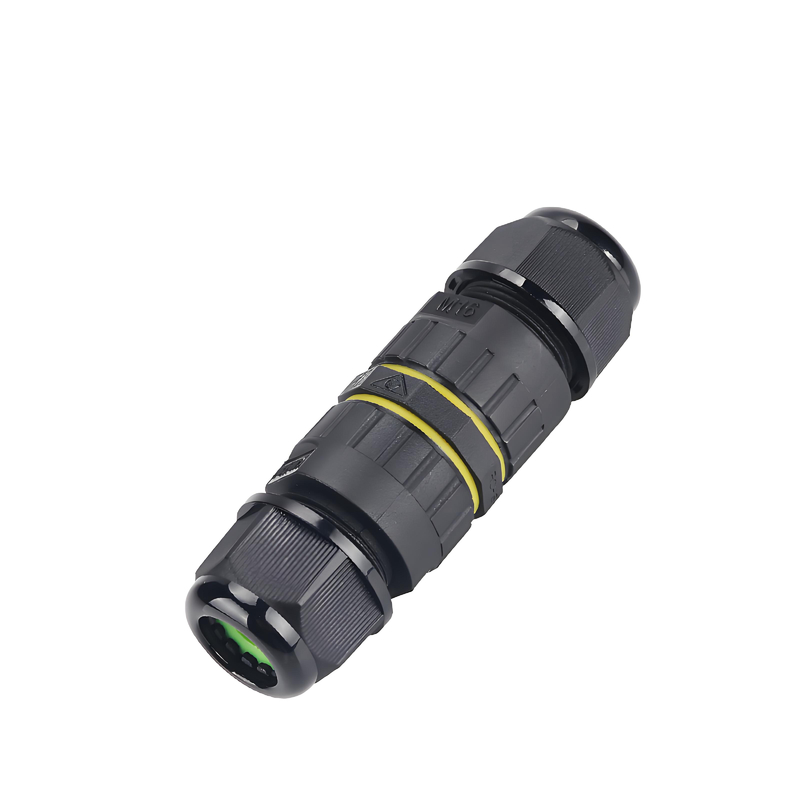

Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking

High-performance waterproof connector designed for reliable cable-to-cable connections in demanding industrial environments.

Key Specifications

Installation Type:

Wire-to-Wire

Connection Type:

Screw Locking

Rating:

IP68

Pin:

Waterproof Ring:

3.5-7mm 5-8mm 7-10mm

Applicable Wire Gauge:

0.5mm²-1.5mm²

Material:

PA66

Technical Parameters

Parameter	Specification
Product Name	Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking
Wiring Range	0.5mm² - 1.5 mm²
Rated Current	17.5A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	3.5-7mm 5-8mm 7-10mm

Product Advantages

Ensures Vibration-Proof & Secure Connections

The screw-locking mechanism prevents loosening under stress, guaranteeing a stable and reliable connection in high-vibration environments like machinery and vehicles.

Delivers Ultimate IP68 Environmental Protection

Fully sealed against dust, dirt, and prolonged water submersion, this connector provides unwavering performance in harsh outdoor and industrial settings.

Simplifies Installation with a Straight-Through Design

The intuitive in-line design allows for quick, tool-free mating, significantly reducing installation time and effort for cable-to-cable connections.

Built for Durability with a Robust M16 Interface

Featuring a standardized M16 threaded design and high-grade materials, this connector resists corrosion, impact, and mechanical wear for long-term use.

Product Images

Frequently Asked Questions

What is the IP68 rating suitable for?

The IP68 rating ensures complete protection against dust and prolonged immersion in water, making it ideal for outdoor, industrial, and automotive applications.

How does the screw-locking mechanism work?

It features a threaded coupling nut that, when hand-tightened, secures the connection against vibration and accidental disconnection.

Is this a cable-to-cable or panel-mounted connector?

This is a straight-through, in-line connector designed specifically for cable-to-cable connections.
