PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount
  • name
  • name

PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Interface Type:
AC/DC
Cable Length:
Per Your Requirement
Rated Current:
50A
Jacket Material:
Plastic
Color:
Black, Red, Orange Or Customized
Protection Grade:
IP67
Supply Ability:
Monthly output: 10,000 sets
Highlight:

50A Rated Current Energy Storage Connector

,

1500V DC Waterproof Circular Connector

,

Non-Rotatable Stud Mount Connector

Product Description
PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount
The PG50A-OR-IP67 is a high-performance fixed energy storage connector featuring stud mounting for secure fixation and an IP67 rating for superior waterproofing.
Key Specifications
Parameter Specification
Product Name PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount
Rated Current 50A
Outside Diameter (OD) 5.2-6.3mm
Rated Voltage 1500V DC
Cable Cross-Sectional Area 10AWG(6mm²)
Flame Retardant Rating UL-94
Insulation Material FA66+GF
Contact Materials Copper T2/BeCu Silver/Tin Plating
Product Advantages
  • Stud Mounting for secure fixation
  • IP67 Rating for superior waterproofing
  • Non-Rotatable Design for stable connection
  • Orange Color for easy polarity identification

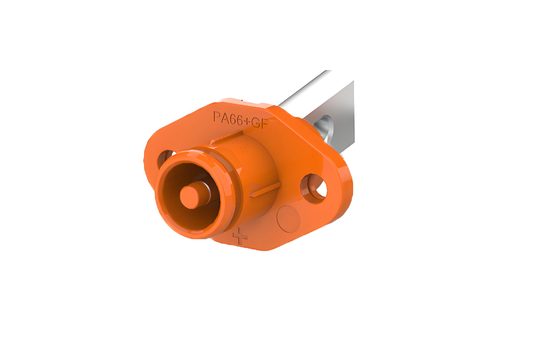

Product Images
PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 0 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 1 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 2 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 3 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 4 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 5 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 6 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 7 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 8 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 9 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 10 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 11 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 12 PG50A-OR-IP67 Fixed (Non-Rotatable) Energy Storage Connector - Orange Positive, Stud Mount 13
Frequently Asked Questions
What is the operating temperature range?
It operates reliably within -40°C to +100°C.
Is it resistant to chemicals and UV light?
Yes. The nylon material offers good resistance to oils, chemicals, and UV radiation.
What cable diameters does it fit?
This PG50A gland is designed for cables with a 5.2-6.3mm outer diameter.
