IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position
  • name
  • name

IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position

Brand Name: Cablein
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Current:
350A
Housing Material:
PVC/Rubber/Nylon
Insertion Life:
≥1900 Times
Metal:
Gilded Brass
Color:
Black/Orange
Waterproofrating:
IP67
Supply Ability:
Monthly output: 10,000 sets
Highlight:

20mm Waterproof Ring Energy Storage Connector

,

1500V DC Circular Connector

,

4/0AWG Cable Stud Type Connector

Product Description
IP67 Waterproof 350A Stud Type Energy Storage Connector - Fixed Position
High-performance energy storage connector featuring IP67 waterproof rating and robust 350A current capacity, designed for secure fixed-position installation.
Key Specifications
Parameter Specification
Product Name IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position
Rated Current 350A
Outside Diameter (OD) 20mm
Rated Voltage 1500V DC
Cable Cross-Sectional Area 4/0AWG(120mm²)
Flame Retardant Rating UL-94
Insulation Material FA66+GF
Contact Materials Copper T2/BeCu Silver/Tin Plating
Product Advantages
  • Robust 350A Current Handling
  • IP67 Rated Water & Dust Protection
  • Secure Stud-Mount Fixation
  • Fixed-Position (Non-Rotating) Design

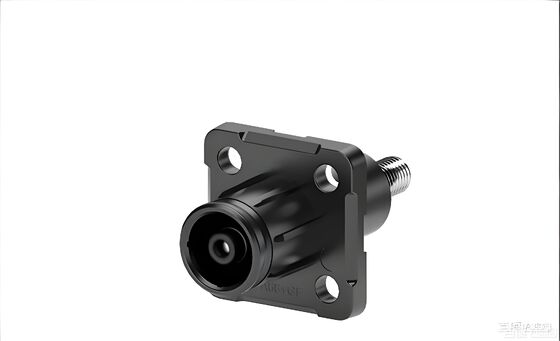

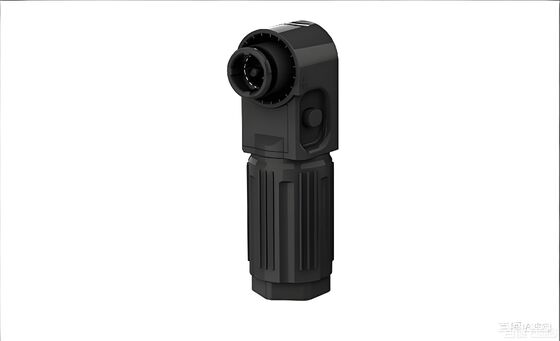

Product Images
IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 0 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 1 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 2 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 3 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 4 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 5 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 6 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 7 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 8 IP67 Waterproof 350A Stud Type Energy Storage Connector Fixed Position 9
Frequently Asked Questions
What is the key benefit of the fixed-position design?
It prevents terminal rotation during installation and use, ensuring proper alignment, a more reliable connection, and simplified, error-free wiring.
How does the IP67 rating protect the connector?
It provides complete protection against dust ingress and allows the connector to be temporarily immersed in water up to 1 meter deep, making it suitable for harsh outdoor or industrial environments.
Is this connector suitable for both positive and negative terminals?
While electrically capable, its standard black color typically identifies it as the negative pole connector for safe and correct system polarization.
