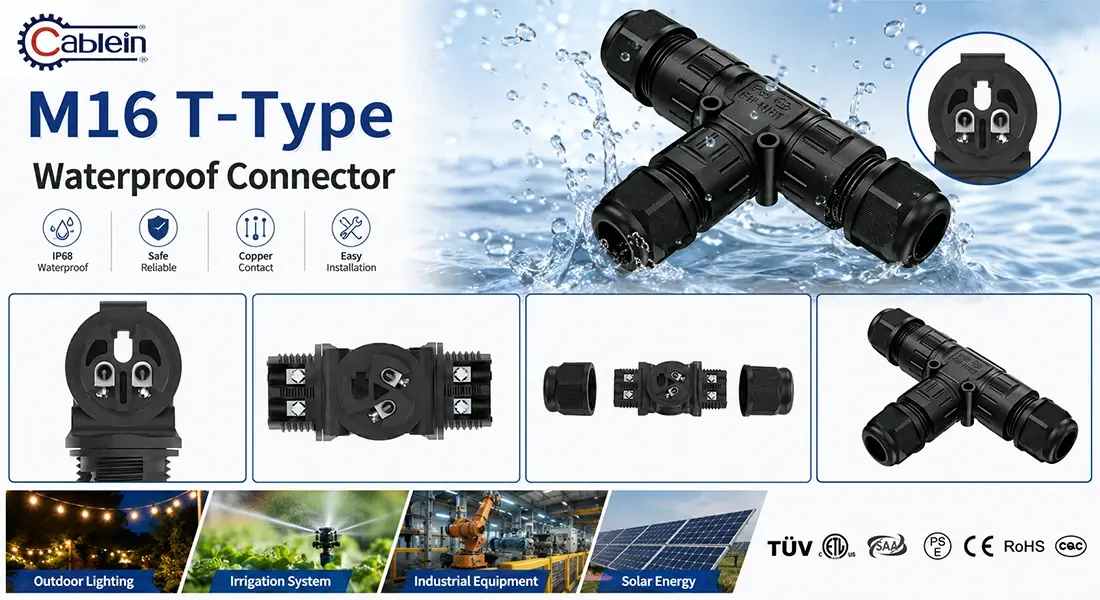

M16 T-Type Waterproof Connector
2. Maintains IP67 and IP68 waterproof integrity, perfect for exposed branch-circuit applications.
3. The T-shaped three-port configuration splits a single input into two separate output paths.
4. Tool-free termination is achieved via intuitive screw-type clamps, speeding up field wiring.
5. Rated for extreme temperatures from -40℃ to 105℃, the housing meets UL94-V0 safety standards.
6. Ensures durable and reliable signal distribution in harsh industrial environments.
7. CE and RoHS certified, with manufacturing processes overseen by ISO9001 protocols.
8. We offer customizable pin layouts and housing materials to suit unique branch layouts.
M16 T-Type Waterproof Connector – Reliable Three-Way Power & Signal Distribution
When your outdoor lighting network or industrial automation system demands dependable multi-point connections, Cablein's M16 T-Type Waterproof Connector delivers enterprise-grade performance you can count on. Built with high-strength PA66 nylon lodging and gold-plated contacts, this T-shaped intersection connector accomplishes IP67/IP68 assurance whereas part one input into two free yields. Supporting 2-3 shafts with a appraised current of 17.5A at 400V, it works faultlessly over -40℃ to 105℃. Tool-free screw terminals quicken field establishment, whereas the UL94-V0 flame-retardant shell and double fixing gaskets guarantee long-term unwavering quality. CE and RoHS certified beneath ISO9001:2015 fabricating conventions, our item streamlines complex daisy-chain wiring in unforgiving environments.
What Is an M16 T-Type Waterproof Connector?
An M16 T-Type Waterproof Connector is a precision-engineered three-way junction device featuring a 16mm metric thread diameter. It's designed to split electrical power or data signals from a single source into two separate paths—all within a single sealed housing.
This T-shaped arrangement kills bulky outside intersection boxes. You get speedier establishment and less potential disappointment focuses. The coordinates branching design decreases labor costs and rearranges your framework layout.
By combining strong waterproofing with natural wiring, this connector addresses common torment focuses. No more dampness entrance. No more time-consuming manual joining. Fair clean, solid dispersion in compact spaces.
Key Properties of the M16 T-Type Waterproof Connector
Robust Material Construction
Our M16 T-Type Waterproof Connector uses PA66 nylon for the shell. This material offers excellent mechanical strength, UV resistance, and flame retardancy to UL94-V0 standards. It won't crack or degrade under prolonged sun exposure or extreme cold.
Superior Sealing & Protection
Each port is equipped with a silicone O-ring gasket. This dual-seal design maintains IP67 and IP68 ingress protection. Your connections stay dry even when submerged or exposed to heavy rain.
High Conductivity Contacts
Gold-plated copper alloy terminals ensure low contact resistance—typically under 5mΩ. You get stable signal transmission and minimal heat buildup. Corrosion resistance extends service life in chemically aggressive environments.
Wide Operating Range
Rated for -40℃ to +105℃, the connector handles seasonal temperature swings without performance loss. Whether you're in Arctic cold or tropical heat, your circuits remain secure.
Flexible Current & Voltage Ratings
With a rated voltage of 400V and current capacity up to 17.5A, it suits both power distribution and control signaling. Available in 2-3 pole configurations to match your circuit requirements.
Applications of the M16 T-Type Waterproof Connector
Outdoor LED Lighting & Urban Infrastructure
Street lights, architectural floodlights, and tunnel lighting systems rely on efficient power distribution across long strings of fixtures. The T-junction lets you branch power to multiple luminaires without opening traditional junction boxes. Installation time drops, and maintenance becomes simpler.
Industrial Automation & Sensor Networks
Smart factories use this connector to split signals from PLCs to multiple sensors or actuators on conveyor lines. Even in oil-mist or wash-down zones, the IP68 seal keeps your network running. You maintain signal integrity while reducing wiring clutter.
Marine & Aquacultural Electronics
Shipborne navigation systems and underwater monitoring equipment face saltwater corrosion and hydrostatic pressure. The T-type design integrates multiple sensors into a centralized data bus. Each sealed port protects against moisture and salt spray, ensuring reliable operation in coastal or offshore installations.
Renewable Energy Systems
Solar inverters and wind turbine controllers need dependable branch connections for monitoring sensors. Our connector withstands UV radiation and temperature cycling. You get stable performance throughout the system's lifespan.
Advantages of Cablein's M16 T-Type Waterproof Connector
Tool-Free Screw Terminals
Intuitive clamp plan speeds up field wiring. No extraordinary instruments required. Specialists can total establishments speedier, cutting labor costs.
Integrated Three-Way Junction
One approaching cable parts into two autonomous yields from a central T-shaped lodging. Dispose of outside intersection boxes and diminish potential spill points.
Secure Board Mounting
The level base incorporates mounting gaps. You can secure the get together to boards or outlines for vibration resistance in versatile or mechanical equipment.
Color-Coded Inserts
Different circuit ways are simple to distinguish in complex formats. This visual help decreases wiring errors and disentangles troubleshooting.
Customizable Configurations
We offer custom fitted stick formats and lodging materials to suit interesting department necessities. Whether you require particular cable breadths (3.5–10mm) or wire segments (0.5–1.5mm²), we can adjust the design.
Why Choose Cablein Technology?
9 A long time of Industry Expertise
Since 2017, we've specialized in waterproof connectors and cable congregations. Over 30 utility show licenses back our inventive approach.
Advanced Fabricating Capabilities
Our 6,000 ㎡ office in Shenzhen houses exactness hardware and a 200+ solid group. Each item experiences 100% review for waterproof execution and electrical unwavering quality beneath ISO9001:2015 protocols.
Global Compliance & Certifications
CE, RoHS, ETL, PSE, SAA, TUV, and REACH certifications guarantee your ventures meet worldwide benchmarks. You pick up quicker endorsements and showcase access.
Fast Conveyance & Steady Inventory
We keep up over 10,000 pieces per thing in stock. Standard orders dispatch inside 7–10 days. Customized arrangements take after adaptable planning to coordinate your venture timeline.
Comprehensive Specialized Support
Our engineers give 24-hour help, from beginning plan discussion to after-sales investigating. You get end-to-end extend direction and responsive service.
Frequently Asked Questions
Q: What wire gages are congruous with this connector?
A: It obliges wire areas from 0.5mm² to 1.5mm², covering most low-to-medium current applications.
Q: Can I utilize it for submerged installations?
A: Yes. With IP68 certification, it withstands nonstop submersion. Guarantee all cable organs are legitimately fixed for most extreme sealing.
Q: Is the lodging safe to UV and chemicals?
A: The PA66 nylon shell offers amazing UV soundness and stands up to oils, solvents, and gentle acids. It's perfect for open air and mechanical environments.
Q: Do you offer custom post tallies or cable diameters?
A: Completely. We give OEM/ODM administrations, counting private form improvement. Share your details, and we'll build a solution.
Q: How do I guarantee appropriate installation?
A: Strip cable separator to the suggested length, embed wires into screw terminals, and fix until secure. At that point secure cable organs to compress the O-ring seals.
