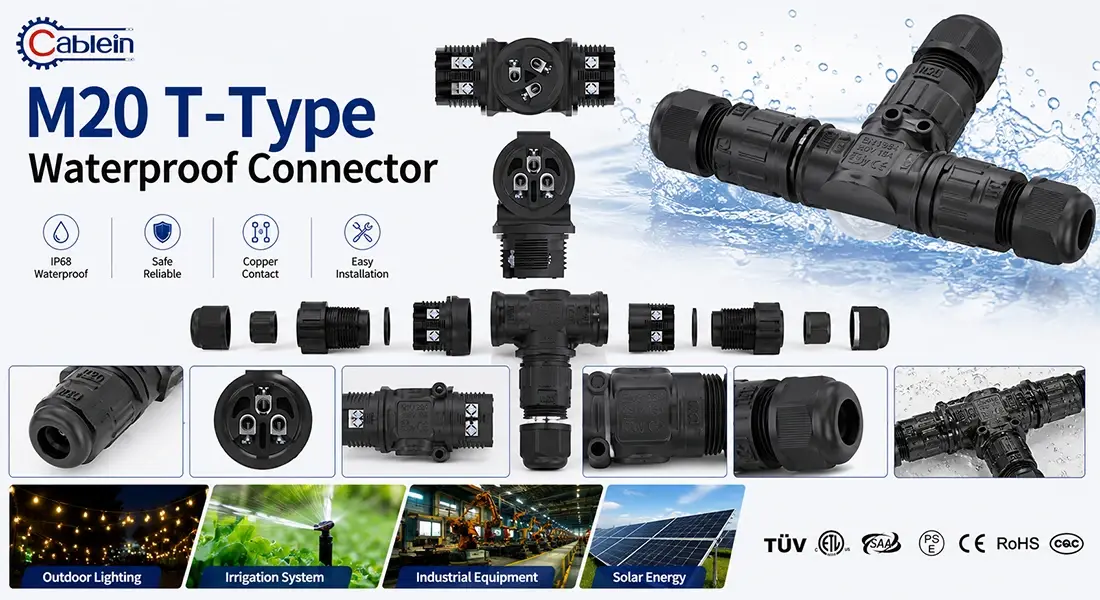

M20 T-Type Waterproof Connector
2. IP67 and IP68 ratings guarantee waterproof performance for outdoor branch connections.
3. The T-shaped design efficiently distributes power or signals from one entry to two exits.
4. Field installation is simplified by screw-type terminals that require no special tools.
5. Withstands temperatures from -40℃ to 105℃, enclosed in a UL94-V0 flame-retardant shell.
6. Provides consistent branch circuit performance even in persistently wet conditions.
7. Manufactured under ISO9001, with CE and RoHS compliance for international use.
8. We can tailor pin configurations and branch lengths to meet specific distribution needs.
M20 T-Type Waterproof Connector - Industrial-Grade 3-Way Branch Solution
When your project demands reliable power distribution in harsh environments, the M20 T-Type Waterproof Connector from Cablein Technology delivers enterprise-level performance you can trust. Built with strong PA66 nylon and gold-plated brass contacts, this connector accomplishes IP68 waterproof assurance for ceaseless submersion up to 10 meters. It handles appraised streams of 24A (2-4P) and 17.5A (5-6P) at 400V, working dependably from -40℃ to +105℃. The screw-type terminals streamline field establishment without uncommon devices, whereas the UL94-V0 flame-retardant shell and silicone fixing gasket guarantee reliable department circuit execution. Made beneath ISO9001:2015 with CE and RoHS compliance, this T-shaped connector effectively parts one input into two yields for your open air control networks.
What Is the M20 T-Type Waterproof Connector?
This high-performance 3-way branching arrangement is outlined with M20 threading to encourage reliable control and flag dissemination where conventional intersection boxes drop short.
The 'T' molded design empowers consistent 1-in-2-out or 2-in-1-out parallel wiring topologies. You get secluded adaptability without bulky enclosures.
Three critical problems solved:
- Reduced installation costs – No complex manual field wiring required
- Water ingress prevention – Sealed protection against moisture and corrosion
- Minimized downtime – Modular design allows quick replacements without extensive rewiring
Your decentralized power networks become more resilient and easier to maintain.

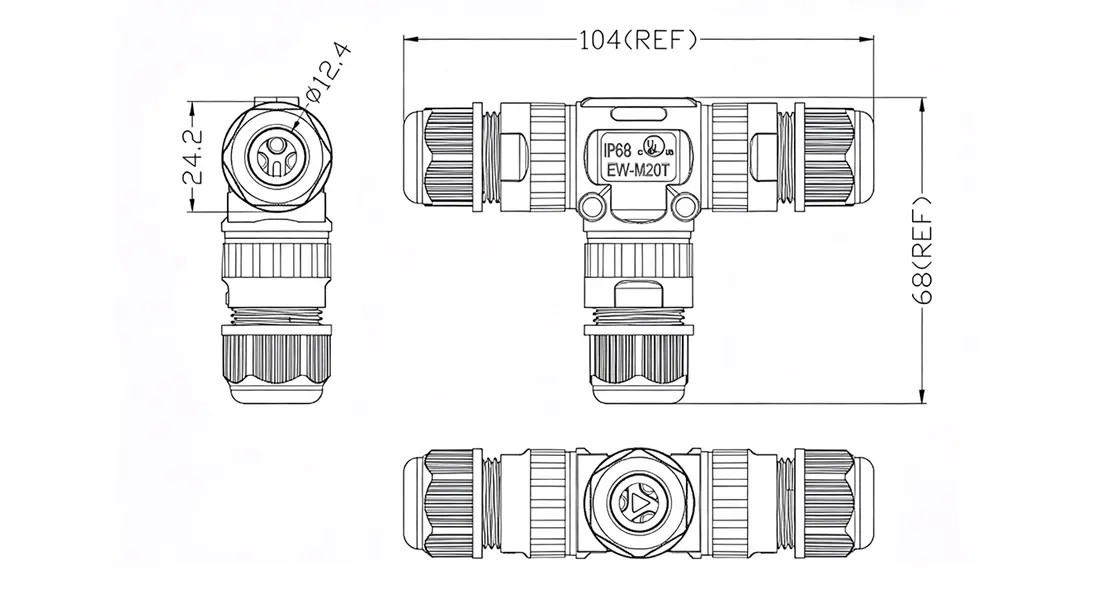

Technical Specifications That Matter
Understanding the specifications helps you match this connector to your exact requirements.
Core Parameters:
- Number of poles: 2-6P configurations
- Rated Voltage: 400V
- Rated Current: 24A for 2-4P; 17.5A for 5-6P
- Cable Diameter: Accommodates 5-9mm and 9-12mm cables
- Wire Section: 0.5-2.5mm² (2-4P); 0.5-1.5mm² (5-6P)
Material Excellence:
The housing uses UV-stabilized PA66 with UL94V-0 flame retardant rating. Gold-plated solid brass pins provide high conductivity with contact resistance ≤5mΩ to prevent overheating.
Insulation resistance exceeds 2000MΩ at 500V DC. The silicone sealing gasket maintains integrity across the full temperature range.
Protection Rating:
IP68 certification means the M20 T-Type Waterproof Connector withstands continuous submersion for 72 hours at 10 meters depth. That's beyond the temporary immersion of IP67 ratings.
Key Advantages for Your Installation
Three-Port T-Design
One input feeds two separate output lines efficiently. This topology reduces the number of connection points in your system.
Tool-Free Installation
Screw-fixed terminals with brass contacts mean your team can wire connections quickly in the field. No specialized crimping tools or soldering equipment needed.
Outdoor Durability
The PA66 housing incorporates F1-rated UV resistance with chemical stabilizers. Your connectors won't become brittle or crack after 10+ years of sun exposure.
Secure Mechanical Coupling
Threaded coupling on all three ports ensures connections stay tight under vibration. Recommended installation torque is 1.5-2.0 Nm for perfect sealing.
Wide Temperature Performance
From -40℃ to +105℃ operating range, this connector handles extreme seasonal variations and industrial heat cycles without degradation.
Real-World Applications
Smart LED Infrastructure
Street lighting, tunnel illumination, and architectural floodlighting all benefit from daisy-chain power systems. The product creates efficient branch points that survive heavy rain and humidity.
Marine and Aquaculture Engineering
Underwater sensor networks, oxygenation pumps, and automated feeding systems need salt spray resistance and continuous submersion capability. This connector delivers both.
Industrial IoT and Renewable Energy
Outdoor solar PV arrays and decentralized automation sensors require modular branching solutions. You get vibration-proof and thermal-stable connections in high-fluctuation environments.
Urban Landscape Lighting
Stadium lighting and decorative installations face weather exposure year-round. The flame-retardant housing and superior sealing keep your systems operational.
Quality Control Process
Cablein implements comprehensive testing to guarantee 100% field reliability for every M20 T-Type Waterproof Connector.
Air Tightness Verification
Vacuum decay and pressure rise methods validate interfacial and cable seal integrity against IP68 requirements.
Salt Spray Testing
48-96 hour corrosive atmosphere simulation confirms anti-oxidation properties of metal contacts for marine environments.
Temperature Rise Monitoring
100% duty cycle testing at maximum rated current ensures insulation won't melt during continuous operation.
Mechanical Stress Evaluation
Pull-out force resistance confirms the cable gland withstands installation stress. Mating cycle testing validates 1000+ connections.
Dielectric Withstanding Voltage
2000V AC testing verifies no flashover or breakdown occurs under surge conditions.
Frequently Asked Questions
Q: What's the commonsense distinction between IP67 and IP68 for this connector?
A: IP67 permits transitory drenching for 30 minutes at 1 meter. Our IP68-rated connector is tried for nonstop submersion—72 hours at 10 meters depth—ensuring long-term seal soundness in for all time damp locations.
Q: Can I utilize distinctive cable breadths in one T-connector?
A: Completely. Utilize conversely inside fixing grommets coordinated to each cable's external breadth. This keeps up the waterproof seal whereas obliging blended cable sizes.
Q: How does PA66 fabric stand up to daylight degradation?
A: The PA66 utilized is F1-rated for UV resistance with chemical stabilizers. These anticipate polymer chain breakdown, so the lodging remains solid and adaptable indeed after 10+ a long time of open air exposure.
Q: Is this connector appropriate for RS485 information transmission?
A: Yes. High-purity gold plating on contacts guarantees negligible flag constriction and steady impedance. You can utilize it for both control and low-voltage information signals reliably.
Q: What establishment torque ought to I apply to the M20 locking nut?
A: Apply 1.5-2.0 Nm utilizing a calibrated torque torque. This accomplishes idealize IP68 fixing without over-stressing the strings or harming the housing.
Q: What wire gages work with diverse post configurations?
A: For 2-4 post adaptations, utilize 0.5-2.5mm² wire segments. For 5-6 shaft arrangements, utilize 0.5-1.5mm² areas. Coordinate your wire gage to the current capacity needed.
Why Choose Cablein Technology
Founded in 2017 in Shenzhen's high-tech manufacturing hub, we operate a modern 6,000 ㎡ production facility with over 200 skilled employees.
Our products carry international certifications including CE, RoHS, ETL, TUV, and ISO9001:2015. We hold over 30 utility model patents for waterproof connectivity innovations.
Fast Delivery: We maintain stable inventory exceeding 10,000 pieces per item. Standard delivery takes 7-10 days, with flexible scheduling for custom orders.
Global Logistics: Long-term partnerships with UPS, DHL, and FedEx ensure efficient worldwide shipping by air and sea.
Technical Support: Our engineering team provides 24-hour assistance, end-to-end project support, and professional customization consultation.
We support OEM/ODM requirements and private mold development. Whether you need standard configurations or tailored pin layouts and branch lengths, we can meet your specifications.
Ready to Upgrade Your Connection System?
Contact nick@cableinco.com to discuss your M20 T-Type Waterproof Connector requirements, request technical specifications, or arrange sample evaluation for testing in your specific environment.
