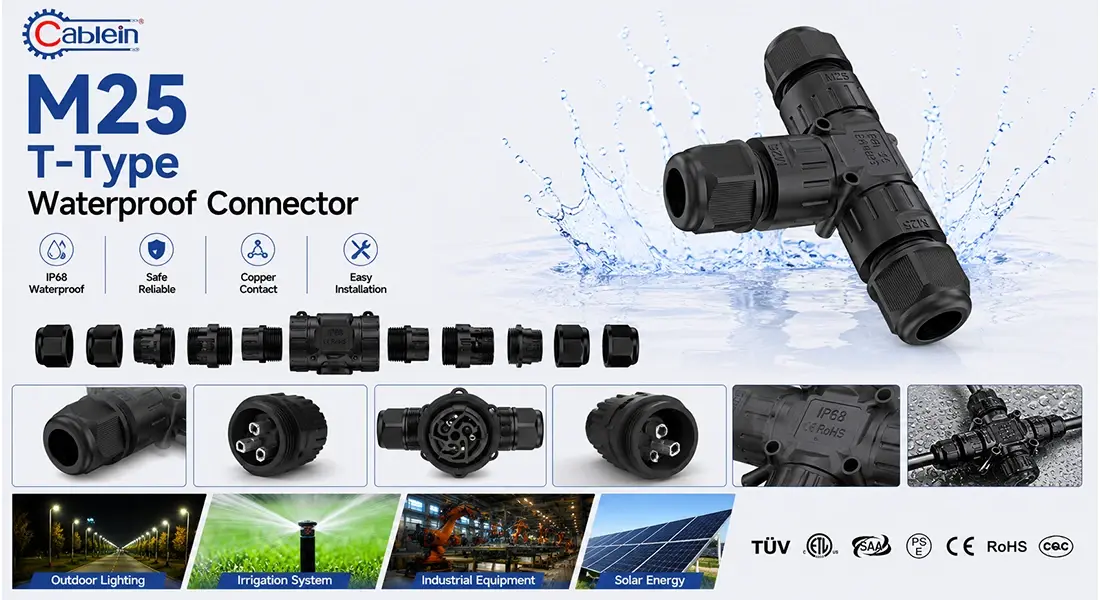

M25 T-Type Waterproof Connector
2. Assured IP67 and IP68 waterproofing makes it ideal for exposed multi-drop connections.
3. The T-shaped junction box layout channels one incoming line to two outgoing branches.
4. Tool-free wiring is achieved through integrated screw clamps, expediting on-site setup.
5. Engineered for -40℃ to 105℃ operation, the enclosure complies with UL94-V0 flammability codes.
6. Guarantees failure-free signal or power splitting in harsh outdoor settings.
7. Follows ISO9001 quality guidelines and holds CE and RoHS certifications.
8. Custom pin arrangements and branch wire lengths are available to match your layout.
M25 T-Type Waterproof Connector – Enterprise-Grade Junction Solution for Harsh Environments
When your project demands reliable signal or power splitting in exposed locations, Cablein's M25 T-Type Waterproof Connector delivers proven performance. Built from flame-retardant PA66 nylon with gold-plated brass contacts, this intersection arrangement accomplishes IP67/IP68 security over a -40℃ to 105℃ working run. Supporting 2-5 post setups with up to 41A current capacity (2-4P) and 400V appraised voltage, it obliges 5-9mm, 9-12mm, and 10-14mm cable distances across through conversely fixing embeds. Tool-free screw-clamp wiring quickens field establishment, whereas CE and RoHS certifications ensure compliance with universal security measures for open air lighting, sun oriented clusters, and mechanical computerization networks.
What Is an M25 T-Type Waterproof Connector?
Think of it as a compact, weatherproof junction box built directly into your cabling. The M25 T-Type Waterproof Connector features a three-port design—one channel and two department outlets—eliminating bulky walled in areas and lessening labor costs amid establishment. Its metric M25 string interface locks safely to gear outlines, whereas coordinates silicone gaskets seal each harbour against clean, dampness, and chemical exposure.
You'll discover this connector priceless when parallel circuiting is required but space is constrained. Not at all like conventional join strategies that take off defenseless focuses uncovered to rain or submersion, this T-shaped lodging keeps up airtight keenness indeed after a long time of open air utilize. The result? Ceaseless control or information transmission with zero downtime in basic applications.

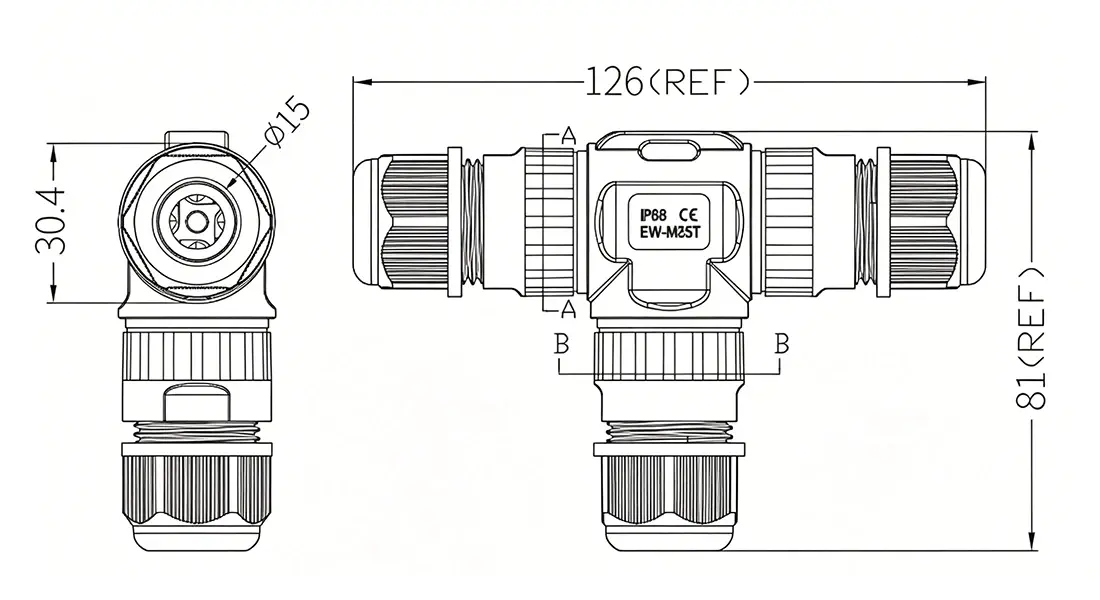

Core Technical Specifications
Understanding the numbers helps you specify confidently:
- Pole Options: 2-pin to 5-pin configurations
- Voltage Rating: 400V for high-power distribution
- Current Capacity: 41A (2-4 pole) | 24A (5 pole)
- Temperature Range: -40℃ to +105℃ for extreme climates
- Waterproof Grade: IP68 (2-5 meters immersion, 72 hours)
- Wire Cross-Section: 0.5-6mm² (2-4P) | 0.5-2.5mm² (5P)
- Cable Diameter: Compatible with 5-14mm OD cables
- Housing Material: UL94-V0 rated PA66 nylon
- Contact Material: Nickel- or gold-plated brass
These parameters ensure stable operation in coastal salt spray, high-UV deserts, and submerged aquaculture systems.
Why Choose Cablein's T-Type Solution?
1. One-In, Two-Out Branch Architecture
The T-shaped layout splits a single incoming feed into two independent branches. Each port features separate screw terminals, giving you individual circuit control without additional junction boxes.
2. True IP68 Multi-Directional Sealing
Silicone O-rings and precision-molded glands seal all three ports simultaneously. Whether rain drives horizontally or your installation sits underwater, moisture stays out.
3. Tool-Free Field Installation
Integrated screw clamps accept stripped wire directly—no crimping tools or soldering irons required. This cuts commissioning time by up to 50% on large projects.
4. Mounting Flanges for Secure Attachment
Molded flanges on the housing let you bolt the connector directly to equipment frames, cable trays, or pole mounts, preventing cable strain and accidental disconnection.
5. Interchangeable Cable Glands
Swap sealing inserts to match your cable diameter—5-9mm, 9-12mm, or 10-14mm—without purchasing separate connector models.
6. Flame-Retardant, UV-Stable PA66
UL94-V0 flammability certification and UV inhibitors prevent housing degradation under decades of sunlight exposure, meeting stringent fire-safety codes.
Real-World Applications
Outdoor LED Lighting Networks
Street lighting and architectural facade systems rely on the product to branch main power lines to individual fixtures. Municipalities value the connector's ability to withstand heavy rainfall and temperature swings while reducing maintenance callouts.
Smart Agriculture & Aquaculture
Underwater pH sensors, robotized water system valves, and submersible pumps request associations that stand up to fertilizer chemicals and ceaseless inundation. The airtight seal and corrosion-resistant contacts guarantee 24/7 uptime in angle ranches and greenhouses.
Renewable Energy Installations
Solar PV clusters utilize T-type connectors to combine board strings and course control to inverters. The UV-stable lodging and vibration-proof locking component provide solid execution over 25+ year board life expectancies, indeed in leave or coastal environments.
Industrial Automation & Sensor Networks
Factory floors and open air transport frameworks send these connectors for protected flag branching, keeping up information astuteness in high-EMI situations whereas assembly IP68 ingress-protection requirements.
Quality Assurance You Can Trust
Every Cablein M25 T-Type Waterproof Connector undergoes comprehensive testing:
- IP68 Immersion Test: 72-hour submersion at 2-5 meters to verify seal integrity
- Salt Spray Test: 96-hour exposure simulating coastal corrosion
- Pull-Out Force Test: Confirms cable glands withstand mechanical strain
- Insulation Resistance (IR) & Dielectric Voltage (DWV): Prevents short circuits under rated voltage
- Thermal Cycle Test: -40℃ to +105℃ cycles ensure gaskets and housing resist cracking
Our ISO9001:2015-certified generation office in Shenzhen keeps up 100% last review, ensuring batch-to-batch consistency and compliance with CE, RoHS, and TUV standards.
Frequently Asked Questions
Q1: What cable breadths does the item accept?
A: It obliges 5-9mm, 9-12mm, and 10-14mm cable external distances across utilizing conversely silicone gaskets for a secure IP68 seal.
Q2: Can I introduce this connector submerged permanently?
A: Yes—when legitimately torqued concurring to determinations, the IP68 rating bolsters long-term drenching up to 5 meters depth.
Q3: What's the distinction between screw-terminal and push-in versions?
A: Screw terminals offer prevalent vibration resistance for apparatus; push-in terminals split establishment time in huge lighting projects.
Q4: Does this connector carry universal certifications?
A: High-quality models from Cablein hold CE, RoHS, and TUV certifications, assembly European security and natural standards.
Q5: How does the T-design handle flag impedances in information lines?
A: Protected inner contacts and grounded lodgings minimize EMI/RFI, protecting flag astuteness in mechanical sensor networks.
Q6: What's the current capacity for distinctive stick counts?
A: 2-4 shaft forms handle 41A; 5-pole arrangements bolster 24A at 400V appraised voltage.
Q7: Can I customize branch-wire lengths or stick arrangements?
A: Absolutely—Cablein's OEM/ODM benefit tailors setups to coordinate your correct format and electrical requirements.
Partner With Cablein for Reliable Connectivity
Ready to eliminate junction-box headaches and boost installation efficiency? Whether you need technical datasheets, M25 T-Type Waterproof Connector sample, or custom cable-length configurations, our engineering team is here to help.
Contact us today: nick@cableinco.com – Let's build connections that last.
