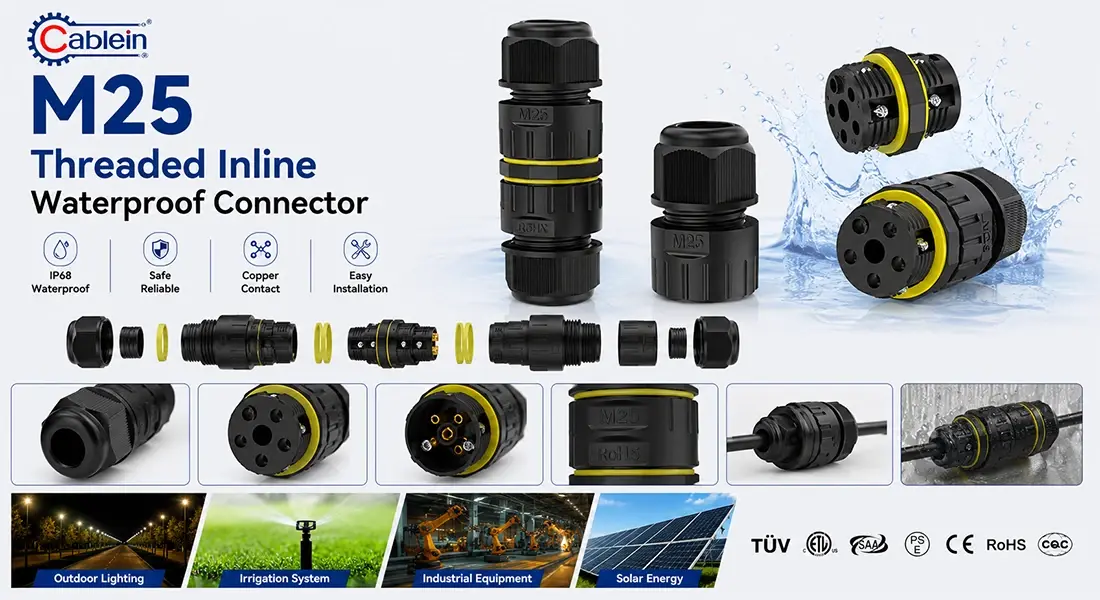

M25 Threaded Inline Waterproof Connector
2. Delivers robust IP67/IP68 waterproof sealing for heavy-duty industrial cable extensions.
3. Its straight pass-through architecture supports high-current transmission over long runs.
4. Screw-type wire termination provides a vibration-proof connection suitable for large-gauge cables.
5. Operates across a -40℃ to 105℃ temperature spectrum, featuring a UL94-V0 rated body.
6. Designed for an extended operational life in the most demanding power distribution scenarios.
7. Production is certified under ISO9001 and complies with CE and TUV standards.
8. Custom solutions include specific pin counts, overmold colors, and pre-assembled custom lengths.
M25 Threaded Inline Waterproof Connector – Enterprise-Grade Cable Connection Solution
Cablein Technology's M25 Threaded Inline Waterproof Connector delivers enterprise-level reliability with IP67/IP68 sealing, suitable for demanding outdoor and industrial applications. Built from premium PA66 nylon and highlighting gold-plated copper amalgam contacts, this connector handles 2-5 posts with evaluated current up to 41A (2-4P) and 24A (5P) at 400V. Its vigorous plan works immaculately over -40℃ to 105℃, assembly UL94-V0 fire security measures. The strung M25 coupling gives prevalent vibration resistance, whereas pleasing cable breadths from 5mm to 14mm and wire segments up to 6mm². ISO9001, CE, and TUV certifications ensure reliable quality for your basic control dissemination needs.
Why Choose Our M25 Waterproof Inline Connector?
Built for Extreme Conditions
Your hardware faces rain, tidy, and temperature swings every day. Our strung inline connector stands up to these challenges. The silicone O-ring makes a airtight seal that pieces dampness infiltration. Whether you're introducing open air lighting or marine hardware, you get reliable security against water ingress.
Heavy-Duty Power Transmission
You need connectors that won't become bottlenecks in your power chain. The screw-type wire termination accepts thick cables up to 6mm² cross-section. This means you can safely transmit higher currents without overheating. The gold-plated contacts minimize resistance and prevent oxidation over years of service.
Field-Friendly Installation
Time things when you're working on-site. The straight pass-through plan rearranges cable steering in tight spaces. You won't require bulky intersection boxes any longer. Fair strip your wire, embed it into the screw terminal, and fix. A standard screwdriver is regularly all you require to total the connection.
Temperature Extremes Won't Stop It
From Arctic cold to desert heat, this M25 Threaded Inline Waterproof Connector maintains stable performance. The PA66 housing resists UV degradation and mechanical impact. You can install it in outdoor environments knowing it will function through years of sun exposure and seasonal temperature shifts.
Key Technical Specifications
- Pole Configuration: 2P, 3P, 4P, 5P options
- Voltage Rating: 400V AC/DC
- Current Capacity: 41A (2-4 pole) / 24A (5 pole)
- IP Rating: IP67/IP68 waterproof protection
- Cable Diameter: 5-9mm / 9-12mm / 10-14mm ranges
- Wire Gauge: 0.5-6mm² (2-4P), 0.5-2.5mm² (5P)
- Shell Material: PA66 nylon with UL94-V0 rating
- Contact Material: Gold-plated copper alloy
- Temperature Range: -40℃ to +105℃
- Thread Size: M25 metric standard
Where You'll Use This Connector
Outdoor Architectural Lighting
Your scene ventures request dependable associations that survive climate extremes. Introduce these connectors between Driven floodlights, divider washers, and control supplies. The IP68 rating implies they'll keep working indeed amid overwhelming rain or transitory submersion.
Industrial Automation Systems
Factory floors present harsh conditions—water washdowns, chemical exposure, constant vibration. This connector links your sensors and actuators to control units without signal loss. The threaded coupling resists vibration that would loosen push-fit alternatives.
Marine and Aquaculture Equipment
Saltwater situations devastate conventional connectors rapidly. The corrosion-resistant materials and fixed plan make this perfect for seaward observing frameworks and submerged lighting. You'll see steady execution indeed in persistent high-humidity conditions.
Renewable Energy Installations
Solar arrays and EV charging stations need connectors that last decades outdoors. The UV-resistant housing prevents degradation from constant sun exposure. The wide temperature range handles both winter cold and summer panel heat.
What Makes This Connector Superior
Reusable Design for Flexibility
Unlike permanent splices, you can disconnect and reconnect these units hundreds of times. This makes maintenance and system reconfiguration much easier. You won't need to cut cables and start over when changes are needed.
Multiple Termination Options
Choose between screw-type terminals for field wiring or solder connections for workshop pre-assembly. This flexibility lets you match your installation method to the situation. Both options provide secure mechanical and electrical connections.
Proven Material Performance
PA66 nylon isn't just waterproof—it resists oils, acids, and alkalis found in industrial settings. The material maintains mechanical strength across the full temperature range. UV stabilizers prevent the brittleness that affects cheaper plastics over time.
High Mating Cycle Life
The threaded coupling mechanism provides consistent sealing performance across thousands of connections. You won't see seal degradation or loosening that plagues bayonet-style connectors. Each reconnection achieves the same IP rating as the first.
Frequently Asked Questions
Q: What cable distance across run is consistent with the product?
A: Regularly, these oblige cable breadths from 6mm to 14mm, depending on the inner elastic seal (grommet) size.
Q: Can these connectors be reused or are they permanent?
A: They are planned for tall mating cycles and are completely reusable, making them perfect for brief establishments or maintenance-heavy equipment.
Q: Is a extraordinary device required for assembly?
A: Most M25 connectors include screw-terminal or push-in plans requiring as it were a standard screwdriver or are tool-free, in spite of the fact that a torque is prescribed to accomplish the particular torque for IP68 sealing.
Q: How does the item handle UV exposure?
A: The PA66 or PC materials utilized are upgraded with UV stabilizers to avoid embrittlement or splitting amid multi-year open air exposure.
Q: What is the fire rating of these connectors?
A: Professional-grade M25 connectors ordinarily meet UL94-V0 combustibility measures, guaranteeing they are self-extinguishing in the occasion of an electrical fault.
Quality You Can Trust
Every connector experiences thorough testing some time recently shipment. Our ISO9001:2015-certified generation office performs salt splash maturing tests, separator resistance confirmation, and warm cycle testing. We subject each clump to pull-out quality tests and discuss spillage checks. This guarantees your item arrives prepared for a long time of trouble-free service.
CE, TUV, and RoHS compliance implies you can unquestionably send these connectors in European markets and other locales with strict security prerequisites. Our quality control catches issues some time recently they reach your extend site
Custom Solutions Available
We understand standard products don't fit every application. Cablein offers customization options including:
- Specific pin counts for your signal requirements
- Custom overmold colors for project identification
- Pre-assembled cables with connectors at custom lengths
- Specialized cable entry sizes for unique wire gauges
Our engineering team works with you to develop solutions that match your exact specifications. With over 30 utility model patents and 9 years of industry experience, we can tackle complex connectivity challenges.
Contact Us
Ready to secure your M25 Threaded Inline Waterproof Connector? Contact nick@cableinco.com to request technical specifications, discuss custom configurations, or obtain samples for testing.
