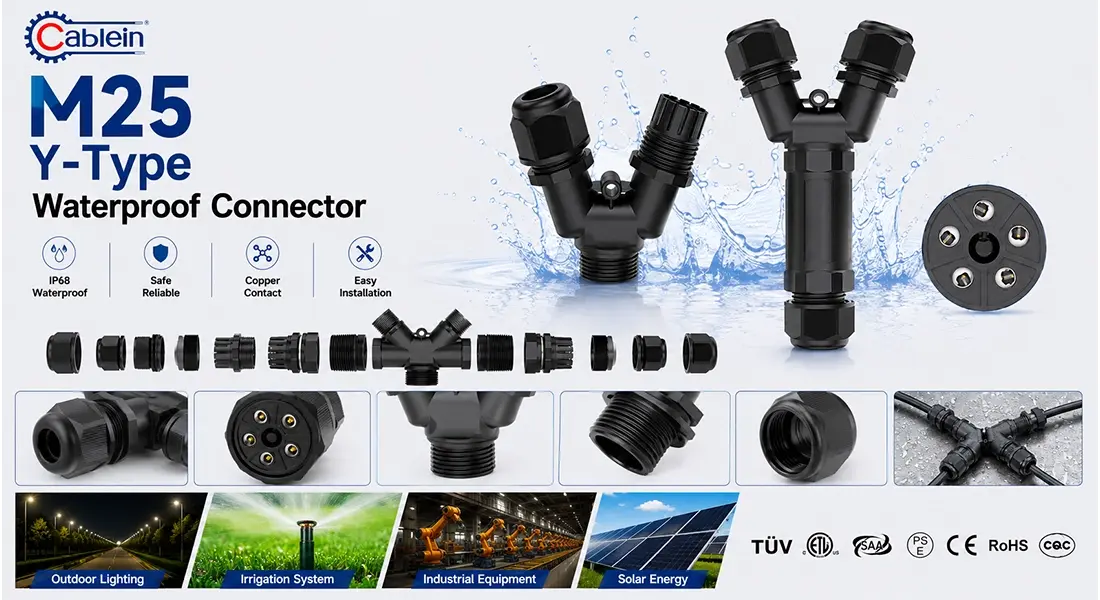

M25 Y-Type Waterproof Connector
2. IP67 and IP68 waterproof ratings ensure reliable service in wet, exposed locations.
3. The Y-shaped three-port design offers an alternative cable exit angle for easier routing.
4. Screw-type terminals provide secure wire fixation, simplifying complex installations.
5. Rated for -40℃ to 105℃ temperatures, housed in a UL94-V0 flame-retardant material.
6. Delivers long-term reliability for splitting power or signals in confined spaces.
7. Manufactured under ISO9001 with CE certification for quality assurance.
8. Custom options include pin configurations, housing colors, and pre-wired branches.

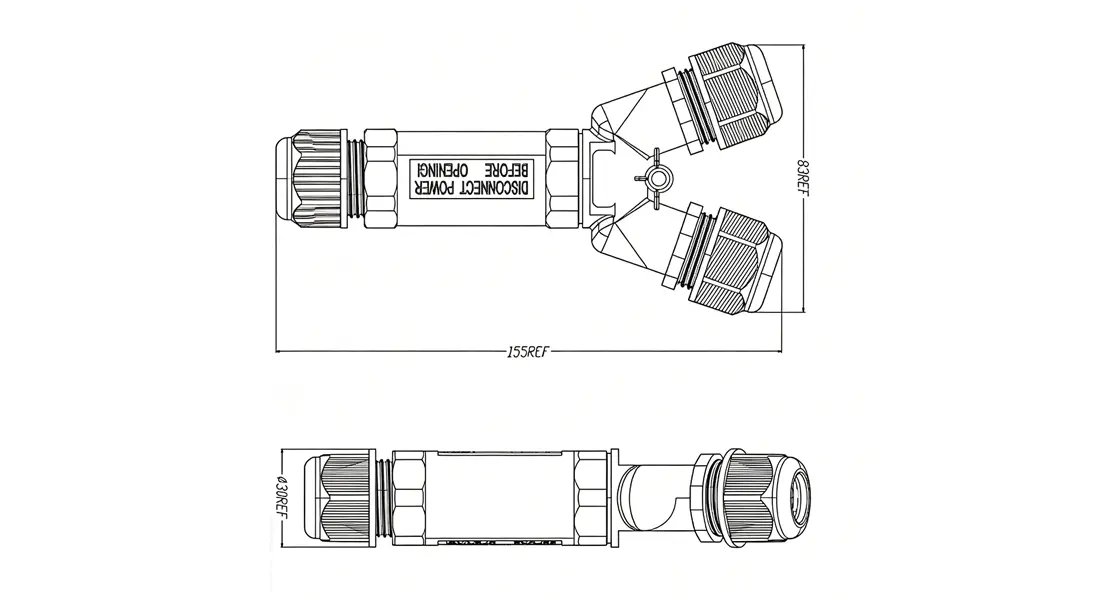

M25 Y-Type Waterproof Connector – Enterprise-Grade Cable Branching Solution
When your project demands reliable signal and power distribution in challenging outdoor environments, the M25 Y-Type Waterproof Connector delivers proven performance. Built by Cablein Innovation with PA66 nylon lodging and gold-plated copper amalgam contacts, this connector accomplishes IP67/IP68 waterproof evaluations and works over -40℃ to +105℃. Its Y-shaped three-port plan parts one input into two department circuits whereas keeping up screw-type terminals for secure obsession. With evaluated current taking care of up to 41A (2–4P) or 24A (5P) at 400V, and flame-retardant UL94-V0 certification, it underpins cables from 5–14mm breadth and wire areas from 0.5–6mm². ISO9001 fabricating and CE compliance ensure steady quality for Driven lighting, sun oriented establishments, and mechanical automation.
What Is an M25 Y-Type Waterproof Connector?
The M25 Y-Type Waterproof Connector is a specialized junction component featuring a 25mm metric thread interface and branching "Y" structure. It transforms a single power or signal cable into two separate routes without bulky junction boxes.
This design solves critical field challenges:
- Reduced labor costs during installation
- Space savings in compact equipment enclosures
- Lower failure rates versus manual splicing in wet or outdoor settings
By combining pre-molded IP-rated sealing with a streamlined form factor, you achieve electrical continuity and environmental protection in one package.
Key Technical Properties
Material & Environmental Resilience
- Housing: High-grade Nylon PA66 with UL94-V0 flame retardancy and UV stabilization for 10+ years of outdoor exposure
- Seals: High-elasticity silicone or EPDM resistant to oils and mild acids
- Operating range: -40°C to +105°C, ideal for extreme climates
Electrical Performance
- Rated voltage: 400V
- Rated current: 41A (2–4 pole) / 24A (5 pole)
- Contact resistance: <5mΩ
- Insulation resistance: >2000MΩ at 500V DC
Compliance & Standards
CE, RoHS, IP67/IP68, ISO9001:2015 certified for global projects. These credentials ensure reliability under mechanical vibration and thermal cycling.
Design Advantages That Simplify Your Installation
1. Smart Cable Routing
Two branch arms diverge at an angle, allowing cables to exit in separate directions. This Y geometry distributes pull forces evenly, reducing stress on any single cable.
2. Accessible Screw Terminals
Terminal blocks are positioned for easy wiring of both branch circuits. Removable design lets you adjust connections without disconnecting field cables.
3. Triple-Point IP68 Sealing
Silicone gaskets seal all three entry points. The PA66 housing resists UV degradation and maintains integrity through temperature extremes.
4. Wide Cable Compatibility
Accommodates 5–9mm, 9–12mm, or 10–14mm cable diameters. Wire sections range from 0.5–6mm² (2–4P) to 0.5–2.5mm² (5P).
Where the M25 Y-Type Waterproof Connector Excels
1. Smart City LED Infrastructure
Daisy-chain street lighting and architectural floodlights with confidence. This connector handles high-voltage power distribution across long distances, even in rain and snow.
2. Marine & Aquaculture Engineering
Salt spray resistance (up to 96–144h tests) protects offshore monitoring systems and underwater sensor arrays. Traditional connectors fail due to electrolytic corrosion; ours do not.
3. Renewable Energy Systems
Branch control signals and power to multiple actuators in solar PV tracking and wind turbine networks. Dust-heavy, high-temperature desert environments are no match for PA66 durability.
Rigorous Quality Control You Can Trust
Professional purchasers rely on five critical industry-standard tests:
- IP68 Immersion Test: 1.5 meters for 72 hours—zero moisture ingress
- Salt Spray Test (ASTM B117): Validates anti-corrosion on gold/nickel-plated contacts
- Mechanical Tension Test: Cable glands withstand minimum 100N force
- Thermal Shock Test: Cycles extreme temperatures to detect cracks or seal deformation
- Contact Resistance & High-Pot Testing: Ensures dielectric strength and prevents arcing under peak load
Every unit leaves our 6,000㎡ Shenzhen facility after 100% inspection, backed by ISO9001:2015 protocols.
Frequently Asked Questions
Q: What is the essential distinction between M25 and M20 Y-Type connectors?
A: The M25 variation offers a bigger inside depression, supporting higher current loads—up to 25A—and thicker cable external breadths (regularly 8–14mm). M20 suits lighter applications.
Q: Can this connector handle both DC and AC?
A: Yes. It's appraised for both, given voltage and current remain inside the 400V/41A (or 24A for 5P) specification.
Q: How do I guarantee the seal locks amid field installation?
A: High-quality M25 connectors highlight a strung coupling with a material tap or visual arrangement check. Apply 0.8–1.2Nm torque to the organ nut for a secure seal.
Q: Is PA66 fabric helpless to hydrolysis in steady water immersion?
A: No. Our industrial-grade PA66 is stabilized for long-term water contact and passes the UL 746C f1 weatherability test.
Q: Are custom branching proportions past 1-to-2 available?
A: Completely. The M25 stage underpins H-type (1-to-3) and F-type (multi-drop) setups utilizing the same fixing innovation for complex dissemination needs.
Customization Options for Your Project
- Pin arrangements: 2P to 5P
- Housing colors: Standard dark, gray, or custom RAL codes
- Pre-wired branches: Indicate cable length and end type
- Private form improvement: OEM/ODM back with over 30 utility show licenses backing our R&D team
With steady stock surpassing 10,000 pieces per thing and standard conveyance inside 7–10 days, we keep your venture on schedule.
Ready to Upgrade Your Cable Distribution?
Contact us at nick@cableinco.com to request technical M25 Y-Type Waterproof Connector specifications, discuss sample availability, or confirm compatibility with your application. Bookmark this page for future reference and explore how Cablein's nine years of waterproof connector expertise can solve your toughest field challenges.
