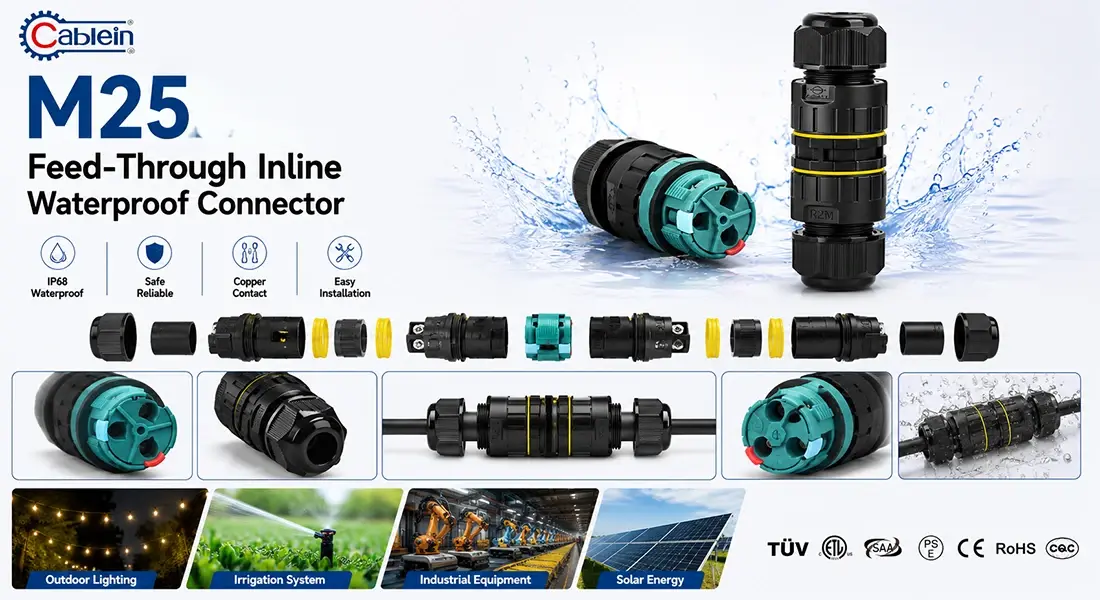

M25 Feed-Through Inline Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings.
3. Straight feed-through design allows cable to enter from one end and exit from the other without branches.
4. Cable and connector are factory overmolded into one piece, ready for use out of the box.
5. CE and TUV certified, compliant with RoHS standards.
6. Operating temperature range from -40℃ to 105℃ for various industrial environments.
7. Technical consultation and quick sampling services are available.
8. Custom options include pin count, cable length, and exit orientation.
M25 Feed-Through Inline Waterproof Connector - Enterprise-Grade Industrial Solution
When you need reliable electrical connections in harsh environments, the M25 Feed-Through Inline Waterproof Connector from Cablein Technology delivers unmatched performance. Built with high-grade PA66 nylon lodging and gold-plated copper amalgam contacts, this connector offers IP67/IP68 waterproof security with a appraised voltage of 450V and current capacity up to 16A. Working consistently over -40℃ to +105℃, it highlights manufacturing plant overmolded development that kills field wiring dangers. With CE and TUV certifications, back for 4-5 post setups, and cable distances across from 5-14mm, this straight feed-through plan jam your cable judgment whereas guaranteeing zero dampness ingress.
What Makes Our Feed-Through Connector Different?
Traditional connectors regularly come up short when uncovered to rain, clean, or extraordinary temperatures. Our inline waterproof connector fathoms these challenges with a straight-through design that lets your fundamental cable pass persistently without cutting or splicing.
The silicone fixing ring makes a watertight boundary. Indeed amid drawn out submersion, water cannot enter the association point. This things when you're introducing open air lighting frameworks or renewable vitality gear that faces consistent climate exposure.
Factory overmolding means every M25 Feed-Through Inline Waterproof Connector arrives as a single integrated unit. You won't spend hours on field wiring. Simply connect and go. This approach reduces installation time and eliminates quality risks from manual assembly errors.
Key Technical Advantages You Can Trust
Superior Material Engineering
The PA66 housing withstands mechanical impact and resists UV degradation. Gold-plated contacts prevent corrosion and maintain low contact resistance over thousands of mating cycles. Your connections stay stable year after year.
Wide Temperature Range
From freezing cold storage facilities at -40℃ to high-heat industrial workshops at +105℃, this connector maintains reliable performance. Thermal cycling tests confirm the housing won't crack or deform under temperature swings.
Flexible Customization
Your project may need specific pin counts, custom cable lengths, or unique exit orientations. We support OEM/ODM customization with over 30 utility model patents backing our engineering capabilities. Whether you need 4-pole or 5-pole configurations, we adapt to your requirements.
Global Compliance
CE, TUV, and RoHS certifications mean you can confidently deploy these connectors in international markets. We've already handled compliance testing, reducing your regulatory burden.
Where You'll Use This Connector
Outdoor LED Lighting Systems
Stadium floodlights and street lighting installations demand connections that survive heavy rain and constant UV exposure. The IP68 rating ensures your lighting networks stay operational through all seasons.
Renewable Energy Projects
Solar PV farms and wind turbine control boxes require feed-through points that maintain enclosure integrity. Our connector handles both power transmission and sensor data lines while resisting vibration-induced loosening.
Industrial Automation Equipment
Manufacturing environments expose electrical connections to dust, moisture, and temperature extremes. The M25 Feed-Through Inline Waterproof Connector keeps your control systems running without interruption.
Marine and Underwater Applications
Pond pumps, aquaculture monitoring systems, and harbor lighting face constant saltwater exposure. Our corrosion-resistant design withstands these demanding conditions.
How We Ensure Quality

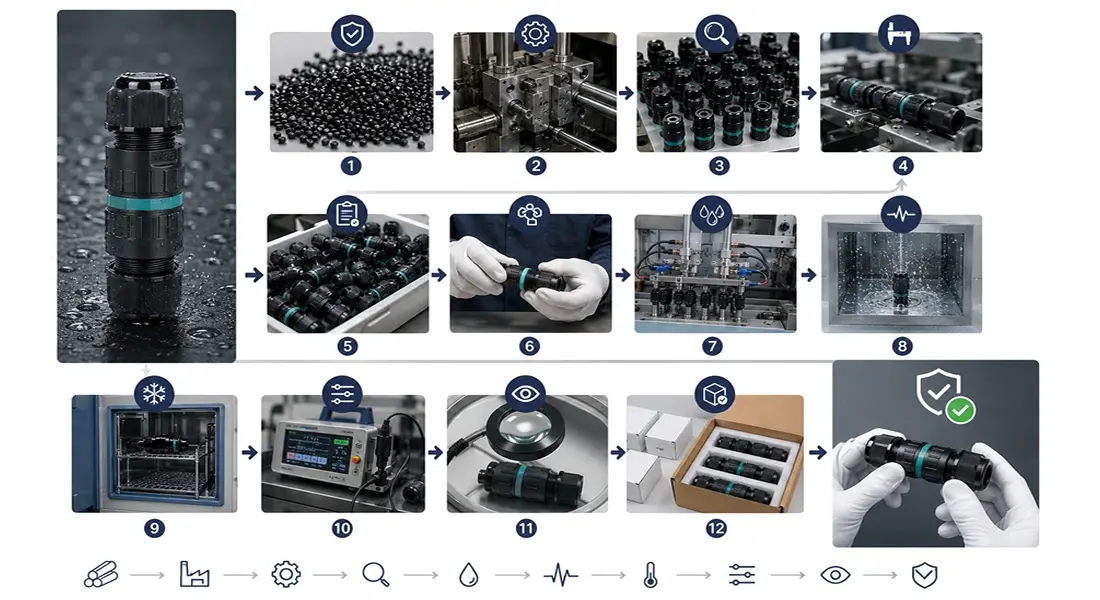

Every connector undergoes rigorous testing before leaving our 6,000㎡ facility:
- IP68 Vacuum Leak Test: 72-hour submersion at specified depths confirms zero moisture ingress
- Salt Spray Test (ASTM B117): Verifies corrosion resistance of metal contacts and housing
- Cable Retention Test: Confirms the connector withstands high tensile forces without seal failure
- Thermal Cycling: Temperature oscillation between -40℃ and +105℃ checks for material expansion cracks
- Dielectric Withstand Voltage: 2500V AC testing ensures no electrical breakdown
Our ISO9001:2015 certified quality management system means 100% inspection for waterproof performance, durability, and electrical reliability. With stable inventory exceeding 10,000 pieces per item, we maintain consistent quality across every production batch.
Frequently Asked Questions
Q: What cable sizes work with this connector?
A: The product obliges cable external distances across from 5mm to 14mm utilizing conversely fixing gaskets. Wire areas extend from 0.5mm² to 2.5mm².
Q: Can I reuse the connector after disconnection?
A: Yes. The mechanical locking plan permits different mating cycles. Review O-rings amid reinstallation to guarantee fixing astuteness remains intact.
Q: How does it perform in high-vibration environments?
A: The anti-vibration locking component anticipates releasing over time. This makes it reasonable for transportation hardware and mechanical apparatus with consistent movement.
Q: Is underground burial possible?
A: With IP68 assurance, underground establishment works well. We prescribe extra defensive conduit for long-term presentation to soil acidity.
Q: What's the distinction between screw-terminal and push-in versions?
A: Screw-terminals give greatest security for heavy-gauge wiring through torque-based associations. Push-in forms altogether diminish establishment time for standard 2.5mm² cables.
Q: What certifications do these connectors carry?
A: Our connectors comply with CE, TUV, RoHS, and ISO9001:2015 guidelines, guaranteeing security and unwavering quality for worldwide markets.
Why Choose Cablein Technology?
Since 2017, we've fabricated mechanical waterproof connectors in Shenzhen's high-tech fabricating center. Our group of over 200 experts brings 9 a long time of skill to each product.
We keep up productive worldwide coordinations associations with UPS, DHL, and FedEx. Standard orders dispatch inside 7-10 days. Custom ventures get adaptable planning to coordinate your timeline.
Professional specialized back incorporates 24-hour meeting, end-to-end extend help, and responsive after-sales benefit. We offer assistance you select the right connector setup and give direction all through installation.
Take the Next Step
Ready to solve your waterproof connection challenges? Contact us at nick@cableinco.com to discuss your M25 Feed-Through Inline Waterproof Connector requirements, request detailed specifications, or inquire about sample availability.
