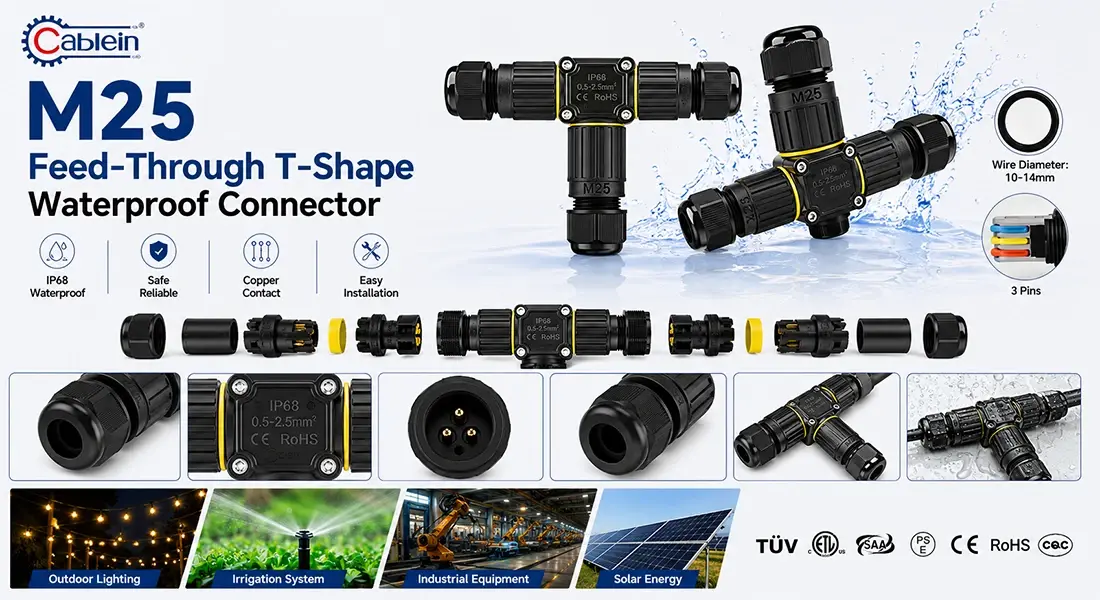

M25 Feed-Through T-Shape Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings.
3. T-shaped three-port design with main cable passing straight through and a branch exiting perpendicularly.
4. Cable and connector are factory overmolded into one piece, ready for use out of the box.
5. CE and TUV certified, compliant with RoHS standards.
6. Operating temperature range from -40℃ to 105℃ for various industrial environments.
7. Technical consultation and quick sampling services are available.
8. Custom options include pin count, branch cable length, and exit orientation.
M25 Feed-Through T-Shape Waterproof Connector – Enterprise-Grade Cable Branching Solution
When your installation demands reliable branching without junction boxes, the M25 Feed-Through T-Shape Waterproof Connector from Cablein Technology delivers. Designed with PA66 nylon lodging and gold-plated copper amalgam contacts, this connector accomplishes IP67/IP68 security over -40℃ to +105℃. Appraised for 250V and 16A with 3-pole arrangement, it obliges cable distances across from 5–14mm and wire areas of 0.5–2.5mm². CE and TUV certified, this one-piece overmolded plan dispenses with discuss spillage dangers whereas empowering fundamental cable coherence with opposite department exits—perfect for open air lighting, buried establishments, and mechanical gear requiring streamlined control distribution.
What Makes This T-Shape Connector Essential?
Traditional junction boxes add bulk, labor, and failure points to your wiring projects. Our M25 Feed-Through T-Shape Waterproof Connector solves these challenges with a compact, field-ready design.
Why choose this solution?
- Space-saving design: No curiously large walled in areas required in tight conduit runs or pole-mounted fixtures
- Labor fetched decrease: Factory-molded gathering implies plug-and-play establishment in minutes
- Superior fixing: One-piece overmolding seals all three cable passages at the same time, blocking dampness entrance way better than multi-component intersection boxes
- Continuous primary line: Feed-through plan keeps your essential cable continuous whereas branching control perpendicularly
The threaded M25 interface provides mechanical strength you can trust, even under vibration or thermal cycling.
Technical Specifications You Can Rely On
Materials & Construction:
- Housing: PA66 nylon with UL94-V0 flame retardancy
- Contacts: Gold-plated copper alloy for low contact resistance
- Seals: High-resilience silicone O-rings maintaining integrity across temperature extremes
Electrical Performance:
- Rated Voltage: 250V
- Rated Current: 16A
- Number of Poles: 3P
- Wire Section: 0.5–2.5mm²
Environmental Resilience:
- IP Rating: IP67/IP68
- Operating Temperature: -40℃ to +105℃

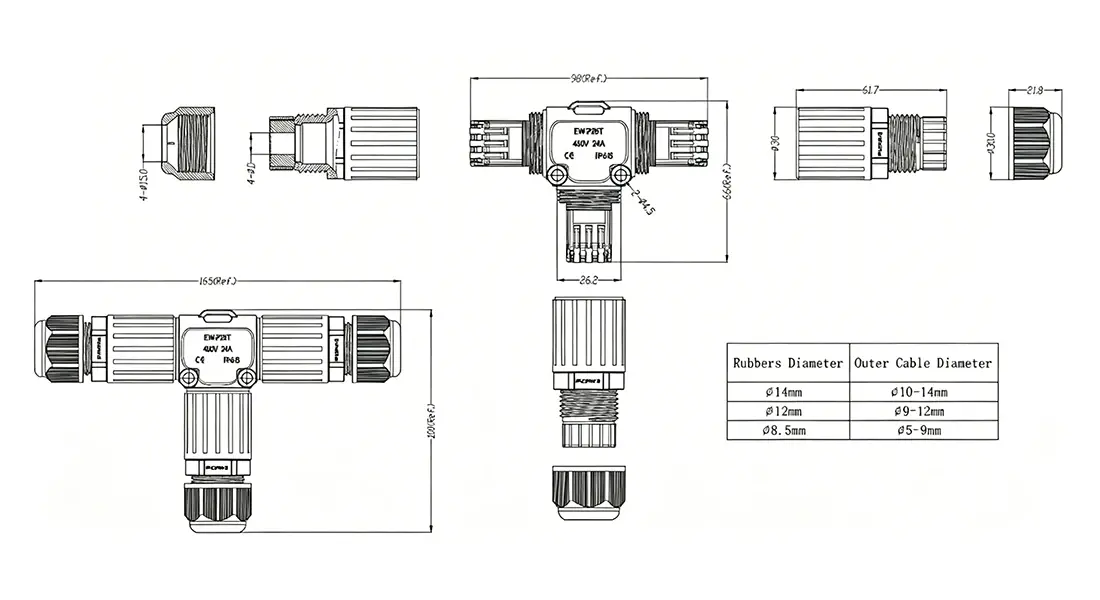

- Cable Diameter Range: 5–9mm / 9–12mm / 10–14mm
Compliance:
- CE, TUV certified
- RoHS compliant
These parameters ensure your connector performs reliably whether exposed to desert heat, coastal salt spray, or sub-zero winters.
Real-World Applications
Urban Lighting Infrastructure:
Connect Driven road lights in arrangement whereas making branches for person shaft installations. The opposite exit streamlines cable administration in tight mounting spaces.
Renewable Vitality Systems:
Parallelize sun powered board yields in housetop clusters or ground-mount establishments. UV-resistant lodging withstands a long time of coordinate daylight without degradation.
Industrial Automation:
Branch control signals or control bolsters in open air apparatus, car wash frameworks, or agrarian hardware uncovered to water planes and dust.
Marine & Offshore:
Distribute control to sensor clusters or route lights in situations where salt shower and submersion are schedule challenges.
No matter your industry, this connector dispenses with the require for bulky, failure-prone intersection boxes.
Key Advantages Over Traditional Solutions
1. Rearranged Installation
Arrive on-site with a ready-to-use, overmolded gathering. No pleating, no sealant tapes, no guesswork.
2. Upgraded Reliability
One-piece development evacuates potential spill ways characteristic in multi-component intersection boxes.
3. Diminished Cable Bending
The T-shape permits common cable steering without sharp twists that can harm separator or strain connections.
4. Customization Flexibility
Need a diverse stick number, department length, or exit point? We offer custom arrangements to coordinate your extend specifications.
5. Long-Term Durability
Silicone seals stand up to UV debasement and stay adaptable over temperature swings, guaranteeing a long time of maintenance-free operation.
Quality Assurance & Testing
Every M25 Feed-Through T-Shape Waterproof Connector undergoes rigorous validation:
- Hermeticity Testing: Water inundation at 2 meters for 48 hours to confirm IP68 compliance
- Thermal Stun Cycling: Quick temperature moves affirm seal keenness and lodging stability
- Tensile Quality Testing: Cable organs withstand standardized drag strengths without displacement
- Dielectric Withstand Voltage: Tried past 2500V to avoid electrical breakdown
- Salt Splash Testing: 96-hour ASTM B117 presentation guarantees erosion resistance in coastal environments
Our ISO9001:2015-certified facility performs 100% inspection before shipment, so you receive only connectors that meet strict international standards.
Frequently Asked Questions
Q1: What cable distance across run does this connector support?
A1: It obliges external breadths from 5mm to 14mm through conversely elastic seals, fitting most standard mechanical cables.
Q2: Can I introduce it without uncommon tools?
A2: Yes. The plan employments clear screw terminals or push-in associations for fast field get together. No creasing gear required.
Q3: How does it handle vibration?
A3: The strung M25 shell incorporates an anti-vibration locking component that avoids releasing beneath mechanical stress.
Q4: Is the connector reusable?
A4: Completely. As long as silicone seals stay undamaged, you can dismantle and reconnect. Continuously review seals some time recently reuse.
Q5: Does it meet universal security standards?
A5: Yes. Our connectors carry CE, TUV, and RoHS certifications, guaranteeing compliance over worldwide markets.
Q6: What's the lead time for custom configurations?
A6: Standard models transport in 7–10 days. Custom orders ordinarily require 2–3 weeks depending on determination complexity.
Why Partner With Cablein Technology?
Since 2017, we've specialized in mechanical waterproof interconnection arrangements from our 6,000㎡ office in Shenzhen. With over 30 utility demonstrate licenses and a group of 200+ experts, we deliver:
- Proven Expertise: 9 years serving LED lighting, renewable energy, marine, and automation industries
- Flexible Manufacturing: Support for OEM/ODM projects and private mold development
- Global Logistics: Partnerships with UPS, DHL, and FedEx for reliable worldwide shipping
- Responsive Support: 24-hour technical assistance and project consultation
Our stable inventory of 10,000+ pieces per item ensures you won't face supply chain delays.
Ready to Simplify Your Wiring Projects?
The M25 Feed-Through T-Shape Waterproof Connector eliminates junction box complexity while delivering IP68 protection and field-proven reliability. Contact nick@cableinco.com to request technical specifications, discuss custom configurations, or arrange sample evaluation. Let's confirm how this solution fits your project requirements.
